MH 1-Z

¼ λ Mobile Antenna for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MH 1-Z

Quickly identify the correct ordering code.

MH 1-Z
Electrical
Model MH 1-Z
Frequency Tunable by cutting within : 144…175 MHz
(Also applicable : 175…480 MHz)
Antenna Type Mobile whip antenna
Max. Input Power 150 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3 @ f.res.
Bandwidth ≥ 15 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Conical glass fiber or stainless steel
Chromed brass
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ±1 Nm
Colour Bright or black, see below mounts
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 530 mm / 20.90 in.
Weight Z-version: Approx. 150 g
ZP4-version: Approx. 300 g
Mounting 21 mm dia. hole
(For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • Sturdy, general-purpose ¼ λ antenna in professional quality.

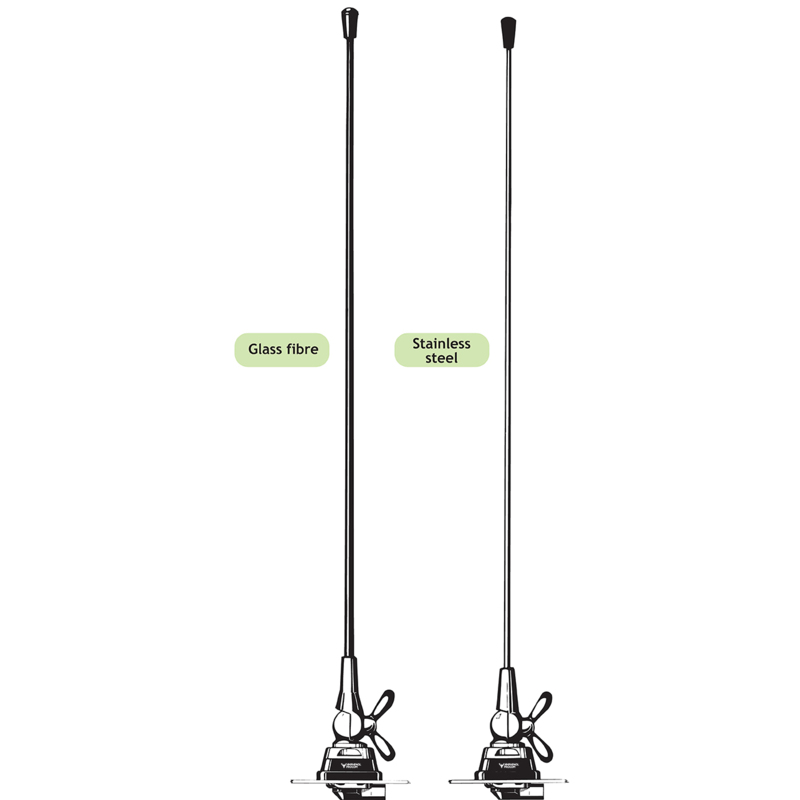

  • Available with glass fiber or stainless steel whip.
  • Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
  • Available with bright or black-chromed metal parts (mount and whip):
  • MH 1-Z…: Bright version
  • MH 1-BZ…: Black version
  • Simple mounting exclusively with access from the outside.
  • Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • Choice between two connection principles:
  • Z-mount: FME-connection (supplied without cable).
  • ZP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MH 1-BZP4

 130000716 BZP4-mount with 4 m cable + FME-connector BLACK Glassfibre Whip

MH 1-Z

 130000714 Z-mount with FME-system BRIGHT Glassfibre Whip

MH 1-ZP4

 130000715 ZP4-mount with 4 m cable + FME-connector BRIGHT Glassfibre Whip

MH 1-BZ

 130000719 Z-mount with FME-system BLACK Glassfibre Whip

MH 1-BZP4R

 130000717 BZP4-mount with 4 m cable + FME-connector BLACK Stainless Steel Whip

MH 1-ZR

 130000720 Z-mount with FME-system BRIGHT Stainless Steel Whip

MH 1-ZP4R

 130000721 ZP4-mount with 4 m cable + FME-connector BRIGHT Stainless Steel Whip

MH 1-BZR

 130000725 Z-mount with FME-system BLACK Stainless Steel Whip

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Z-BZ-ZP4-BZP4-Mount-GB

Kupolskruer-blank-sort-m-tekst-GB

Installation

This antenna is provided with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the BZ-mount is equally well suited for mounting on e.g. trunk or wing.

1. Installation Dimension

Z Mount 21 22 38 GB

2. Installation Steps

Z-Mount-inst-step-samlet-GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna should always be tuned using an VSWR-meter.
The cutting diagrams below serve as a guide for this procedure.

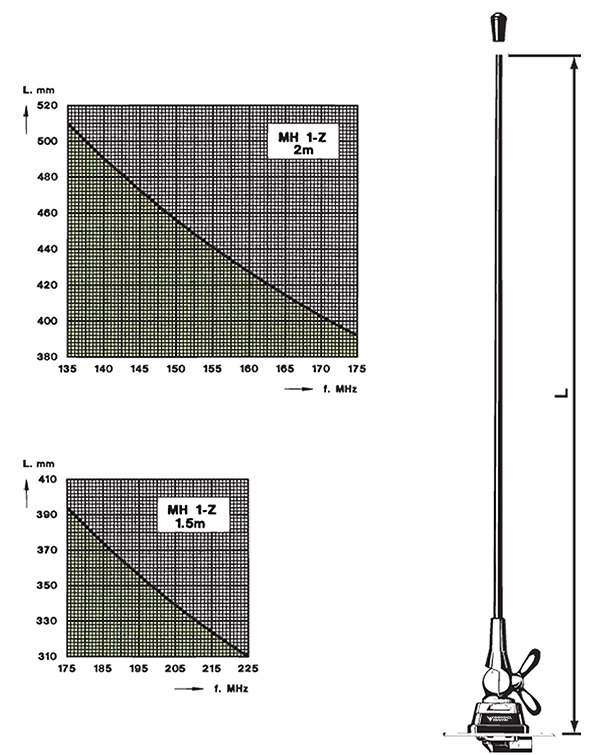

Glass Fibre Whip Glass

  MH 1 Z 2m 1.5m cut

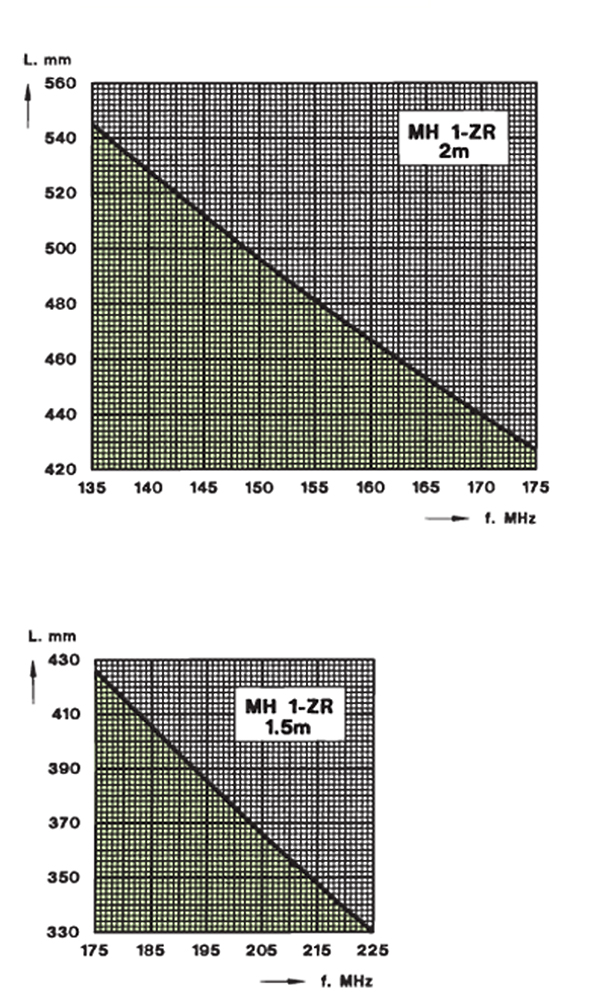

Stainless Steel Whip

MH 1 ZR 2m 1.5m cut
