MH 3-Z

⅝ λ Mobile Antenna with Shock Spring for the 160 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MH 3-Z

Quickly identify the correct ordering code.

MH 3-Z
Electrical
Model MH 3-Z
Frequency Tunable by cutting within : 144-175 MHz
Antenna Type Mobile whip antenna
Max. Input Power 150 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f.res.
Bandwidth 4 – 5 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 3 dB
Mechanical
Materials Whip : Conical glass fiber or stainless steel
Chromed brass
Spring : Stainless steel
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ±1 Nm
Colour Bright or black, see above
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 1380 mm / 54.33 in.
Weight Z-version : Approx. 360 g / 0.80 lb.
ZP4-version : Approx. 510 g / 1.12 lb.
Mounting 21mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22mm dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • Sturdy, 3 dB gain, ⅝ λ antenna in professional quality.
  • Available with glass fiber or stainless steel whip.
  • Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
  • Available with bright or black-chromed metal parts (mount and whip):
  • MH 3-Z…: Bright version
  • MH 3-BZ…: Black version
  • Simple mounting exclusively with access from the outside.
  • Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • Choice between two connection principles:
  • Z-mount: FME-connection (supplied without cable).
  • ZP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MH 3-Z

 130000743 Z-mount with FME-system BRIGHT Glassfibre Whip

MH 3-ZR

 130000751 Z-mount with FME-system BRIGHT Stainless Steel Whip

MH 3-BZP4

 130000746 BZP4-mount with 4 m cable + FME-connector BLACK Glassfibre Whip

MH 3-BZP4R

 130000752 BZP4-mount with 4 m cable + FME-connector BLACK Stainless Steel Whip

MH 3-ZP4

 130000745 ZP4-mount with 4 m cable + FME-connector BRIGHT Glassfibre Whip

MH 3-ZP4R

 130000753 ZP4-mount with 4 m cable + FME-connector BRIGHT Stainless Steel Whip

MH 3-BZ

 130000747 BZ-mount with FME-system BLACK Glassfibre Whip

MH 3-BZR

 130000758 BZ-mount with FME-system BLACK Stainless Steel Whip

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Z-BZ-ZP4-BZP4-Mount-GB

Kupolskruer-blank-sort-m-tekst-GB

Installation

This antenna is provided with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.

However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

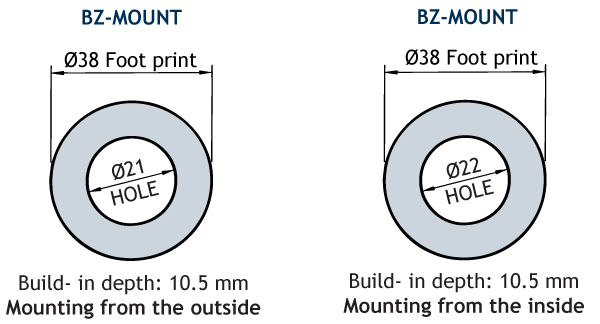

1. Installation Dimension

2. Installation Steps

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna should always be tuned using an VSWR-meter.

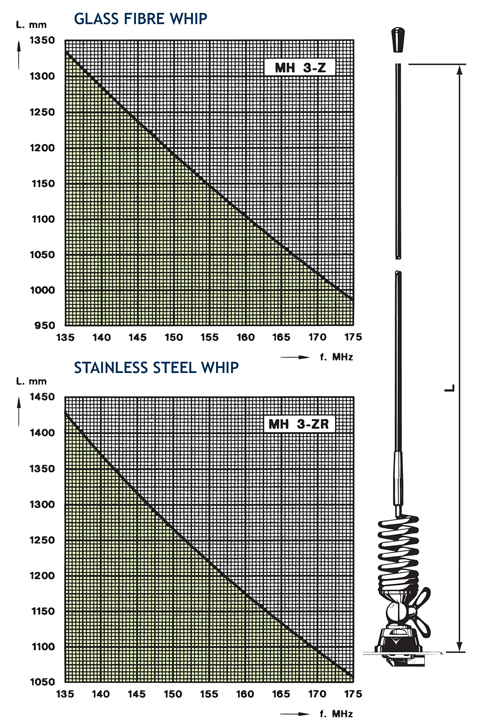

The cutting diagrams below serve as a guide for this procedure.
