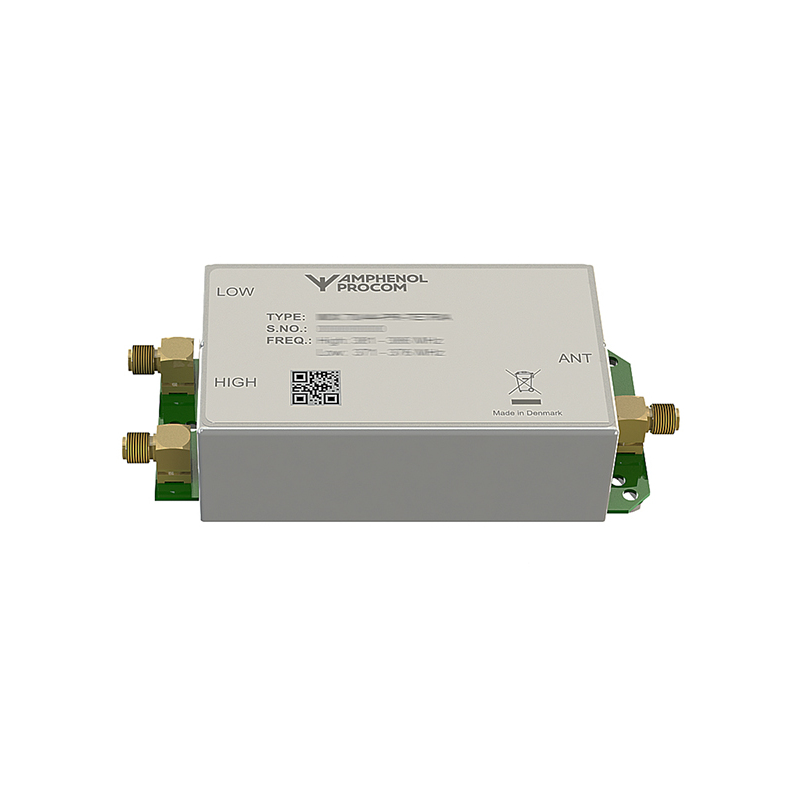

Ultra-compact built-in type Duplexer for UHF band
Find Out MoreOther Files
| Electrical | |
| Model | MIX 370/44 |
|---|---|
| Frequency | Low : 371 – 376 MHz High : 381 – 386 MHz |
| Max. Input Power | 25 W |
| Pass Band Insertion Loss | ≤ 2.0 dB (typ. 1.8 dB) |
| Impedance | 50 Ω |
| VSWR | < 1.5:1 |
| Stop Band Attenuation | > 60 dB |
| Environmental | |
| Operating temperature range | -30 °C to +60 °C |
|---|---|
| Mechanical | |
| Connection(s) | SMA(f) |
|---|---|
| Historic Brand | Amphenol Procom |
| Dimensions | Approx. 116 (incl. conn.) x 51 x 27 mm / 4.57 (incl. conn.) x 2.01 x 1.06 in. |
| Weight | Approx. 0.12 kg / 0.26 lb. |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Ultra-compact built-in type Duplexer for UHF band | 200002834 |
You need to be logged in into your account to view downloadable documents.
These filters can be delivered with other connector types on request:
– MCX angle
– MCX straight
The HYTERA cable kit is used for mounting the duplexer inside the HYTERA RD 965 repeater. It consist of 3 cables. A manual for mounting the duplexer is provided with the kit.
