ML 1-Z

¼ λ Mobile Antenna with Shock Spring for the 80 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ML 1-Z

Quickly identify the correct ordering code.

ML 1-Z
Electrical
Model ML 1-Z
Frequency Tunable by cutting within : 66 – 88 MHz
(Also applicable : 88 – 175 MHz)
Antenna Type ¼ λ mobile whip antenna
Max. Input Power 250 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f. res.
Bandwidth ≥ 8 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical

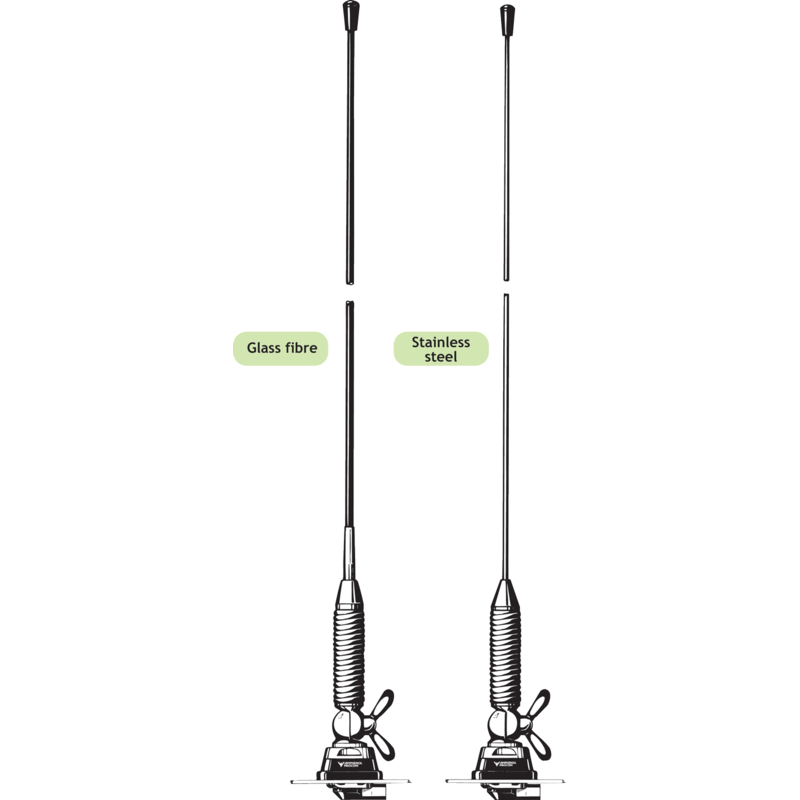

Materials Whip : Conical glass fiber or Stainless steel
Chromed brass
Spring : Stainless steel
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ±1 Nm
Colour Black or bright, see mount variant
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 1100 mm / 43.31 in.
Weight Z-version : Approx. 250 g / 0.55 lb.
ZP4-version : Approx. 400 g / 0.88
Mounting 21 mm / 0.83 in. dia. hole
(For roof thickness 2 mm / 0.08 in. up to 7.5 mm / 0.30 in. mounting hole should be 22 mm dia.)
Mounting Plate Thickness Max. 2.0 mm (Models up to 7.5 mm on request)
  • Sturdy, general-purpose ¼ λ antenna in professional quality.
  • Available with glass fiber or stainless steel whip.
  • Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
  • Available with bright or black-chromed metal parts (mount and whip):
  • ML 1-Z…: Bright version
  • ML 1-BZ…: Black version
  • Simple mounting exclusively with access from the outside. Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • Choice between two connection principles: Z-mount:
  • FME-connection (supplied without cable)
  • ZP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

ML 1-ZR

 130000616 Z-mount with FME-system BRIGHT Stainless Steel Whip

ML 1-BZR

 130000621 BZ-mount with FME-system BLACK Stainless Steel Whip

ML 1-ZP4R

 130000618 ZP4-mount with 4 m cable and FME-connector BRIGHT Stainless Steel Whip

ML 1-BZP4R

 130000622 BZP4-mount with 4 m cable and FME-connector BLACK Stainless Steel Whip

ML 1-Z

 130000605 Z-mount with FME-system BRIGHT Glassfibre Whip

ML 1-BZ

 130000606 BZ-mount with FME-system BLACK Glassfibre Whip

ML 1-ZP4

 130000607 ZP4-mount with 4 m cable and FME-connector BRIGHT Glassfibre Whip

ML 1-BZP4

 130000608 BZP4-mount with 4 m cable and FME-connector BLACK Glassfibre Whip

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Z-BZ-ZP4-BZP4-Mount-GB

Kupolskruer-blank-sort-m-tekst-GB

Installation

This antenna is supplied with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

1. Installation Dimension

Z Mount 21 22 38 GB

2. Installation Steps

Z-Mount-inst-step-samlet-GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna should always be tuned using an VSWR-meter.
The cutting diagrams below serve as a guide for this procedure.

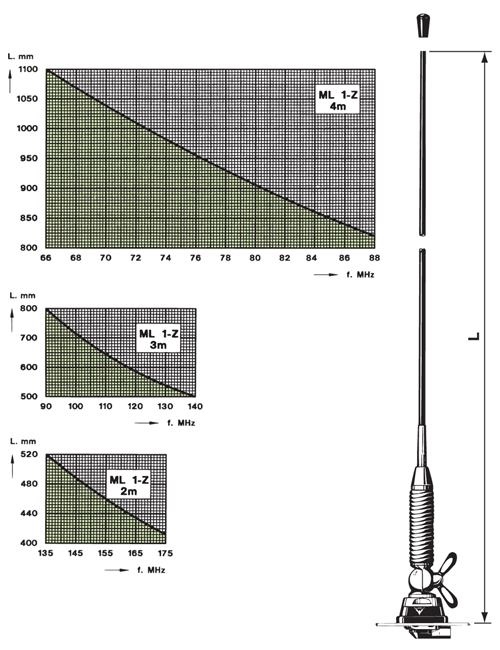

GLASS FIBRE WHIP

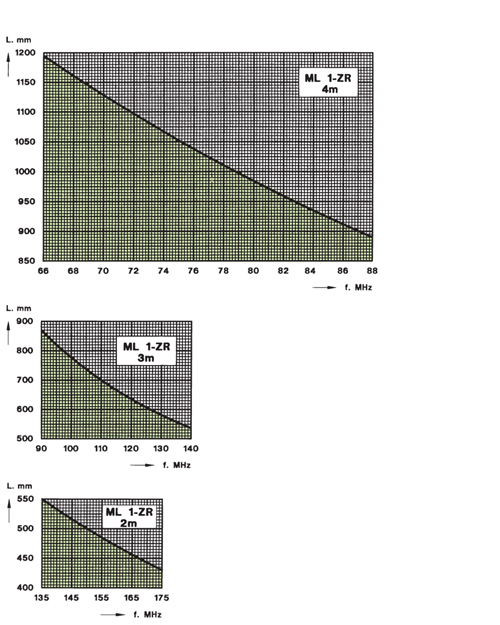

STAINLESS STEEL WHIP
