ML 1-ZR/160/BBMU/…

160 MHz 2 dB Mobile Antenna for Glass Fibre Roof

Find Out More
Data Sheet
CE Certification

Other Files

ML 1-ZR/160/BBMU/...
Electrical
Model ML 1-ZR/160/BBMU/…
Frequency Tunable within 144 – 175 MHz
Antenna Type Mobile whip antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f. res.
Bandwidth ≥ 4 MHz @ VSWR ≤ 2.0
≥ 6 MHz @ VSWR ≤ 3.0
Gain (EIA RS-329-1) 2 dB
Mechanical
Materials Whip : Stainless steel, Chromed brass
Spring : Stainless steel
Mount : Chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ±1 Nm
Colour Bright/black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Dimensions Antenna : Approx. 800 mm
Matching unit : 50 x 50 x 20 mm
FME junction cable : 100 mm
Mounting 21 mm dia. hole (For roof thickness 2 mm up to 7.5 mm mounting hole should be 22 mm dia.)
Mounting Plate Thickness 0.5 – 2 mm and 5 – 7.5 mm respectively depending on mounting ring
  • Sturdy ½ λ mobile antenna in professional industry standard quality.
  • Groundplane independent antenna for mounting on non-conducting surfaces.
  • Ideal for glass fibre roofs as can be found on some trucks, lorries, transport vans, busses and farm machinery.
  • The ML 1-ZR/160/BBMU/… can be tuned from 144 – 175 MHz via the adapter box.
  • Necessary cable length between the adapter box and the mount:
  • 100 mm (FME junction cable included).
  • Simple mounting exclusively with access from the outside. Models with roof thickness from 2 mm to 7.5 mm mounting from the inside.
  • FME antenna cable can be mounted directly in the adapter box.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
160 MHz 2 dB Mobile Antenna for Glass Fibre Roof 130000627

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Installation

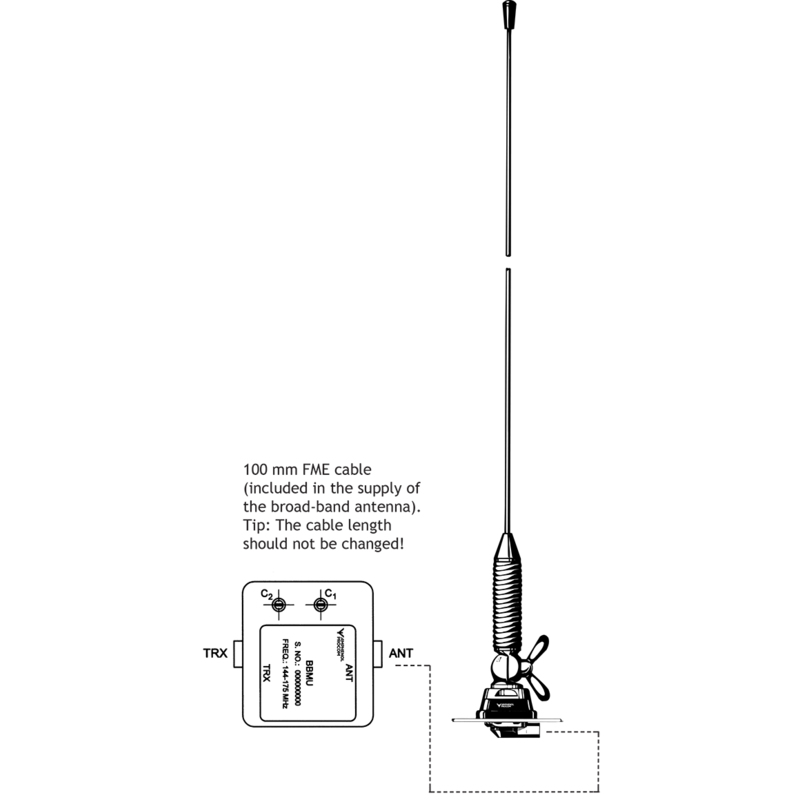

  1. Mount and adapter box to be connected by means of the 100 mm junction cable included in the supply.
  2. Connect the FME cable for the radio station to the adapter box.

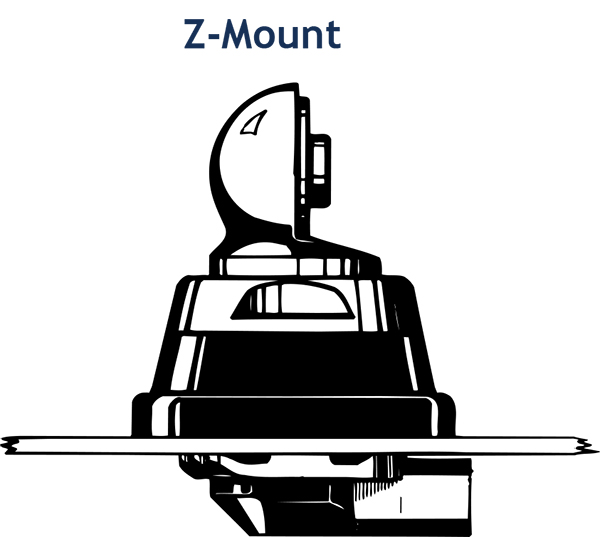

  3. The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.

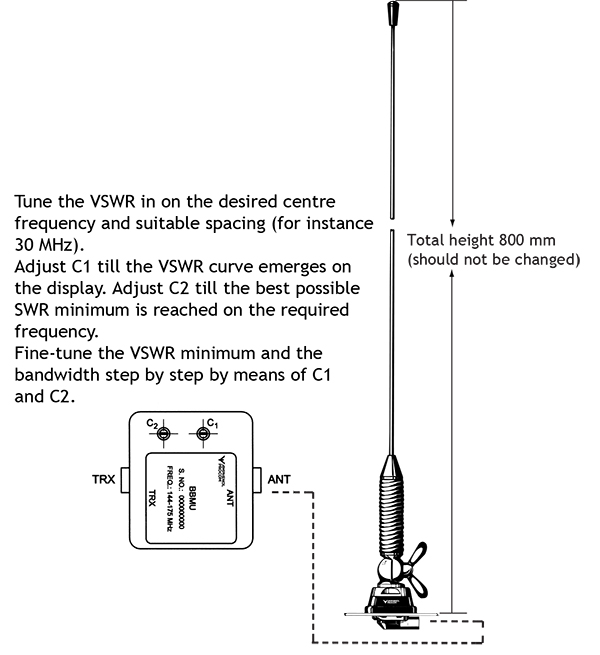

  4. Adjust the frequency by means of an VSWR-analyzer via C1 and C2 on the adapter box.
1. Installation Dimension

BZ-Mount-21-22-38-GB

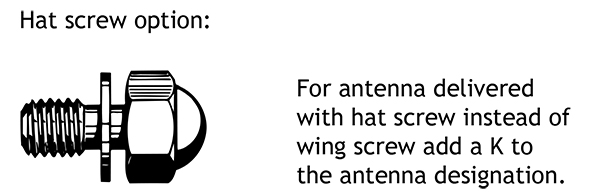

2. Installation Steps

Z Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

VSWR 4000 Analyser with built-in signal generator and graphic display range of measurement 30-2700 MHz
