ML 2-XR

¼ λ Mobile Antenne for the 80 MHz Band – Tunable op to 175 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ML 2-XR

Quickly identify the correct ordering code.

ML 2-XR
Electrical
Model ML 2-XR
Frequency Tunable by cutting within : 66 – 175 MHz
Antenna Type Mobile whip antenna
Max. Input Power 250 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f.res.
Bandwidth ≥ 10% of f.res. @ VSWR ≤ 2.0
≥ 15% of f.res. @ VSWR ≤ 2.5
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed, conical stainless steel
Black-chromed brass
Mount : Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 1300 mm / 51.18 in.
Weight X-version : Approx. 80 g / 0.18 lb.
XP4-version : Approx. 240 g / 0.53 lb.
Mounting 18 mm / 0.71 in. dia. hole
  • Black-chromed, conical stainless steel whip.
  • Elegant transition between whip and mounting surface due to slim-line mount.
  • 30° tiltable whip.
  • Ideal for installation on the narrow strip on rear wing between trunk lid and side of car.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong) and CX-mount (circular).
  • Choice between two connection principles:
  • X-mount: FME-connection (supplied without cable).
  • XP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

ML 2-XR

 130000632 X-mount (oblong) with FME-system

ML 2-CXR

 130000633 CX-mount with FME-system (circular)

ML 2-XP4R

 130000634 XP4-mount with 4 m cable and FME-connector (oblong)

ML 2-CXP4R

 130000635 CXP4-mount with 4 m cable and FME-connector (circular)

ML 2-XR/118-137

 130002350 X-mount (oblong) with FME-system

ML 2-CXR/118-137

 130002351 CX-mount with FME-system (circular)

ML 2-XP4R/118-137

 130002352 XP4-mount with 4 m cable and FME-connector (oblong)

ML 2-CXP4R/118-137

 130002353 CXP4-mount with 4 m cable and FME-connector (circular)

Login required

You need to be logged in into your account to view downloadable documents.

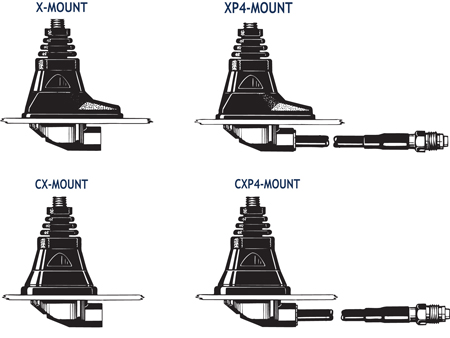

The whip is compatible with all below mounts

Installation

This antenna can be mounted anywhere on the vehicle.

The oblong X-mount is especially suited for mounting on the often very narrow strip on the rear wing between the trunk lid and the side of the car.

Mounting can take place exclusively with access frome the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.

When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.

As the mount is internally equipped with a bendable section, the antenna can always be adjusted to an upright position independent of the tilt angle of the installation spot (up to 30° tilt).

1. Installation Dimensions

2. Installation Steps

X CX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

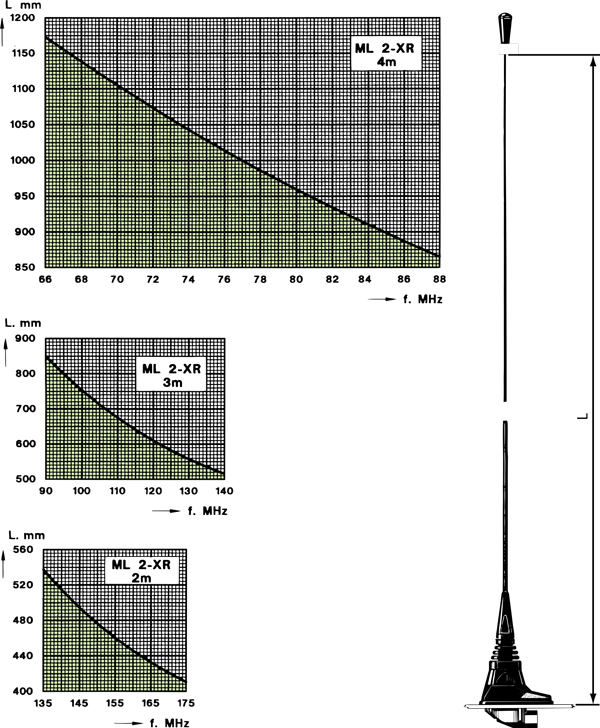

3. Tuning

The antenna should always be tuned using an VSWR-meter.
The cutting diagrams below serve as a guide for this procedure.
