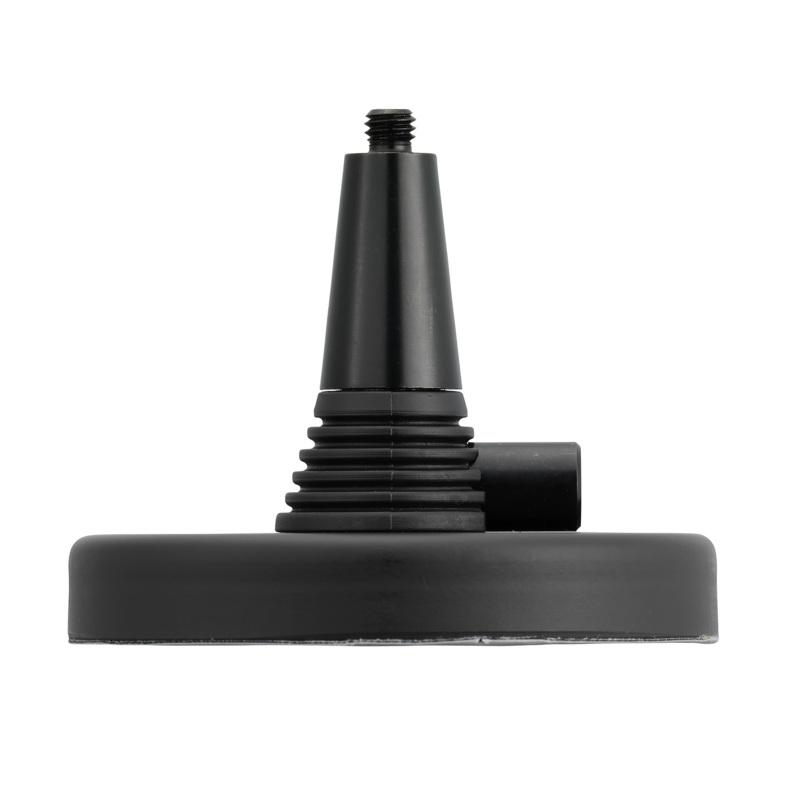

MM-Mount - MiniMag
Electrical
Frequency 135 – 1000 MHz
Application Magnetic mount for all X-type mobile antenna whips shorter than 60 cm
Mechanical
Connection(s) FME system
Materials Black chromed brass, Environment-proof plastics, Electrostatic powder laquer
Colour Black
Historic Brand Amphenol Procom
Dimensions Total height : Approx. 59 mm / 2.32 in.
Diameter : 72 mm / 2.83 in.
Whip Connection M6 thread stud
Weight Approx. 0.27 kg / 0.60 lb.
Mounting Centre of vehicle roof for best omnidrectionalcoverage
Max. Car Speed Depending on whip height. See curve below
  • Small, low-profile magnetic mount intended to carry short mobile antenna whips (height below 60 cm).
  • Full compatibility with the X-mount, i.e. all X-type whips can be used on the MM-Mount.
  • Provided with FME connecting system (FME-cable must be ordered separately).
  • Silicone layer on contact surface protects the car roof and ensures maximum friction.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Miniature Magnetic Mount for Mobile Antenna Whips 130000351

Login required

You need to be logged in into your account to view downloadable documents.

FME-System Accessories – Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories in our catalogue.

Ordering Designation Note
ORDERING
Generally Order this magnetic base by simply asking for MM-Mount. (FME-cable and FME-connector are ordered separately).
Complete antennas can be ordered –by ordering X-type whips and MM separately, or
–by coding MM-Mount into the antenna designation. (In this case please consult the X-mount leaflet for the particular whip type in question to check if the combination is available).

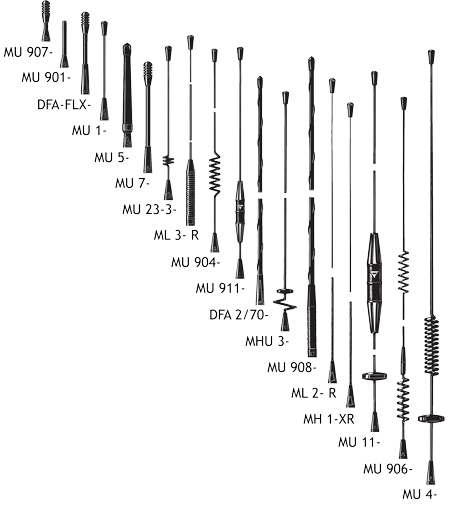

A selection of the various whips which can be connected to the MM-Mount – MiniMag (all shorter than 60 cm)

X CX XG MM Pisk modeller

Using the MiniMag – MM-Mount

This magnetic mount is used to make an occasional antenna installation where it is not desirable to drill holes in the vehicle. A magnetic mount can advantageously serve several vehicles by shifting it from one vehicle to another.The MiniMag is provided with a thoroughly magnetized permanent ring magnet positioned in a carefully shaped magnetic circuit which yields an extraordinarily high attaching effect and makes this mount stand for very high values of bending moment and mechanical shock. A silicone layer applied to the whole contact surface protects the car roof and ensures maximum friction.

Installation

The magnetic mount should be mounted in the middle of the vehicle roof or rear locker to produce best omnidirectional coverage.

TUNING
Below 400 MHz Use the cutting diagram for the corresponding X-mount model using the same type of whip as a guide while using an VSWR-meter to tune the whip.
Above 400 MHz Whips tuned by cutting: Use an VSWR-meter.
Whips tuned with disc: Adjustment diagram accompanies the antenna.

 MM Mount maal large

Please Note

For safety reasons:
Do not operate the MiniMag with antenna whips longer than 60 cm. Please respect the maximum car speed limit corresponding to a particular whip length as appears from the curve on page 1 of this leaflet.
