MP-B/450/…whips

Unity Gain ¼ λ Mobile Antenna whip for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MP-B/450/...whips

Quickly identify the correct ordering code.

MP-B/450/…whips
Electrical
Model MP-B/450/…whips
Frequency MP-B/450/405 MHz whip : 380 – 430 MHz
MP-B/450/445 MHz whip : 420 – 470 MHz
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Silicone tube over flexible bowden wire
Chromed brass
Colour Black
Historic Brand Amphenol Procom
Height Approx. 140 mm / 5.51 in.
Weight Approx. 0.025 kg / 0.06 lb.
Mounting On the ProFin G1 mount and ProFin G2 mount

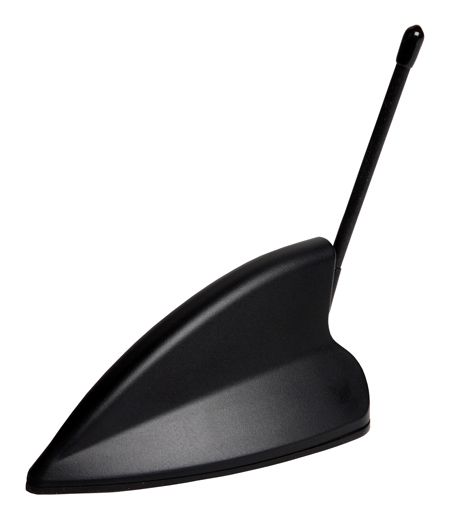

  • External antenna whip mounted on the ProFin mount.

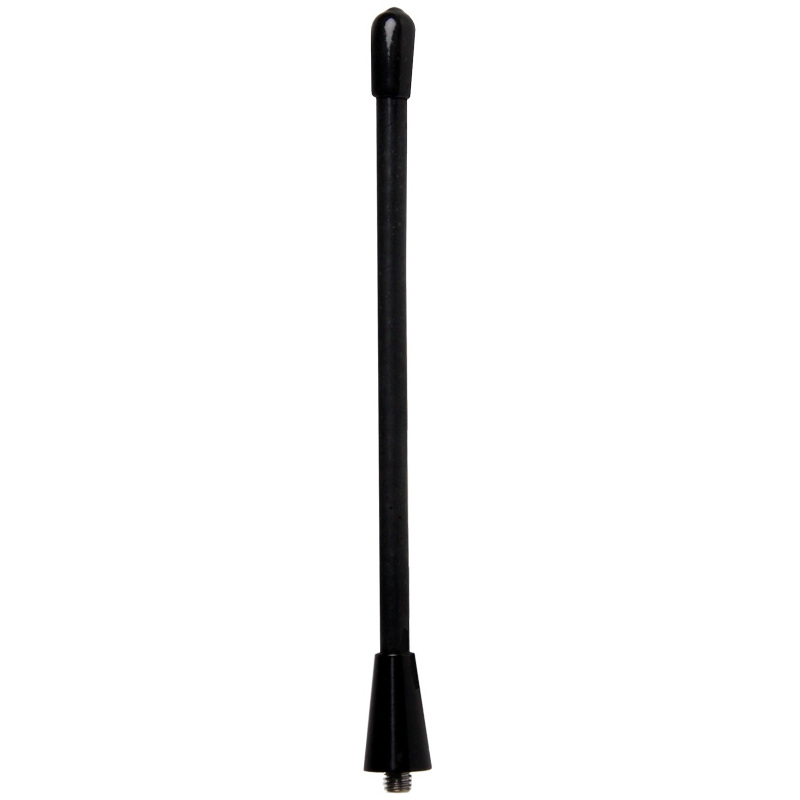

  • Flexible antenna made of steel wire covered with black silicone tubing.
  • Easily removable for car wash.
  • Models within 380 – 470 MHz.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

MP-B/450/405 MHz whip

 132000247 380 – 430 MHz

MP-B/450/445 MHz whip

 132000248 420 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

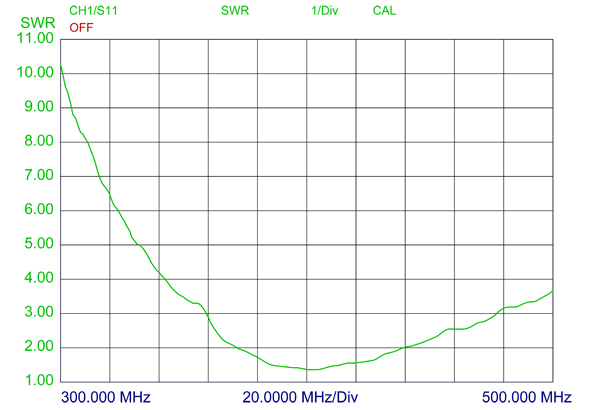

Typical VSWR Curve MP-B/450/405

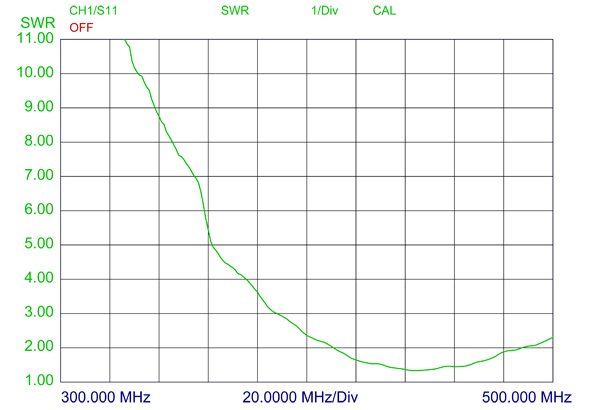

Typical VSWR Curve MP-B/450/445
