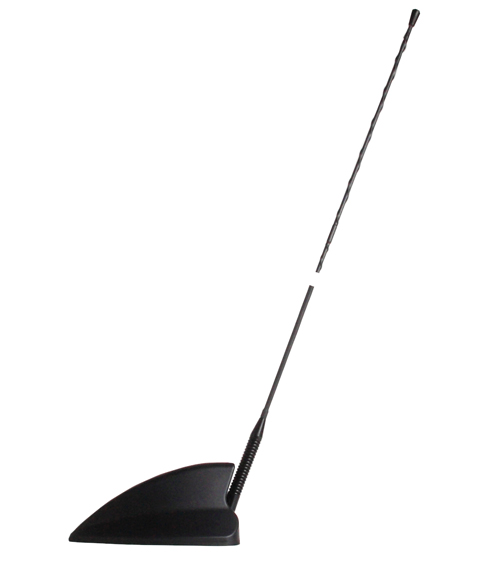

MP-G-S/150/450/FQ whip

Dual band whip with Shock Spring for the 150 MHz and 450 MHz bands

Find Out More
Data Sheet
CE Certification

Other Files

MP-G-S/150/450/FQ whip
Electrical
Model MP-G-S/150/450/FQ
Antenna Type Dual-band ½ λ mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Bandwidth 150 MHz: 8 MHz @ VSWR ≤ 2.0
450 MHz: 15 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 150 MHz: Approx 0 dB
450 MHz: Approx 0 dB
Mechanical
Materials Whip : Polyethylene covered copper thread / glass fibre
Black-chromed brass
Spring : Black-chromed stainless steel
Colour Black
Historic Brand Amphenol Procom
Height Approx. 350 mm / 13.78 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the ProFin G1 mount and ProFin G2 mount
  • External antenna whip mounted on the ProFin mount.
  • When ordering the antenna, please state the centre frequency on each band.
  • Sturdy, general-purpose dual-band ¼ λ antenna in professional quality.
  • Easily removable for car wash.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Dual band whip with Shock Spring for the 150 MHz and 450 MHz bands 132000224

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Note

When ordering the antenna, please state the centre frequency on each band.
* Both to be ordered separately.

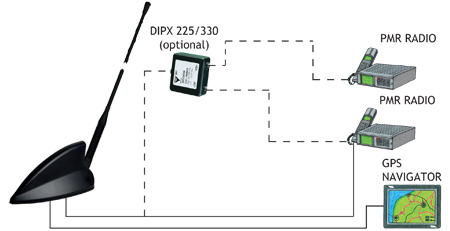

Connection Diagram



Mounting Details
