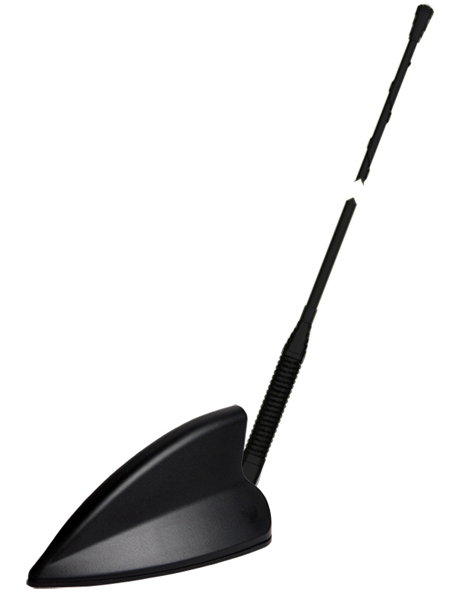

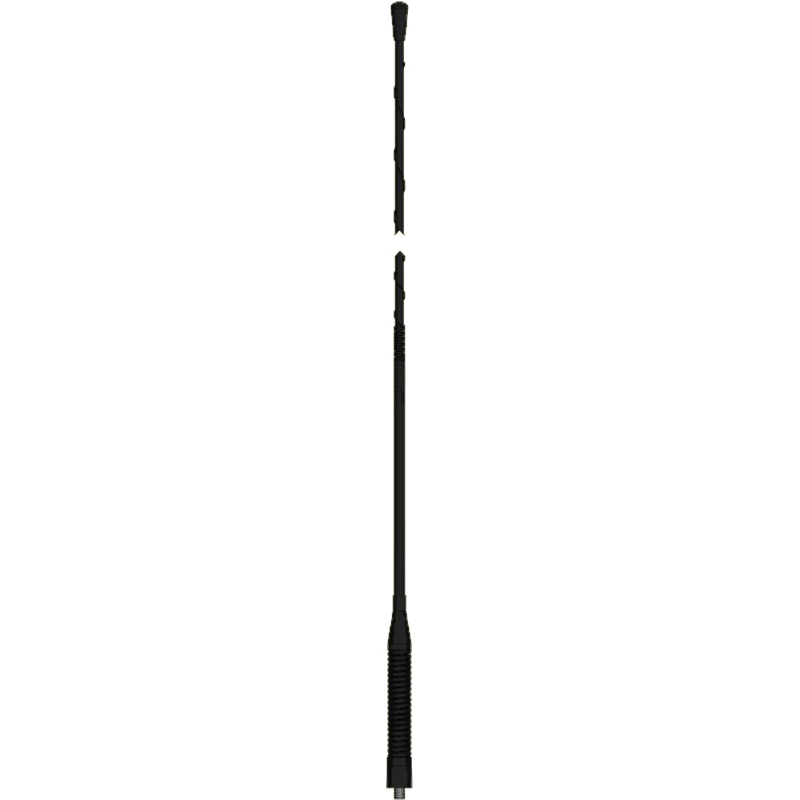

Dual band whip with Shock Spring for the 450 MHz band and FM
Find Out MoreOther Files
| Electrical | |
| Model | MP-G-S/450/FM/… whip |
|---|---|
| Frequency | 380 – 410 MHz 88 – 108 MHz |
| Antenna Type | Dual-band ¼ λ mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Bandwidth | 450 MHz: ≥ 30 MHz @ SWR ≤ 2.0 |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip : Polyethylene covered copper thread / glass fibre Spring : Black-chromed brass Black-chromed stainless steel |
|---|---|
| Colour | Black |
| Historic Brand | Procom |
| Height | Approx. 580 mm / 22.83 in. |
| Weight | Approx. 0.07 kg / 0.15 lb. |
| Mounting | On the ProFin G1 mount and ProFin G2 mount |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Dual band whip with Shock Spring for the 450 MHz band and FM | 132000256 |
