MP-SS-S/150 whip

¼ λ Whip with Shock Spring for the 150 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

MP-SS-S/150 whip
Electrical
Model MP-SS-S/150 whip
Frequency Tunable by cutting within : 144 – 175 MHz
also receives FM band (88 – 108 MHz)
Antenna Type Mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3 @ f.res.
Bandwidth 150 MHz : 10 MHz @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed, concial stainless steel
Spring : Black-chromed brass
Black-chromed stainless steel
Colour Black
Historic Brand Amphenol Procom
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting On the ProFin G1 mount and ProFin G2 mount
  • External antenna whip mounted on the ProFin mount.
  • Also receiving FM-radio when using a Diplexer (LH 108/136-2G).
  • Black-chromed, conical stainless steel whip.
  • Sturdy, general-purpose FM antenna for the 150 MHz Band in professional quality.
  • Easily removable for car wash.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
¼ λ Whip with Shock Spring for the 150 MHz Band 132000245

Login required

You need to be logged in into your account to view downloadable documents.

Ordering Note

Can also be supplied factory-cut for the required frequency (between 144 – 175 MHz).

Mounting Details

Tuning

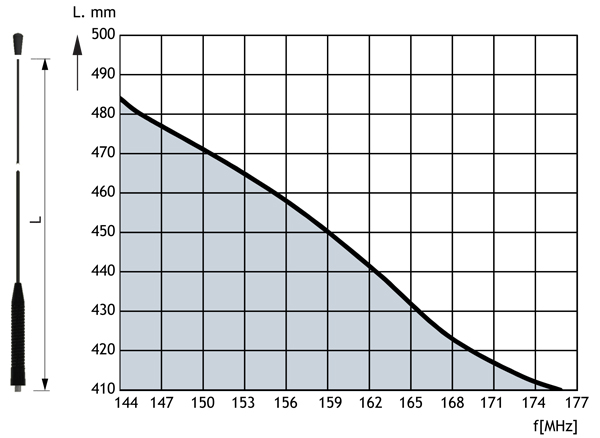

The antenna should always be tuned using an VSWR-meter. The cutting diagram below serves as a guide for this procedure.
