MPX 2/6

6-Resonator Mini-Duplexer for the 160 MHz band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MPX 2/6

Quickly identify the correct ordering code.

MPX 2/6
Electrical
Model MPX 2/6…
Frequency MPX 2/6 L : 138 – 156 MHz
MPX 2/6 H : 152 – 175 MHz
Max. Input Power 50 W
Special spec. info
Single-channel tuned :Multi-channel tuned
BW = 1.5 MHz :
Insertion Loss
< 1.5 dB< 1.5 dB
Isolation Rx on Frequency Tx
> 90 dB> 60 dB
Impedance 50 Ω
Duplex Spacing 4 – 15 MHz (see table)
Tx Noise Suppression on Rx-Freq. / Rx Isolation on Tx-Freq (Col 2) > 60 dB
Tx Noise Suppression on Rx-Freq. / Rx Isolation on Tx-Freq. > 90 dB
VSWR < 1.4:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f) on request)
Historic Brand Amphenol Procom
Dimensions 118.5 x 154 x 33 mm / 4.65 x 6.06 x 1.30 in.
Weight Approx. 0.66 kg / 1.46 lb.

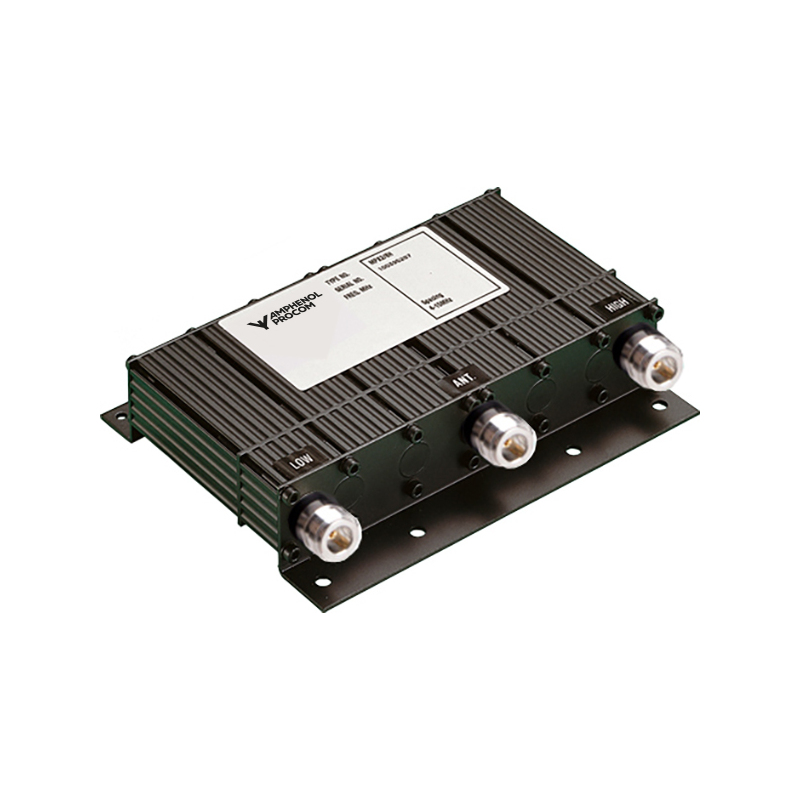

  • The MPX 2/6 is a 6-resonator miniaturized duplex filter for duplex transceivers. This compact “miniplexer” meets the demand for a modern space saving, high performance filter type.
  • Model MPX 2/6 L can be tuned within the band 138-156 MHz and model MPX 2/6 H within the band 152 – 175 MHz, both with duplex spacing between 4 and 15 MHz.
  • The MPX 2/6 is primarily intended for equipment, where the Tx and Rx operate on single frequencies, but it can also, however with slightly reduced data, be used where the Tx and Rx operate on several channels, i.e. within a certain port bandwidth. In the last case, factory tuning is recommended.
  • The miniaturization of the filter has been realized by using special high-Q, temperature compensated helical resonators with discrete-component interconnections.
  • The housing is made of extruded aluminium, and the connectors are provided with teflon insulation.
  • The filter is coated with black vinyl to prevent corrosion.

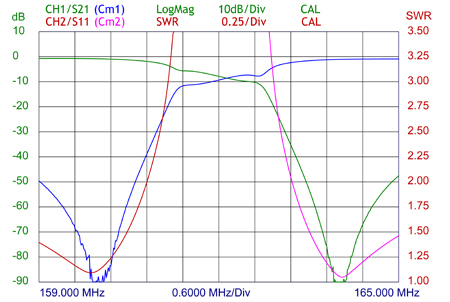

TYPICAL RESPONSE CURVES

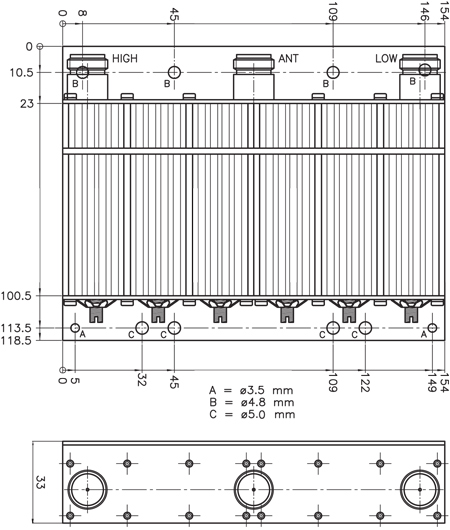

MOUNTING DETAILS

Model Product No. FrequencyAdditional Information Add To Quote

MPX 2/6 L-4/6-N(f)

 200001669 138 – 156 MHz Spacing: 4 – 6 MHz

MPX 2/6 L-6/15-N(f)

 200001632 138 – 156 MHz Spacing: 6 – 15 MHz

MPX 2/6 H-4/6-N(f)

 200001619 152 – 175 MHz Spacing: 4 – 6 MHz

MPX 2/6 H-6/15-N(f)

 200001733 152 – 175 MHz Spacing: 6 – 15 MHz

MPX 2/6 L-4/6-BNC(f)

 200001607 138 – 156 MHz Spacing: 4 – 6 MHz

MPX 2/6 L-6/15-BNC(f)

 200001637 138 – 156 MHz Spacing: 6 – 15 MHz

MPX 2/6 H-4/6-BNC(f)

 200001608 152 – 175 MHz Spacing: 4 – 6 MHz

MPX 2/6 H-6/15-BNC(f)

 200001614 152 – 175 MHz Spacing: 6 – 15 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Please Note

Special configurations of this filter type may be quoted on request. For instance, the filter can be delivered with other connector types or with flying leads (RG 316 coaxial cable) terminated with connectors or for soldering-connection.
