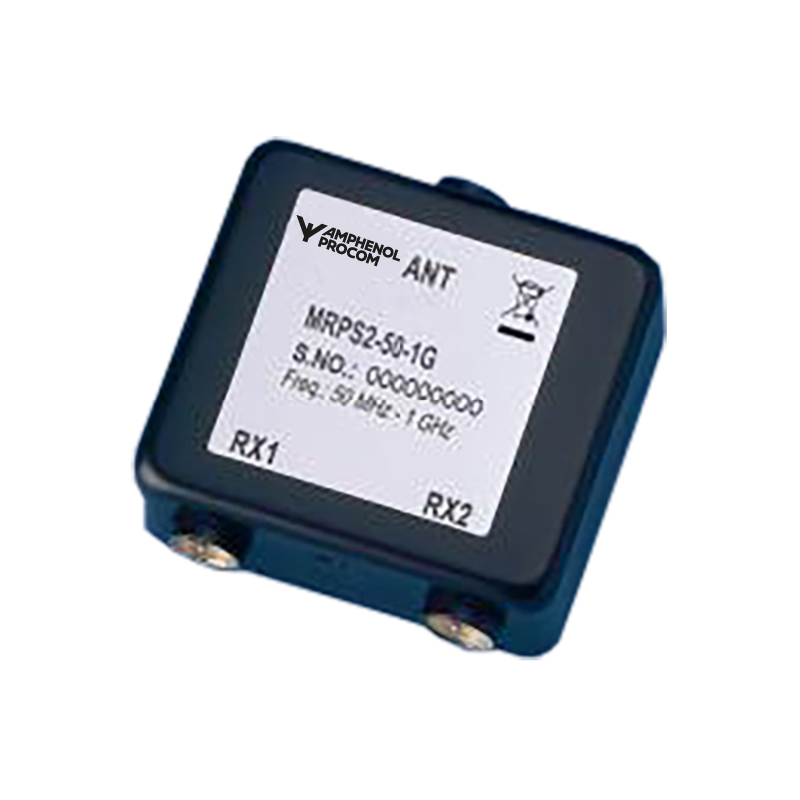

MRPS2-50-1G

Miniature Receiver Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

MRPS2-50-1G
Electrical
Model MRPS2-50-1G
Frequency 50-1000 MHz (0.1-100 MHz as option)
Max. Input Power Max. 1 W per port
Insertion Loss 3.7 dB ± 0.5 dB
Isolation Rx1 – Rx2 Min. 20 dB, typ. > 25 dB
Input VSWR Max. 1.5:1 typ. < 1.4:1
Output VSWR Max. 1.5:1 typ. < 1.4:1
No. of channels 2
Mechanical
Connection(s) FME(m), 3 pcs.
Historic Brand Procom
Dimensions 50 x 50 x 21 mm / 1.97 x 1.97 x 0.83 in.
Weight Approx. 0.065 kg / 0.14 lb.
  • Large frequency range: 50 MHz to 1 GHz.
  • High isolation between outputs: > 20 dB.
  • To be used where RF-signals are to be divided or combined:
    1. more receivers on one coaxial cable
    2. more signal generators on one coaxial cable
    3. spectrum analyzer and receiver on one coax cable.
  • Provided with FME-male connector on input and output.
  • Provided with double sided adhesive tape for easy mounting.
  • Low weight.

ISOLATION OUTPUT-OUTPUT

INSERTION LOSS INPUT-OUTPUT

Model Product No. Add To Quote
Miniature Receiver Power Splitter 200000902
