MRPS2-GPS-…

Miniature Receiver Power Splitter

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MRPS2-GPS-...

Quickly identify the correct ordering code.

MRPS2-GPS-…
Electrical
Model MRPS2-GPS-…
Frequency 1475 – 1675 MHz
Max. Input Power Max. 0.5 W per port
Insertion Loss 3.3 dB ±0.3 dB
Isolation Rx1 – Rx2 Min. 17 dB typ. > 20 dB
Input VSWR Max. 1.5:1 typ. < 1.3:1
Output VSWR Max. 2.0:1 typ. < 1.5:1
DC current Max. 0.25 A
No. of channels 2
Mechanical
Connection(s) FME(m), 3 pcs.
Historic Brand Amphenol Procom
Dimensions 50 x 50 x 21 mm / 1.97 x 1.97 x 0.83 in.
Weight Approx. 0.065 kg / 0.14 lb.

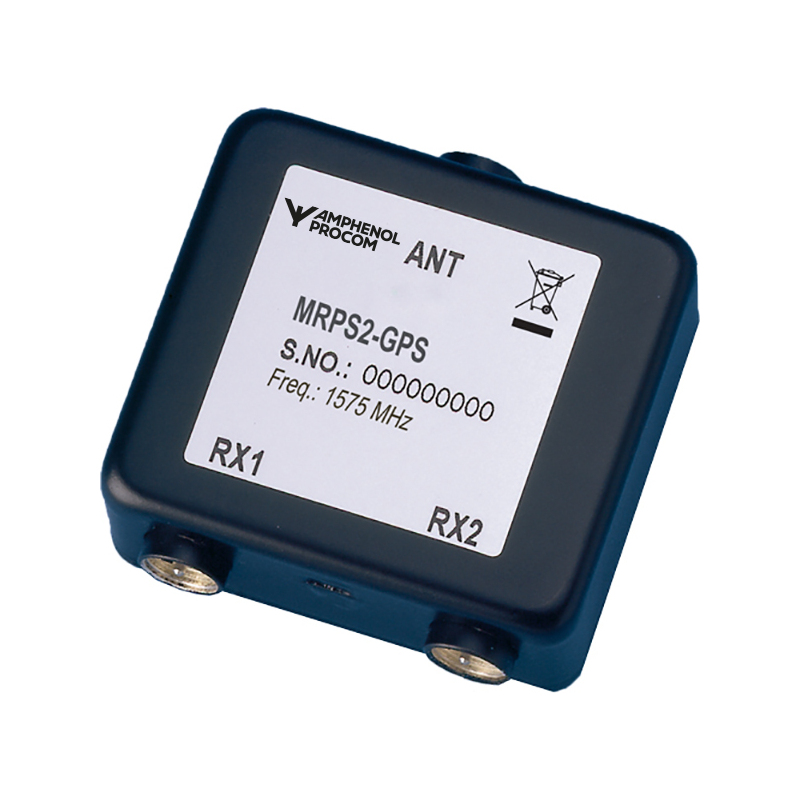

  • Miniature receiver power splitter.
  • Large frequency range: 1475 MHz to 1675 MHz.
  • High isolation between outputs: > 20 dB.
  • To be used where RF-signals, especially GPS-signals, shall be divided or combined:
  • more receivers connected to the same coaxial cable
  • more GPS-antennas on the same coaxial cable
  • spectrum analyzer and GPS-receiver on the same coaxial cable.
  • FME-male on all ports.
  • DC pass from Rx ports to ANT port, see Ordering Designation.
  • Low weight.
  • Two mounting options available:
  • Dual-adhesive pad for quick installation.
  • Mounting brackets with ø3.2 mm holes for screw mounting.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

MRPS2-GPS-2DC

 200001003 DC pass from Rx port 1 to ANT port and from Rx port 2 to ANT port, but NOT from Rx port 1 to Rx port 2

MRPS2-GPS-2DC-M

 200002775 DC pass from Rx port 1 to ANT port and from Rx port 2 to ANT port, but NOT from Rx port 1 to Rx port 2

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Details

Dual-adhesive pad for quick installation

Mounting brackets with ø3.2 mm holes for screw mounting

All dimensions are given in mm.

Typical response curves

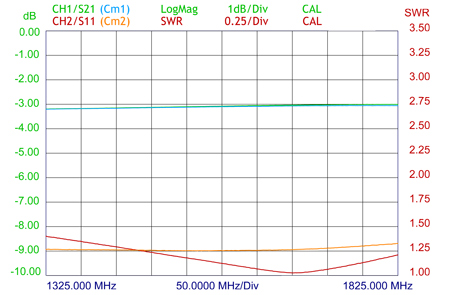

INSERTION LOSS

MRPS2-GPS-swrl-curve

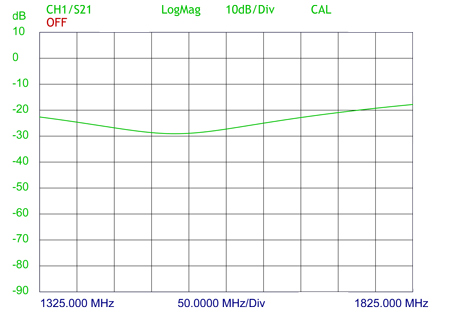

ISOLATION

MRPS2-GPS-isol-curve
