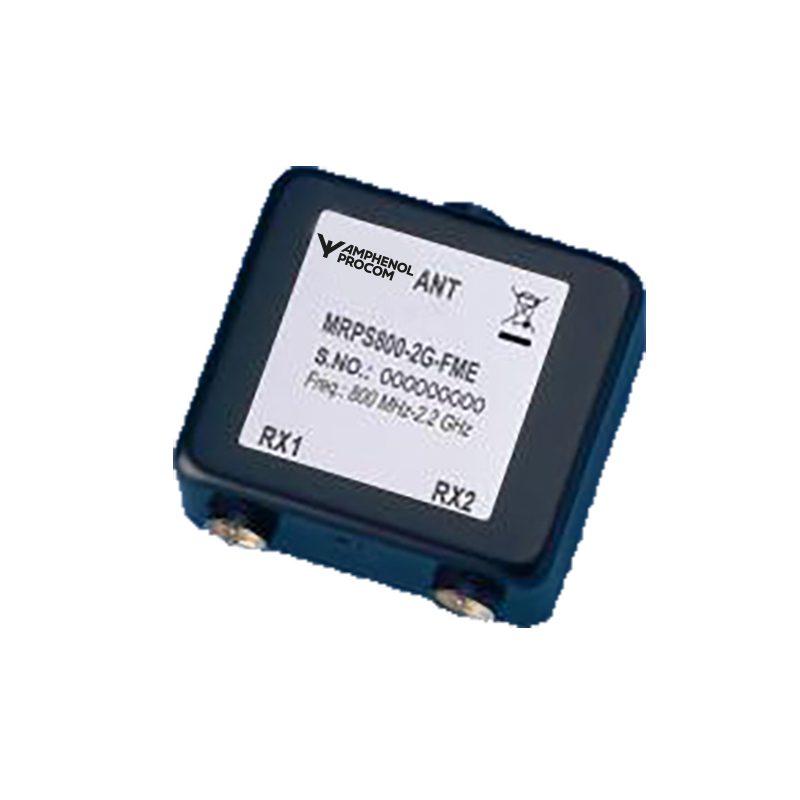

MRPS800-2G-FME

Miniature Receiver Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

MRPS800-2G-FME
Electrical
Model MRPS800-2G-FME
Frequency 800 – 2200 MHz
Max. Input Power Max. 1 W per port
Insertion Loss 3.8 dB ± 0.5 dB
Isolation Rx1 – Rx2 Min. 15 dB typ. > 20 dB
Input VSWR Max. 2.0:1 typ. < 1.5:1
Output VSWR Max. 1.5:1 typ. < 1.3:1
No. of channels 2
Mechanical
Connection(s) FME(m), 3 pcs.
Historic Brand Procom
Dimensions 50 x 50 x 21 mm /
1.97 x 1.97 x 0.83 in.
Weight Approx. 0.065 kg / 0.14 lb.
  • Large frequency range: 800 MHz to 2.2 GHz.
  • High isolation between outputs: > 15 dB.
  • To be used where RF-signals are to be divided or combined:
    1. more receivers on one coaxial cable
    2. more signal generators on one coaxial cable
    3. spectrum analyzer and receiver on one coax cable.
  • Provided with FME-male connector on input and output.
  • Provided with double sided adhesive tape for easy mounting.
  • Low weight.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Miniature Receiver Power Splitter 200001155

Login required

You need to be logged in into your account to view downloadable documents.

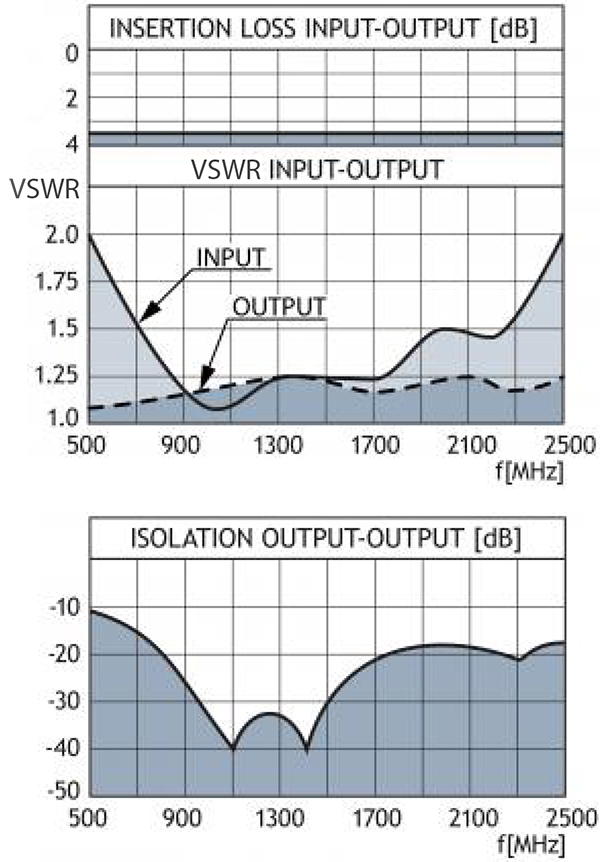

Typical Response Curves

MRPS800 2G FME insloss gb
