MU 1-X/…, MU 1-CX/…, MU 1-XG/…, MU 1-MM/…

Unity Gain ¼ λ Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 1-X/..., MU 1-CX/..., MU 1-XG/..., MU 1-MM/...

Quickly identify the correct ordering code.

MU 1-X/…, MU 1-CX/…, MU 1-XG/…, MU 1-MM/…
Electrical
Model MU 1-X/…, MU 1-CX/…, MU 1-XG/…, MU 1-MM/…
Frequency Models within 370 – 470 MHz
Antenna Type Mobile whip antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.2:1 @ f. res.
Bandwidth ≥ 45 MHz @ VSWR < 1.5
≥ 50 MHz @ VSWR < 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip: Stainless steel and black-chromed brass
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ± 1 Nm
Colour Black
Historic Brand Procom
Antenna Mount Type
Hole MountMagnetic Mount
Height 180 mm / 7.09 in.
Weight X-version: Approx. 60 g
XP4-version: Approx. 200 g
CX-version: Approx. 60 g
CXP4-version: Approx. 200 g
XG-version: Approx. 80 g
XGP4-version: Approx. 220 g
MM-version: Approx. 290 g
  • Black-chromed stainless steel whip.
  • MU 1-X/… cover a large frequency range from 370 – 470 MHz.
  • (See Ordering Designations.)
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong), CX-mount (circular), XG-Combi mount (oblong with GPS) and MM-mount (magnetic).
  • Choose between four connection possibilities:
  • X-mount, CX-mount, MM-mount: FME-connection (supplied without cable).
  • XP4-mount, CXP4-mount: Permanently attached 4 m cable terminated with FME-connector.
  • XG-Combi mount: FME-connection and GPS (supplied without cable).
  • XGP4-Combi mount: Permanently attached 4 m cable terminated with FME-connector for whip and 0.15 m RG 178 with MFME for GPS.
  • Easily removable whip for car wash.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular Polarization (RHCP).
  • 2.85 V – 5 V supply voltage (typical 3 V).

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MU 1-X/s

 130000866 370 – 410 MHz X-mount (oblong) with FME-system

MU 1-X/sl

 130002284 380 – 430 MHz X-mount (oblong) with FME-system

MU 1-X/l

 130000858 406 – 440 MHz X-mount (oblong) with FME-system

MU 1-X/h

 130000862 430 – 470 MHz X-mount (oblong) with FME-system

MU 1-CX/s

 130000867 370 – 410 MHz CX-mount (circular) with FME-system

MU 1-CX/sl

 130002285 380 – 430 MHz CX-mount (circular) with FME-system

MU 1-CX/l

 130000861 406 – 440 MHz CX-mount (circular) with FME-system

MU 1-CX/h

 130000859 430 – 470 MHz CX-mount (circular) with FME-system

MU 1-XG/s

 132000200 370 – 410 MHz XG-Combi mount (oblong) with FME-system and GPS

MU 1-XG/sl

 130002286 380 – 430 MHz XG-Combi mount (oblong) with FME-system and GPS

MU 1-XG/l

 132000201 406 – 440 MHz XG-Combi mount (oblong) with FME-system and GPS

MU 1-XG/h

 132000202 430 – 470 MHz XG-Combi mount (oblong) with FME-system and GPS

MU 1-XP4/s

 130000869 370 – 410 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 1-XP4/sl

 130002287 380 – 430 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 1-XP4/l

 130000855 406 – 440 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 1-XP4/h

 130000857 430 – 470 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 1-CXP4/s

 130000868 370 – 410 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 1-CXP4/sl

 130002288 380 – 430 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 1-CXP4/l

 130000863 406 – 440 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 1-CXP4/h

 130000853 430 – 470 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 1-XGP4/s

 132000205 370 – 410 MHz XGP4-Combi mount (oblong) with 4 m cable, FME-connector and GPS

MU 1-XGP4/sl

 130002289 380 – 430 MHz XGP4-Combi mount (oblong) with 4 m cable, FME-connector and GPS

MU 1-XGP4/l

 132000206 406 – 440 MHz XGP4-Combi mount (oblong) with 4 m cable, FME-connector and GPS

MU 1-MM/s

 130000849 370 – 410 MHz MM-mount (magnetic) with FME-system

MU 1-MM/sl

 130002290 380 – 430 MHz MM-mount (magnetic) with FME-system

MU 1-MM/l

 130000850 406 – 440 MHz MM-mount (magnetic) with FME-system

MU 1-MM/h

 130000851 430 – 470 MHz MM-mount (magnetic) with FME-system

MU 1-XGP4/h

 132000207 430 – 470 MHz XGP4-Combi mount (oblong)

Login required

You need to be logged in into your account to view downloadable documents.

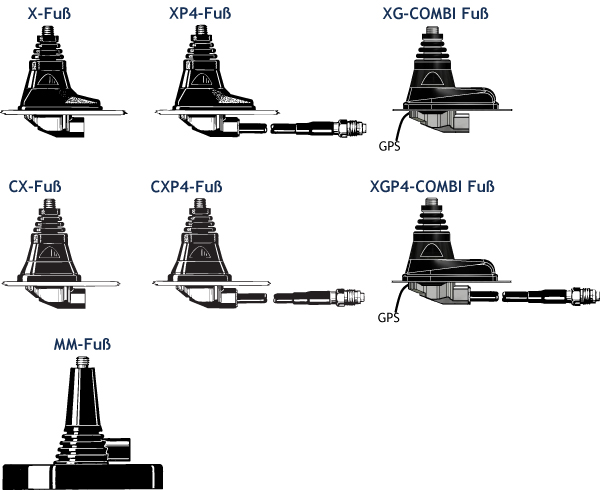

The whip is compatible with all below mounts

Installation and assembly Instructions
  • Please refer to the data sheet of each individual mount to find the installation and assembly instructions.

TUNING/MODEL CONVERSION

  • The antenna is delivered factory-tuned and requires no further tuning.
  • To convert an MU 1-X/s model into an MU 1-X/l model, cut off 15 mm of the top end of the whip.
  • To convert an MU 1-X/l model into an MU 1-X/h model, cut off 11 mm of the top end of the whip.

PLEASE NOTE

  • For safety reasons: When using the MU 1-MM, car speed must not exceed 140 km/h.
