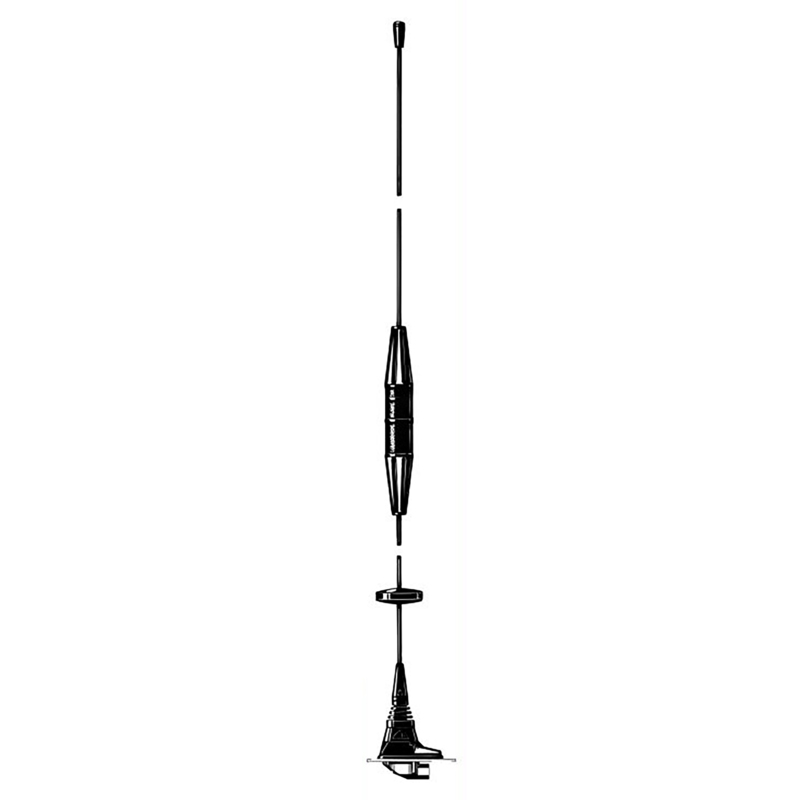

Colinear 4 dB Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 11-X/...

Quickly identify the correct ordering code.

MU 11-X/…
Electrical
Model MU 11-X/…
Frequency 450 MHz-band covered by four models
Antenna Type Collinear stainless steel whip mobile antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3 @ f. res.
Bandwidth ≥ 20 MHz @ VSWR ≤ 1.5
Gain (EIA RS-329-1) 4 dB
Environmental
Ingress Protection IPX5
Mechanical
Materials Whip : Black-chromed stainless steel and brass
Durable plastics
Mount : Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 60 mm / 2.36 in.
Weight X-version: Approx. 160 g / 0.35 lb.
XP4-version: Approx. 300 g / 0.66 lb.
Mounting 18 mm dia. hole
  • Encapsulated phasing coil.
  • Black-chromed, stainless steel whip.
  • Choice between general purpose tunable models.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong) and CX-mount (circular).
  • Choice between two connection principles:
  • X-mount: FME-connection (supplied without cable).
  • XP4-mount: Permanently attached 4 m cable terminated with FME-connector.
  • All whips are compatible with all mounts.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MU 11-CX/f

 130000796 406…430 MHz CX-mount (circular)with FME

MU 11-CXP4/f

 130000798 406…430 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CX/h

 130000800 440…470 MHz CX-mount (circular)with FME

MU 11-CXP4/h

 130000802 440…470 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CX/l

 130001483 420…450 MHz CX-mount (circular)with FME

MU 11-CXP4/l

 130000805 420…450 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CX/CEL1

 130001484 450 – 470 MHz CX-mount (circular)with FME

MU 11-CXP4/CEL1

 130000808 450 – 470 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CXP4/CEL4

 130000811 414 – 430 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CXP4/CEL2

 130000815 440 – 455 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CX/s

 130000814 380…410 MHz CX-mount (circular)with FME

MU 11-CXP4/s

 130000817 380…410 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-CX/CEL4

 130001487 414 – 430 MHz CX-mount (circular)with FME

MU 11-CX/CEL3

 130001486 425 – 440 MHz CX-mount (circular)with FME

MU 11-X/f

 130000795 406…430 MHz X-mount (oblong)with FME

MU 11-XP4/f

 130000797 406…430 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-X/h

 130000799 440…470 MHz X-mount (oblong)with FME

MU 11-XP4/h

 130000801 440…470 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-X/l

 130000803 420…450 MHz X-mount (oblong)with FME

MU 11-XP4/l

 130000804 420…450 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-X/CEL1

 130000806 450 – 470 MHz X-mount (oblong)with FME

MU 11-XP4/CEL1

 130000807 450 – 470 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-XP4/CEL4

 130000809 414 – 430 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-XP4/CEL2

 130000810 440 – 455 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-X/s

 130000813 380…410 MHz X-mount (oblong)with FME

MU 11-XP4/s

 130000816 380…410 MHz XP4-mount (oblong)with 4 m cable andFME-connector

MU 11-X/CEL4

 130000818 414 – 430 MHz X-mount (oblong)with FME

MU 11-X/CEL3

 130000819 425 – 440 MHz X-mount (oblong)with FME

MU 11-CX/CEL2

 130001485 440 – 455 MHz CX-mount (circular)with FME

MU 11-CXP4/CEL3

 130000812 425 – 440 MHz CXP4-mount (circular)with 4 m cable andFME-connector

MU 11-X/CEL2

 130001478 440 – 455 MHz X-mount (oblong)with FME

MU 11-XP4/CEL3

 130001482 425 – 440 MHz XP4-mount (oblong)with 4 m cable andFME-connector

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Installation

This antenna can be mounted anywhere on the car, however, roof top mounting is always recommended.

The oblong X-mount can be mounted on the often very narrow strip on the rear wing between the trunk lid and the side of the car.

Mounting can take place exclusively with access from the outside when drilling an
18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.

When cleaning the car in car-washing machines, remove the whip using a spanner,
size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.

As the mounts are internally equipped with a bendable section, the antennas can always be adjusted to an upright position independent of the tilt angle of the installation spot

1. Installation Dimension

X CX Mount 18 GB

2. Installation Steps

X CX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The tunable models are tuned to the desired frequency within the indicated tuning range by positioning the adjustment disc according to the diagrams below.

Please Note

To help selecting the correct model for a specific cellular network, please consult the survey of cellular network fre?quencies under USEFUL DATA in our catalogues.
