| Electrical | |
| Model | MU 1804-LX |
|---|---|
| Frequency | 1800 MHz band (1700 – 1900 MHz) |

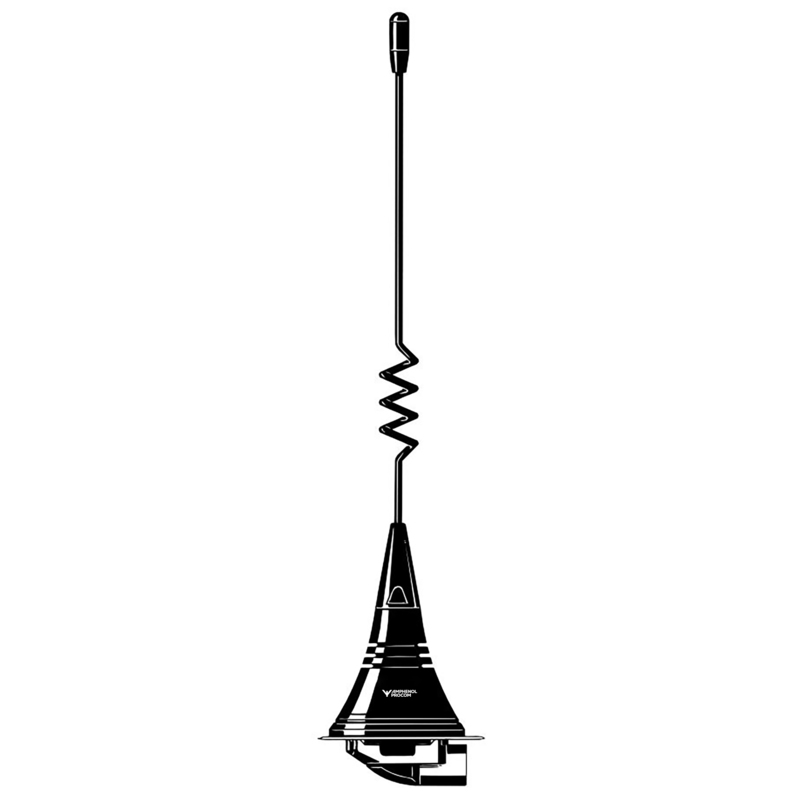

| Antenna Type | Collinear mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | ≤ 2.0 @ f. res. |
| Bandwidth | ≥ 200 MHz @ VSWR ≤ 2.25 |
| Gain (EIA RS-329-1) | 3 dB |
| Mechanical | |
| Materials | Whip : Black-chromed brass Black-chromed stainless steel Mount : Stainless steel Cu-nite brass Environment-proof plastics |
|---|---|
| Cable | FME-cable to be ordered separately |
| Installation Torque | 3.5 Nm max. |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 170 mm / 6.69 in. |
| Weight | Approx. 0.034 kg / 0.07 lb. |
| Mounting | 18 mm dia. hole |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Colinear 3 dB Mobile Antenna for the1800 MHz Band | 130001269 |
You need to be logged in into your account to view downloadable documents.
The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.
When cleaning the car in car-washing machines, the whip should be removed – a 9 mm fork spanner can be used. After wash, the whip is refitted and tightened lightly with the spanner.
The mount is equipped with a bendable section (±15 °C) to make it possible to adjust the antenna to an upright position.
Do not use sealer on rubber gasket or other places.
The antenna is delivered factory-tuned and requires no further tuning.
When tightening the revolving nut (see picture 4), special care must be taken to keep the spanner in the correct position.
