MU 2401-LX

0 dB Mobile Antenna for the 2400 MHz Band

Find Out More
Data Sheet
CE Certification

Other Files

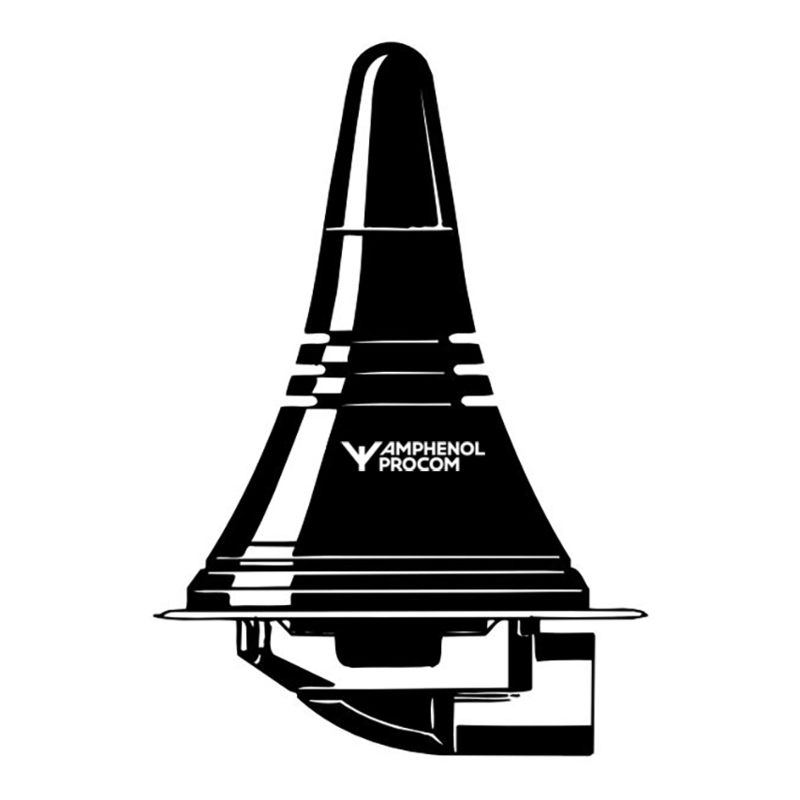

MU 2401-LX
Electrical
Model MU 2401-LX
Frequency 2300 – 2500 MHz
Antenna Type ¼ λ mobile antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.75 @ f. res.
Bandwidth ≥ 200 MHz @ VSWR ≤ 2
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed brass
Mount : Stainless steel
Cu-nite brass
Environment-proof plastics
Cable FME-cable to be ordered separately
Installation Torque 3.5 Nm max.
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 400 mm / 15.75 in.
Weight Approx. 0.03 kg / 0.07 lb.
Mounting 18 mm dia. hole
  • Mobile antenna for the 2400 MHz band.
  • Black-chromed whip in nice, discrete design.
  • Approx. 0 dB gain.
  • Stainless steel LX-mount – professional quality in elegant and smooth design.
  • Especially suited for roof-mounting.
  • Provided with FME-connection (supplied without cable).
  • Bendable section in mount for adjustment of whip (tiltable 15° by hand).
  • Installation with access from the outside only (requiring an
  • 18 mm dia. hole).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
0 dB Mobile Antenna for the 2400 MHz Band 130001270

Login required

You need to be logged in into your account to view downloadable documents.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.

1. Installation Dimension

LX Mount 18 mål GB

2. Installation Steps

LX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.

Please Note

When tightening the revolving nut (see picture 4), special care must be taken to keep the spanner in the correct position
