| Electrical | |
| Model | MU 2401/UMTS-LX |
|---|---|
| Frequency | UMTS band (1900 – 2200 MHz) |
| Antenna Type | ¼ λ mobile antenna |
| Max. Input Power | 25 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | ≤ 1.75 @ f. res. |
| Bandwidth | ≥ 200 MHz @ VSWR ≤ 2 |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip :Black-chromed brass Mount : Stainless steel Cu-nite brass Environment-proof plastics |
|---|---|
| Cable | FME-cable to be ordered separately |
| Installation Torque | 3.5 Nm max. |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 400 mm / 15.75 in. |
| Weight | Approx. 0.03 kg / 0.07 lb. |
| Mounting | 18 mm dia. hole |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
|

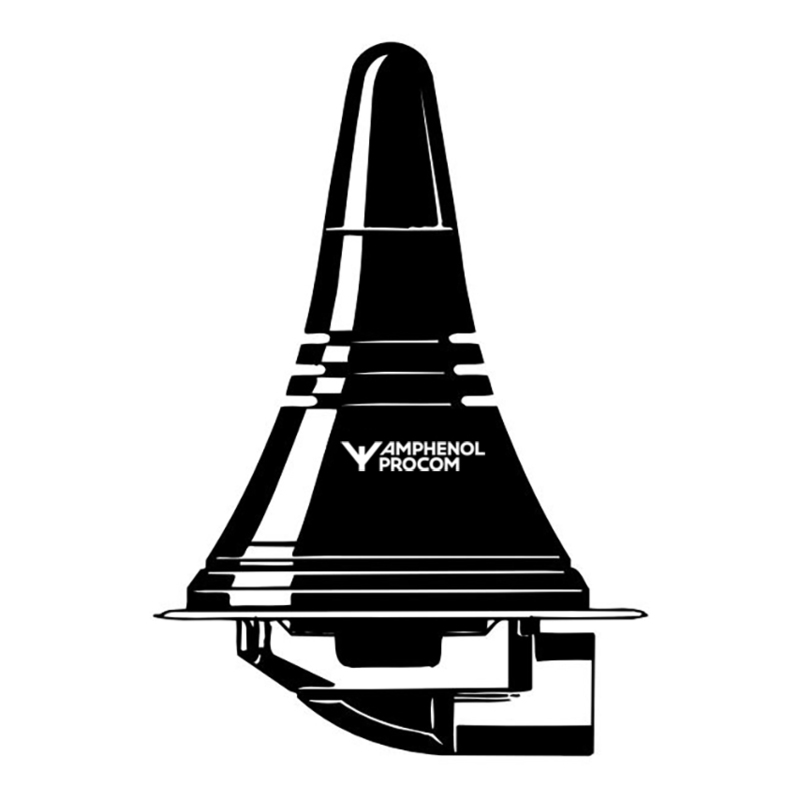

0 dB Mobile Antenna for the UMTS Band (1900 – 2200 MHz) |
130001275 |
You need to be logged in into your account to view downloadable documents.
The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.
Do not use sealer on rubber gasket or other places.
The antenna is delivered factory-tuned and requires no further tuning
When tightening the revolving nut (see picture 4), special care must be taken to keep the spanner in the correct position.
