MU 4-X/…, MU 4-CX/…, MU 4-XG/…, MU 4-MM/…

Colinear 4 dB Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 4-X/..., MU 4-CX/..., MU 4-XG/..., MU 4-MM/...

Quickly identify the correct ordering code.

MU 4-X/…, MU 4-CX/…, MU 4-XG/…, MU 4-MM/…
Electrical
Model MU 4-X/…, MU 4-CX/…, MU 4-XG/…, MU 4-MM/…
Frequency Models within 380 – 470 MHz
Antenna Type Collinear stainless steel mobile whip antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f. res.
Bandwidth > 15 MHz @ VSWR < 1.5
> 30 MHz @ VSWR < 2.5
Gain (EIA RS-329-1) 4 dB
Mechanical
Materials Whip: Black-chromed stainless steel
Black-chromed brass
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount, Magnetic Mount
Height Approx. 590 mm / 23.23 in. (dep. of freq.)
Weight X-version : Approx. 120 g / 0.26 lb.
XP4-version : Approx. 290 g / 0.64 lb.
CX-version : Approx. 155 g / 0.34 lb.
CXP4-version: Approx. 290 g / 0.64 lb.
XG-version : Approx. 170 g / 0.37 lb.
XGP4-version : Approx. 310 g / 0.68 lb.
MM-version : Approx. 380 g / 0.84 lb.
  • 4 dB mobile antenna with colinear, stainless steel whip.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Models available with X-mount (oblong), CX-mount (circular), XG-Combi mount (oblong) with GPS and MM-mount (magnetic).
  • Choice between mounts with FME-connection (without cable) or models with permanently attached 4 m cable with FME connector.
  • Choose between general purpose tunable models and permanently tuned models for cellular systems.
  • Easily removable whip for car wash.
  • GPS-antenna for fixed installations.
  • Full hemispherical coverage.
  • Built-in high-gain, low-noise amplifier.
  • Right-Hand Circular Polarization (RHCP).
  • 2.85 V – 5 V supply voltage (typical 3 V).

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MU 4-X/s

 130000952 380 – 410 MHz X-mount (oblong) with FME

MU 4-X/f

 130000922 406 – 430 MHz X-mount (oblong) with FME

MU 4-X/l

 130000933 420…450 MHz X-mount (oblong) with FME

MU 4-X/h

 130000927 440…470 MHz X-mount (oblong) with FME

MU 4-X/CEL1

 130000942 450 – 470 MHz X-mount (oblong) with FME

MU 4-X/CEL2

 130000941 440 – 455 MHz X-mount (oblong) with FME

MU 4-X/CEL3

 130000944 425 – 440 MHz X-mount (oblong) with FME

MU 4-X/CEL4

 130000951 414 – 430 MHz X-mount (oblong) with FME

MU 4-X/CEL5

 130001610 380 – 410 MHz X-mount (oblong) with FME

MU 4-CX/s

 130000953 380…410 MHz CX-mount (circular) with FME

MU 4-CX/f

 130000923 406…430 MHz CX-mount (circular) with FME

MU 4-CX/l

 130000934 420…450 MHz CX-mount (circular) with FME

MU 4-CX/h

 130000928 440…470 MHz CX-mount (circular) with FME

MU 4-CX/CEL5

 130001612 380 – 410 MHz CX-mount (circular) with FME

MU 4-CX/CEL4

 130000937 414 – 430 MHz CX-mount (circular) with FME

MU 4-CX/CEL3

 130000940 425 – 440 MHz CX-mount (circular) with FME

MU 4-CX/CEL2

 130000938 440 – 455 MHz CX-mount (circular) with FME

MU 4-CX/CEL1

 130000943 450 – 470 MHz CX-mount (circular) with FME

MU 4-XP4/s

 130000954 380…410 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/f

 130000924 406…430 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/l

 130000935 420…450 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/h

 130000929 440…470 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/CEL5

 130001611 380 – 410 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/CEL4

 130000950 414 – 430 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/CEL3

 130001474 425 – 440 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/CEL2

 130000947 440 – 455 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-XP4/CEL1

 130000945 450 – 470 MHz XP4-mount (oblong) with 4 m cable and FME-connector

MU 4-CXP4/s

 130000955 380…410 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/f

 130000925 406…430 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/l

 130000936 420…450 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/h

 130000930 440…470 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/ CEL5

 130001613 380 – 410 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/CEL4

 130000949 414 – 430 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/CEL3

 130000948 425 – 440 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/CEL2

 130000939 440 – 455 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-CXP4/CEL1

 130000946 450 – 470 MHz CXP4-mount (circular) with 4 m cable and FME-connector

MU 4-XG/s

 130002033 380 – 410 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/f

 130002034 406 – 430 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/l

 130002093 420 – 450 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/h

 130002094 440 – 470 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/CEL5

 130002099 380 – 410 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/CEL4

 130002098 414 – 430 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/CEL3

 130002097 425 – 440 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/CEL2

 130002096 440 – 455 MHz XG-COMBI mount (oblong) with FME

MU 4-XG/CEL1

 130002095 450 – 470 MHz XG-COMBI mount (oblong) with FME

MU 4-XGP4/s

 130002035 380 – 410 MHz XGP4-COMBI mount (oblong) with 4 m cable and FME-conn.

MU 4-XGP4/f

 130002036 406 – 430 MHz XGP4-COMBI mount (oblong) with 4 m cable and FME-conn.

MU 4-XGP4/CEL2

 130002101 440 – 455 MHz XGP4-COMBI mount (oblong) with 4 m cable and FME-conn.

MU 4-XGP4/CEL1

 130002100 450 – 470 MHz XGP4-COMBI mount (oblong) with 4 m cable and FME-conn.

MU 4-MM/s

 130000916 380 – 410 MHz MM-mount with FME

MU 4-MM/f

 130000909 406 – 430 MHz MM-mount with FME

MU 4-MM/l

 130000915 420 – 450 MHz MM-mount with FME

MU 4-MM/h

 130000914 440 – 470 MHz MM-mount with FME

MU 4-MM/CEL5

 130001614 380 – 410 MHz MM-mount with FME

MU 4-MM/CEL4

 130000912 414 – 430 MHz MM-mount with FME

MU 4-MM/CEL3

 130000911 425 – 440 MHz MM-mount with FME

MU 4-MM/CEL2

 130000910 440 – 455 MHz MM-mount with FME

MU 4-MM/CEL1

 130000913 450 – 470 MHz MM-mount with FME

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Installation and Assembly Instructions

Please refer to the data sheet of each individual mount to find the installation and assembly instructions.

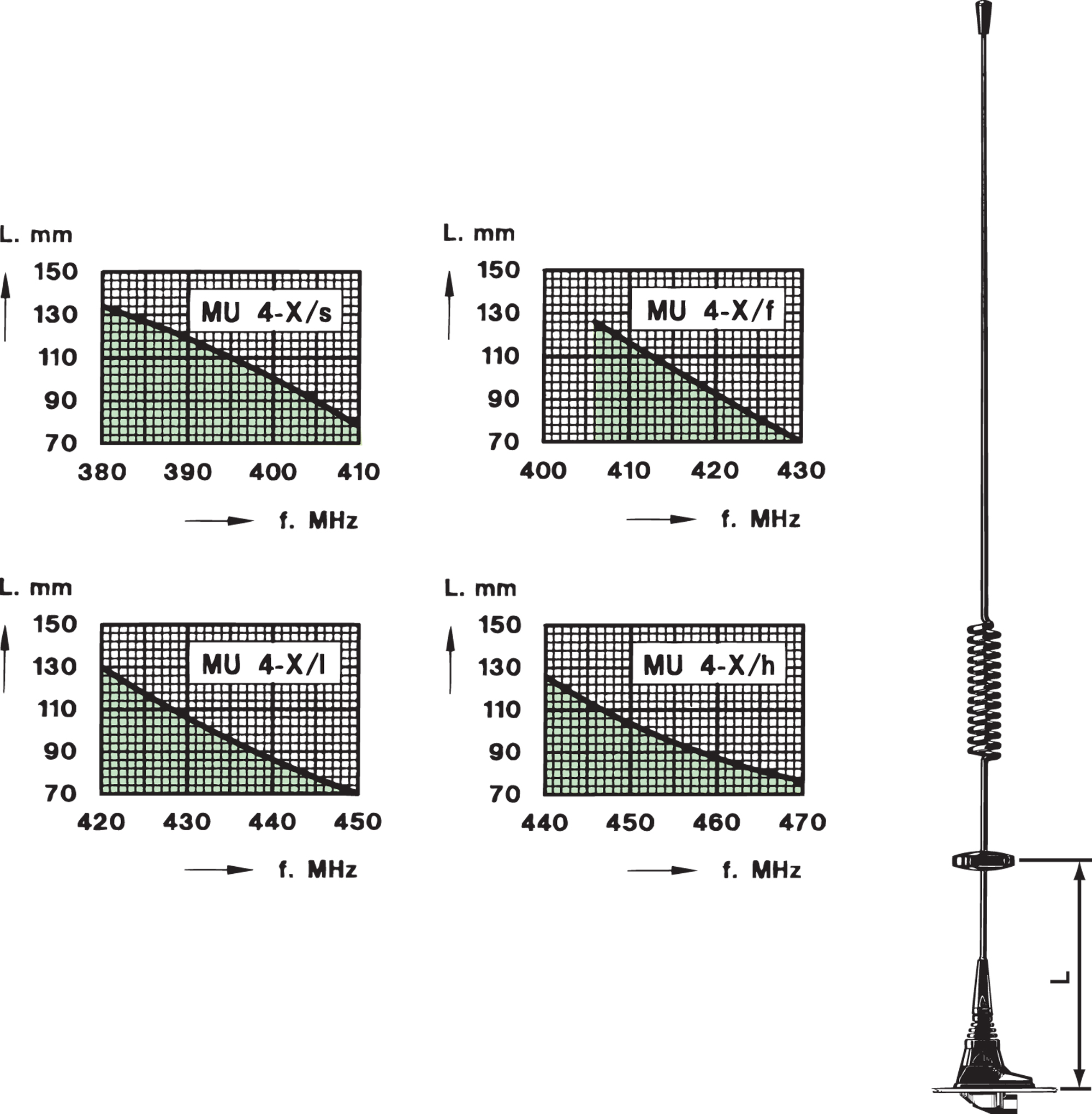

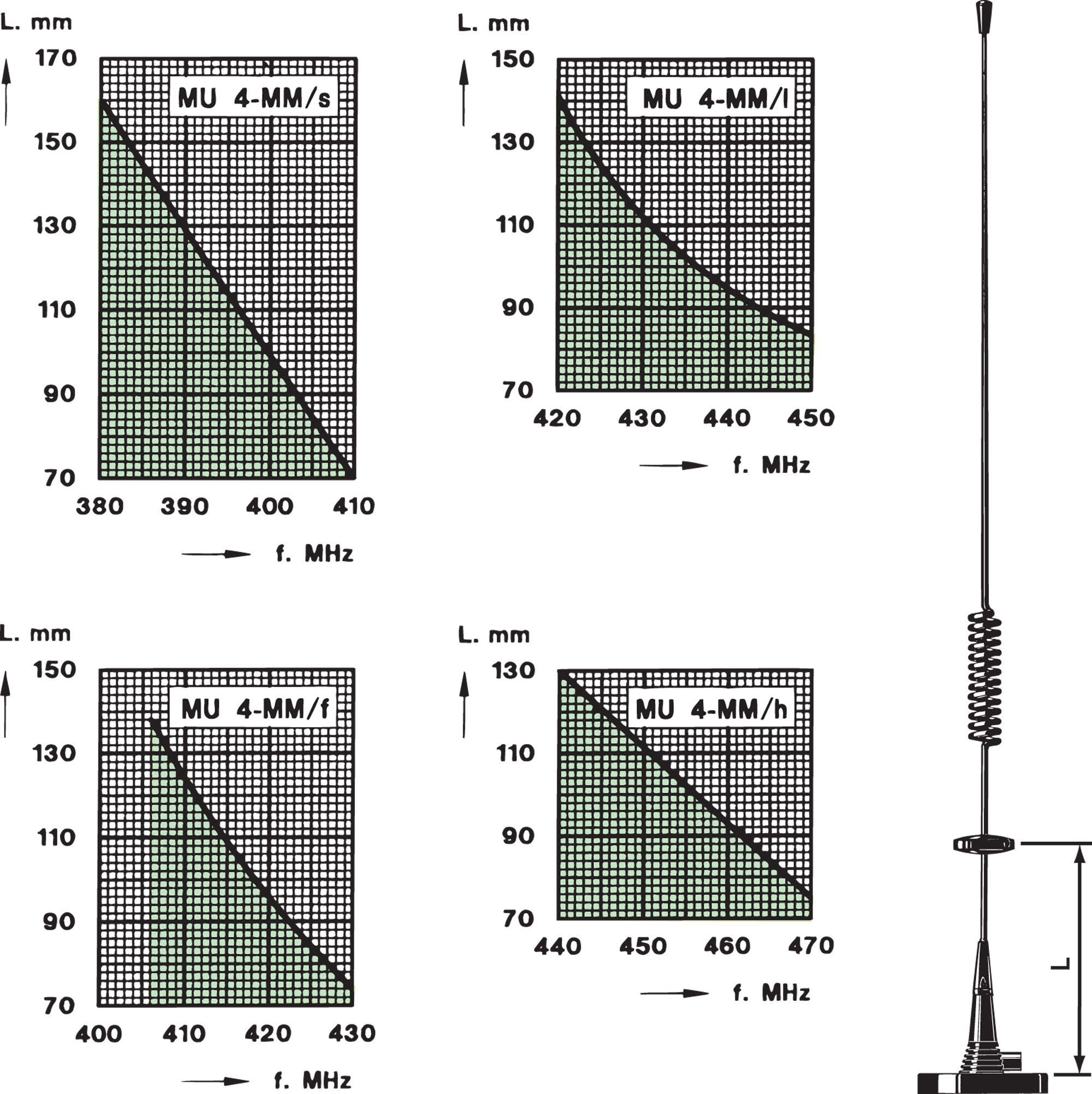

Tuning
