| Electrical | |
| Model | MU 4-ZG/… |
|---|---|
| Frequency | Models within : 380 … 470 MHz |
| Antenna Type | Collinear stainless steel mobile whip antenna |
| Max. Input Power | 100 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| Bandwidth | > 15 MHz @ VSWR < 1.5 > 30 MHz @ VSWR < 2.5 |
| Gain (EIA RS-329-1) | 4 dB |
| Mechanical | |
| Materials | Whip : Black-chromed stainless steel and brass Mount : Black-chromed brass Weather- and shockproof plastics Stainless steel |
|---|---|
| Installation Torque | 7.5 ±1 Nm |
| Colour | Black |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type |
Hole MountMagnetic Mount
|
| Height | Approx. 59 mm / 2.32 in. |
| Weight | ZG-version : Approx. 180 g / 0.4 lb. ZGP4-version : Approx. 320 g / 0.7 lb. MZG-version : Approx. 860 g / 1.9 lb. |
| Mounting | 21mm dia. hole |

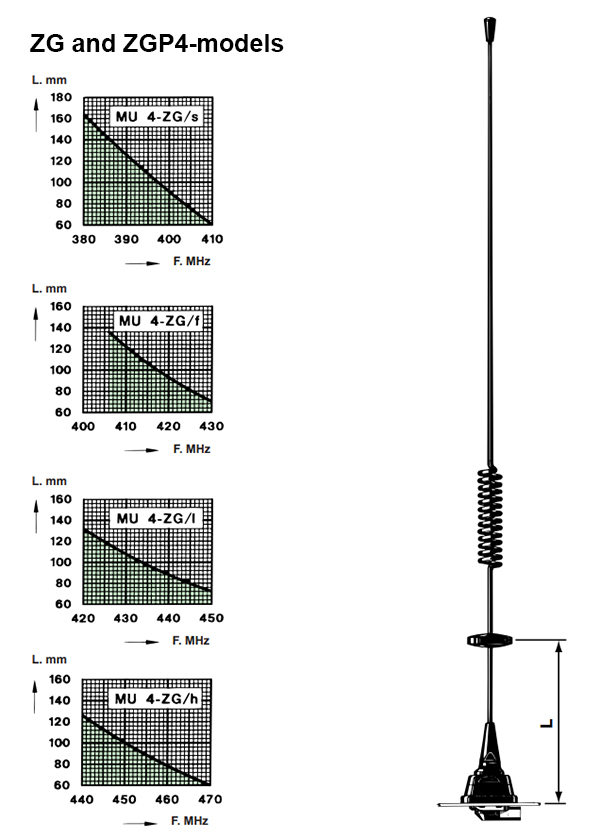

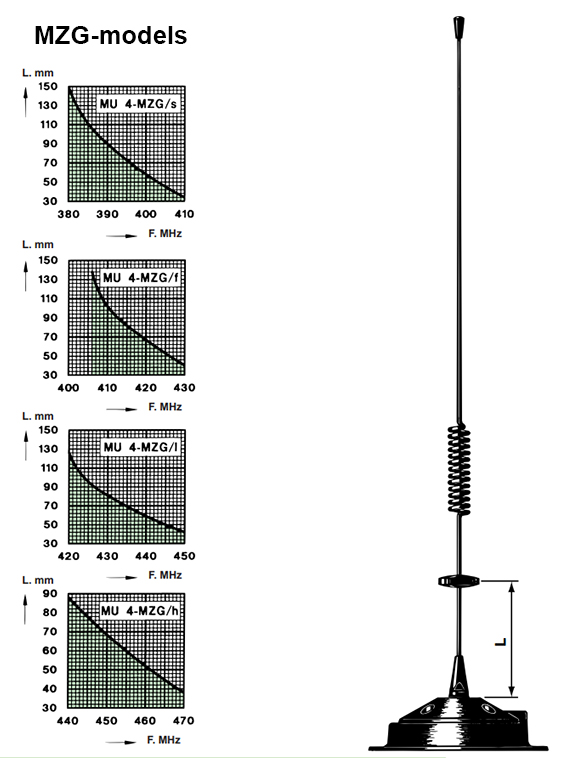

Whips from the ZG/ZGP4 mounts and the MZG-mount are NOT compatible.
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Additional Information | Add To Quote |
|---|---|---|---|---|
|
MU 4-MZG/f |
130000917 | 406…430 MHz | MZG-mount with FME | |
|
MU 4-MZG/h |
130000918 | 440…470 MHz | MZG-mount with FME | |
|
MU 4-MZG/l |
130000919 | 420…450 MHz | MZG-mount with FME | |
|
MU 4-MZG/s |
130000920 | 380…410 MHz | MZG-mount with FME | |
|
MU 4-ZGP4/f |
130000959 | 406…430 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/h |
130000961 | 440…470 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/l |
130000964 | 420…450 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/ CEL1 |
130000969 | 450 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/ CEL2 |
130000970 | 440 – 455 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/ CEL3 |
130000971 | 425 – 440 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZGP4/s |
130000958 | 380…410 MHz | ZGP4-mount with 4m cable and FME | |
|
MU 4-ZG/f |
130000957 | 406…430 MHz | ZG-mount with FME | |
|
MU 4-ZG/h |
130000960 | 440…470 MHz | ZG-mount with FME | |
|
MU 4-ZG/l |
130000963 | 420…450 MHz | ZG-mount with FME | |
|
MU 4-ZG/ CEL1 |
130000966 | 450 – 470 MHz | ZG-mount with FME | |
|
MU 4-ZG/ CEL2 |
130000967 | 440 – 455 MHz | ZG-mount with FME | |
|
MU 4-ZG/ CEL3 |
130000968 | 425 – 440 MHz | ZG-mount with FME | |
|
MU 4-ZG/s |
130000972 | 380…410 MHz | ZG-mount with FME | |
|
MU 4-MZG/CEL2 |
130001329 | 440 – 455 MHz | MZG-mount with FME |
You need to be logged in into your account to view downloadable documents.

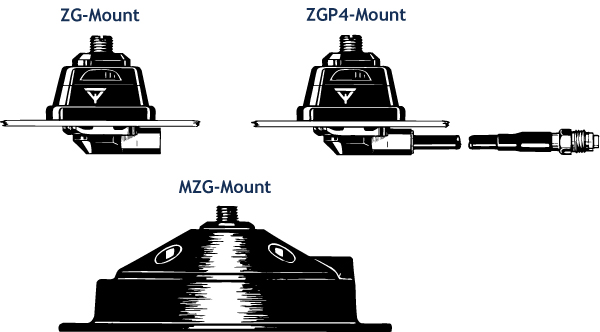

The antenna whip comprises a ¼ ? section, a phase shifting coil, and a ½ ? section. The ZG-mount is designed for mounting from the outside in a 21 mm dia. hole on horizontal surfaces as e.g. roof top or trunk lid.
The mount is provided with an M8 x 1 thread mount system. This construction meets the demand for a low-profile mobile mount with a slim appearance and with protection against theft of the antenna whip.
When cleaning the car in car-washing machines, the whip is easily removed using a spanner, size 12 mm. The whip is refitted again by screwing it onto the thread stud and tightening it with the spanner.
The MZG-mount antennas are provided with a large-diameter, thoroughly magnetized permanent ring magnet with an extraordinarily high attaching effect. A silicone layer applied to the whole contact surface protects the car roof and ensures maximum friction.
Please note that whips from the ZG/ZGP4 mounts and the whips from the MZG-mount are not compatible.
Do not use sealer on rubber gasket or other places.
For safety reasons:
When using the MU 4-MZG/…, car speed must not exceed 140 km/h.
