| Electrical | |
| Model | MU 4-ZP5/380..430 MHz |
|---|---|
| Frequency | 380 – 430 MHz |
| Antenna Type | Collinear stainless steel mobile whip antenna |
| Max. Input Power | 50 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |

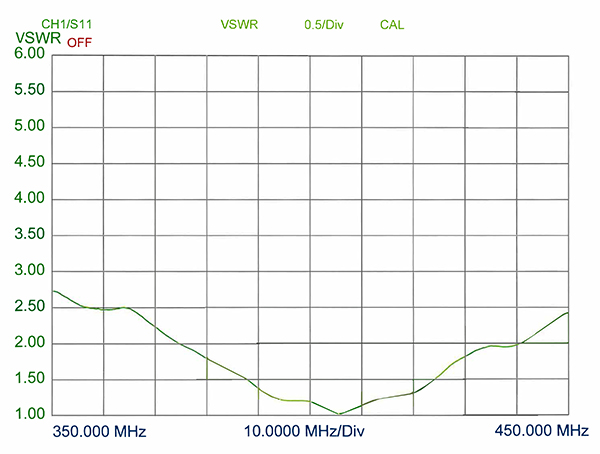

| VSWR | ≤ 1.3 @ f. res. |
| Bandwidth | > 50 MHz @ VSWR ≤ 2.0:1 |
| Gain (EIA RS-329-1) | 4 dB |
| Mechanical | |
| Materials | Whip : Stainless steel and brass, bright polished/chromed Mount : Bright Chromed brass Weather- and shockproof plastics Stainless steel |
|---|---|
| Cable | 5 m cable terminated with FME-connector |
| Installation Torque | 7.5 ± 1 Nm |
| Colour | Metallic Silver |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 66 mm / 2.60 in. |
| Weight | Approx. 0.43 kg / 0.95 lb. |

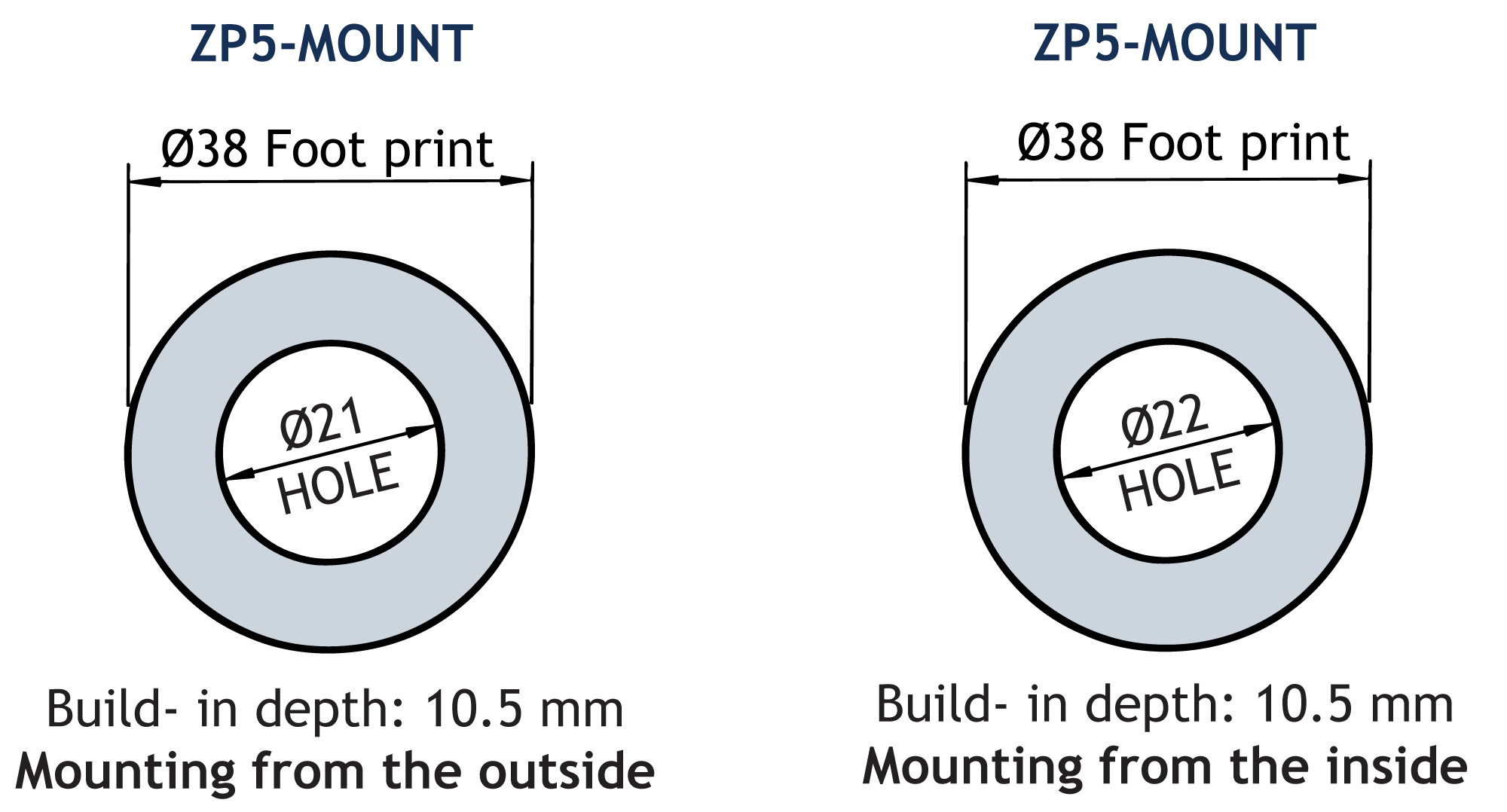

| Mounting | 21 mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22 mm dia.) |
| Mounting Plate Thickness | Max. 2.0 mm (Models up to 7.5 mm on request) |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Colinear 4 dB Mobile Antenna for the 400 MHz Band | 130002315 |
You need to be logged in into your account to view downloadable documents.

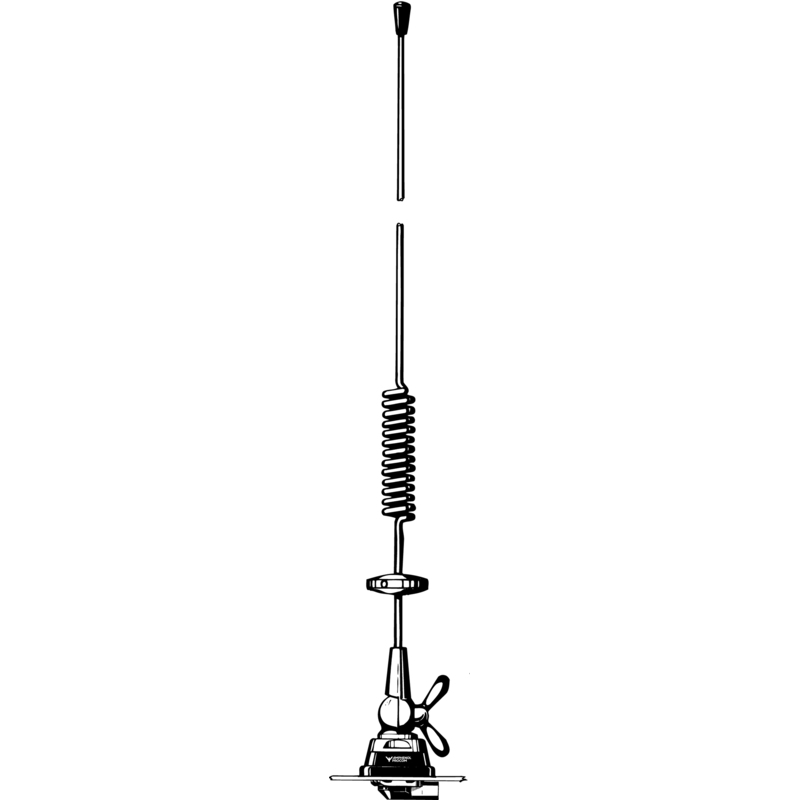

The antenna whip comprises a ¼ λ section, a phase shifting coil, and a ½ λ section. The whip is fastened to the mount by means of our standard ball joint and wing screw system.
The adjustable ball joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.

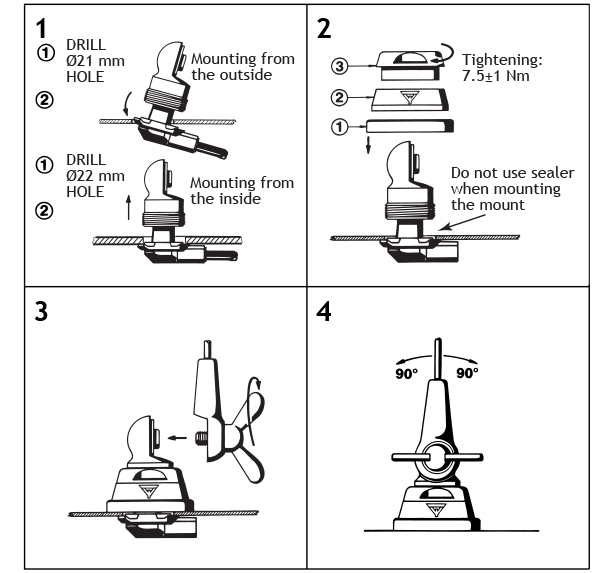

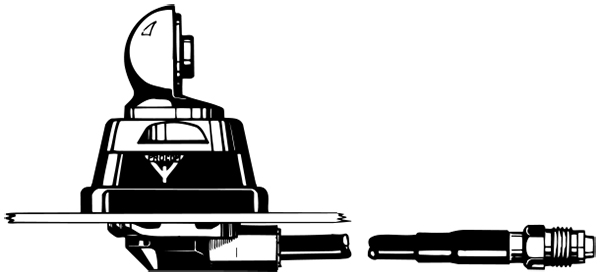

The Z-mount is particularly well suited for mounting on car roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.
However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.
Factory tuned for 405 MHz.

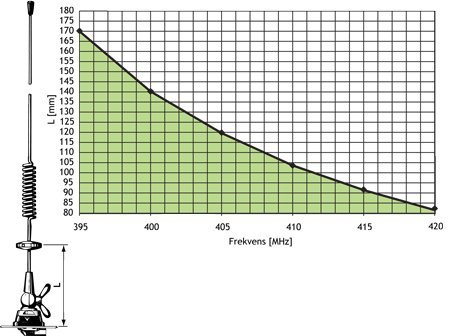

For optimizing VSWR in the band from 395 – 420 MHz, you can use the diagram as a guide for the position of the adjusting disc. (use a instrument).
Hat screw option: By adding a K to the antenna designation the antenna is delivered with hat screw and key instead of wing screw.
