| Electrical | |
| Model | MU 5-Z/… |
|---|---|
| Frequency | 450 MHz-band covered by three models |
| Antenna Type | Mobile whip antenna |
| Max. Input Power | 100 W |
| Polarisation | Vertical |
| Impedance | 50 Ω |
| VSWR | ≤ 1.2:1 @ f. res. |
| Bandwidth | ≥ 45 MHz @ VSWR ≤ 1.5 |
| Gain (EIA RS-329-1) | 0 dB |
| Mechanical | |
| Materials | Whip: Sturdy, flexible rubber with cast-in multicore steel wire radiating element Chromed brass Mount: Chromed brass Weather- and shockproof plastics Stainless steel |
|---|---|
| Installation Torque | 7.5 ±1 Nm |
| Colour | Black / Metallic Silver |
| Historic Brand | Amphenol Procom |
| Antenna Mount Type | Hole Mount |
| Height | Approx. 190 mm / 7.48 in. |
| Weight | Z-version: Approx. 160 g / 0.35 lb. ZP4-version: Approx. 300 g / 0.66 lb. |
| Mounting | 21mm dia. hole (For roof thicknesses 2 mm up to 7.5 mm mounting hole should be 22mm dia.) |
| Mounting Plate Thickness | Max. 2.0 mm (Models up to 7.5 mm on request) |
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|
MU 5-Z/s |
130001041 | 370 – 410 MHz | |
|
MU 5-Z/l |
130001042 | 406 – 440 MHz | |
|
MU 5-Z/h |
130001045 | 430 – 470 MHz | |
|
MU 5-ZP4/s |
130001050 | 370 – 410 MHz | |
|
MU 5-ZP4/l |
130001047 | 406 – 440 MHz | |
|
MU 5-ZP4/h |
130001048 | 430 – 470 MHz |
You need to be logged in into your account to view downloadable documents.
This antenna should always be mounted on the car roof to ensure best omnidirectional coverage.

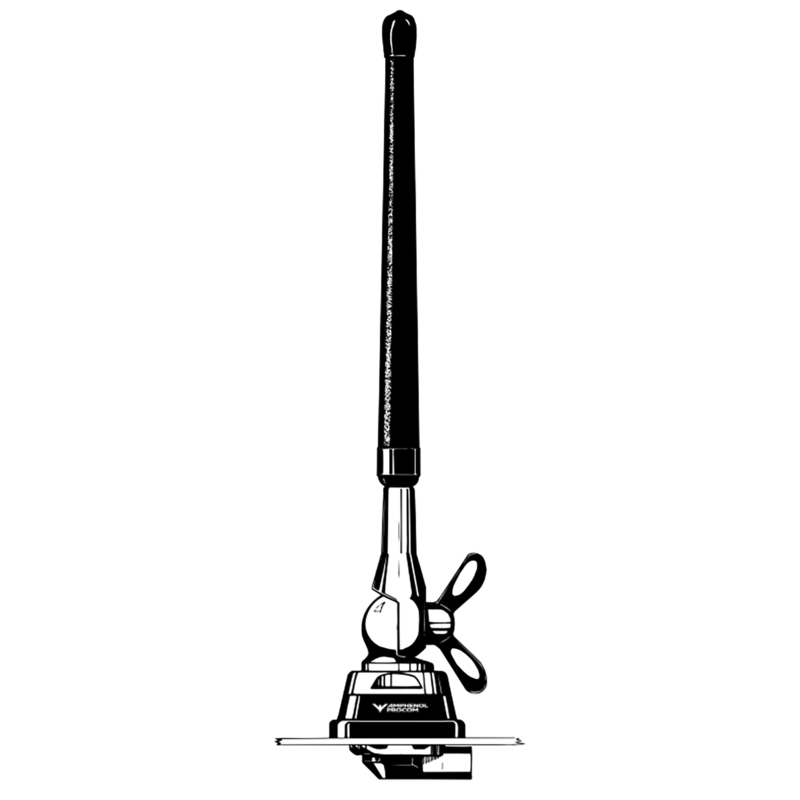

The antenna is provided with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.
The Z-mount is particularly well suited for mounting on car roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside.
Do not use sealer on rubber gasket or other places.
The antenna is delivered factory-tuned and requires no further tuning.
To convert an MU 5-Z/s model into an MU 5-Z/l model, cut off 13 mm of the top end of the whip.
To convert an MU 5-Z/l model into an MU 5-Z/h model, cut off 13 mm of the top end of the whip.
As standard the antenna is provided with a wing screw. However, the wing screw may be replaced by the less obtrusive hat screw (with key), which also gives an improved protection against theft. To order the antenna with hat nut, please add a “K” to the antenna designation.
