Unity Gain ¼ λ Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 5-ZG/...

Quickly identify the correct ordering code.

MU 5-ZG/…
Electrical
Model MU 5-ZG/…
Frequency 450 MHz-band covered by three models
Antenna Type Mobile whip antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.2:1 @ f. res.
Bandwidth ≥ 45 MHz @ VSWR ≤ 1.5
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip: Sturdy, flexible rubber with cast-in multicore steel wire radiating element
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 7.5 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 175 mm / 6.89 in.
Weight ZG-version: Approx. 130 g / 0.29 lb.
ZGP4-version: Approx. 270 g / 0.60 lb.
Mounting 21 mm dia. hole

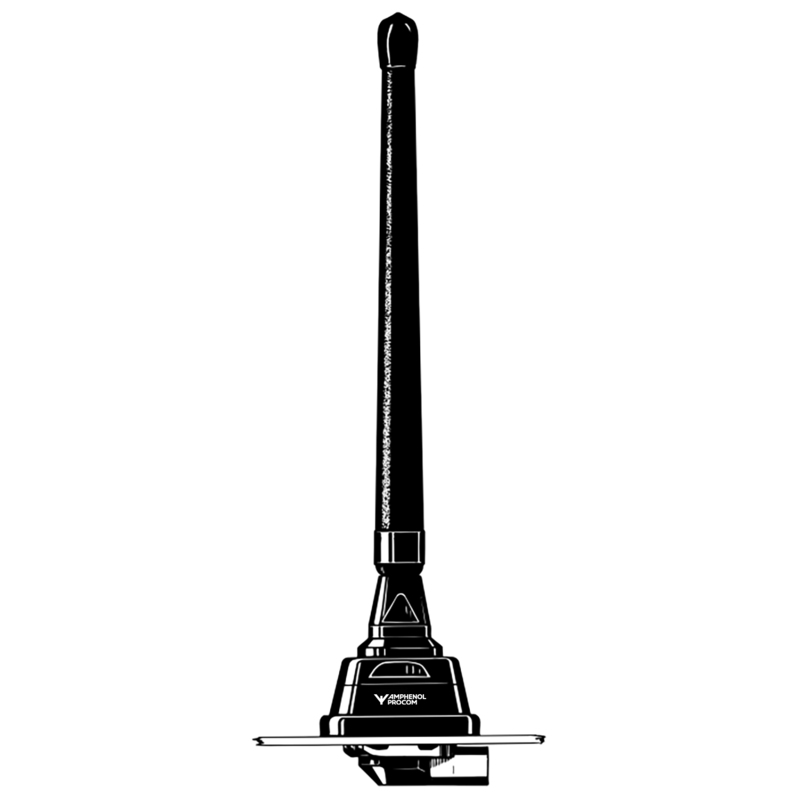

  • Sturdy, conical, flexible rubber whip.
  • MU 5-ZG/s covers 370–410 MHz
  • MU 5-ZG/l covers 406–440 MHz
  • MU 5-ZG/h covers 430–470 MHz
  • – no tuning required.
  • Stainless steel ZG-mount with M8-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Choice between two connection principles:
  • ZG-mount: FME-connection (supplied without cable)
  • ZGP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

MU 5-ZG/s

 130001052 370 – 410 MHz

MU 5-ZG/l

 130001054 406 – 440 MHz

MU 5-ZG/h

 130001055 430 – 470 MHz

MU 5-ZGP4/s

 130001058 370 – 410 MHz

MU 5-ZGP4/l

 130001056 406 – 440 MHz

MU 5-ZGP4/h

 130001057 430 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

The whip is compatible with all below mounts

Installation

This antenna should always be mounted on the car roof to ensure best omnidirectional coverage. The antenna is provided with our type ZG-mount for mounting from the outside in a 21 mm dia. hole.

The ZG-mount is provided with an M8 x 1 thread mount system. This construction meets the demand for a low-profile mobile mount with a slim appearance and with protection against theft of the antenna whip.

When cleaning the car in car-washing machines, the whip is easily removed using a spanner, size 12 mm. The whip is refitted again by screwing it onto the thread stud and tightening it with the spanner.

1. Installation Dimension

ZG Mount 21 38 130 GB

Build-in depth : 10.5 mm

2. Installation Steps

ZG Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning / Model conversion

The antenna is delivered factory-tuned and requires no further tuning.

To convert an MU 5-ZG/s model into an MU 5-ZG/l model, cut off 14 mm of the top end of the whip.

To convert an MU 5-ZG/l model into an MU 5-ZG/h model, cut off 8 mm of the top end of the whip.
