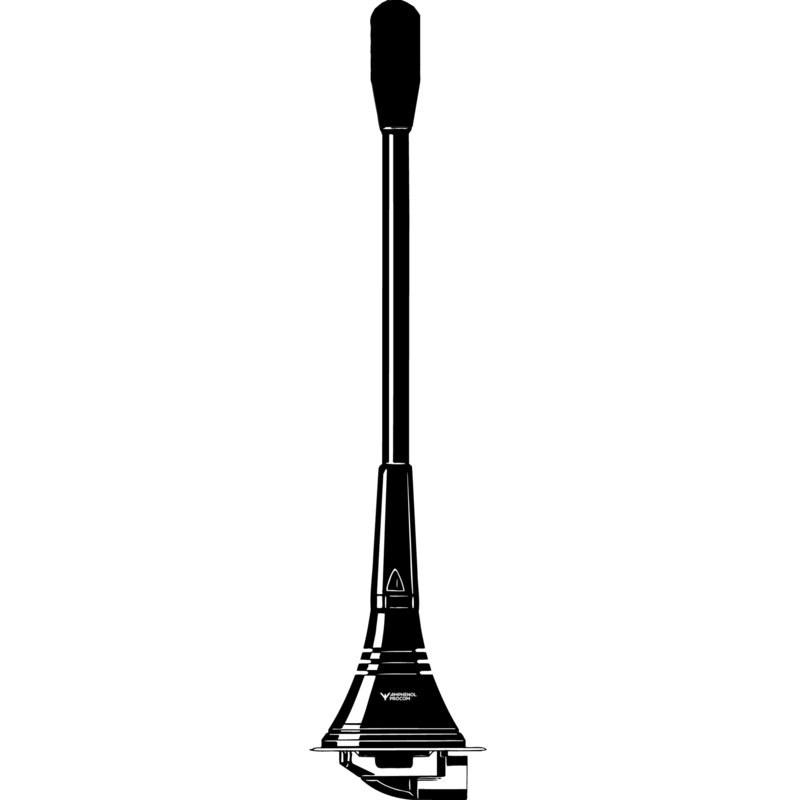

Unity Gain ¼ λ Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 7-LX/...

Quickly identify the correct ordering code.

MU 7-LX/…
Electrical
Model MU 7-LX/…
Frequency 450 MHz band covered by three models
Antenna Type ¼ λ mobile antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.3:1 @ f.res.
Bandwidth ≥ 40 MHz
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip: Steel wire covered with silicone tubing Black-chromed brass Mount: Stainless steel Brass Environment-proof plastics
Cable FME-cable to be ordered separately
Installation Torque 3.5 Nm max.
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 160 mm / 6.30 in.
Weight Approx. 0.045 kg / 0.10 lb.
Mounting 18 mm dia. hole
  • 0 dB mobile antenna with silicone covered flexible steel wire whip.
  • Type MU 7-LX/s covers 370 – 410 MHz
  • Type MU 7-LX/l covers 406 – 440 MHz
  • Type MU 7-LX/h covers 430 – 470 MHz
  • – no tuning required.
  • Stainless steel LX-mount – professional quality in elegant and smooth design.
  • Especially suited for roof-mounting.
  • Provided with FME-connection (supplied without cable).
  • Bendable section in mount for adjustment of whip (tiltable 15° by hand).
  • Installation with access from the outside only (requiring an 18 mm dia. hole).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

MU 7-LX/s

 130001077 370 – 410 MHz

MU 7-LX/l

 130001079 406 – 440 MHz

MU 7-LX/h

 130001078 430 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.

When cleaning the car in car-washing machines, the whip should be removed – a 9 mm fork spanner can be used. After wash, the whip is refitted and tightened lightly with the spanner.

The mount is equipped with a bendable section (±15°) to make it possible to adjust the antenna to an upright position.

1. Installation Dimension

LX Mount 18 mål GB

2. Installation Steps

LX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

Please Note

When tightening the revolving nut (see picture 4), special care must be taken to keep the spanner in the correct position.

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.
