MU 7-X/…

Unity Gain ¼ λ Mobile Antenna for the 450 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 7-X/...

Quickly identify the correct ordering code.

MU 7-X/…
Electrical
Model MU 7-X/…
Frequency 450 MHz-band covered by three models
Antenna Type Mobile whip antenna
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.2:1 @ f.res.
Bandwidth ≥ 45 MHz @ VSWR ≤ 1.5
Gain (EIA RS-329-1) 0 dB
Environmental
Operating temperature range -40 °C to +85 °C
Mechanical
Materials Whip : Steel wire covered with silicone tubing,
Black-chromed brass
Mount : Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Height Approx. 175 mm / 6.89 in.
Weight X-version: Approx. 65 g / 0.14 lb.
XP4-version: Approx. 205 g / 0.45 lb.
MM-version: Approx. 275 g / 0.61 lb.
Mounting 18 mm dia. hole / 0,70 in.
  • Silicone covered flexible steel wire whip.
  • MU 7-X/s covers 370 – 410 MHz
  • MU 7-X/l covers 406 – 440 MHz
  • MU 7-X/h covers 430 – 470 MHz
  • – no tuning required.
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong), CX-mount (circular) and MM-mount (magnetic).
  • Choice between two connection principles:
  • X-mount, MM-mount: FME-connection (supplied without cable).
  • XP4-mount: Permanently attached 4 m cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

MU 7-X/s

 130001076 370 – 410 MHz

MU 7-X/l

 130001070 406 – 440 MHz

MU 7-X/h

 130001082 430 – 470 MHz

MU 7-CX/s

 130001066 370 – 410 MHz

MU 7-CX/l

 130001071 406 – 440 MHz

MU 7-CX/h

 130001083 430 – 470 MHz

MU 7-XP4/s

 130001080 370 – 410 MHz

MU 7-XP4/l

 130001072 406 – 440 MHz

MU 7-XP4/h

 130001073 430 – 470 MHz

MU 7-CXP4/s

 130001065 370 – 410 MHz

MU 7-CXP4/l

 130001068 406 – 440 MHz

MU 7-CXP4/h

 130001074 430 – 470 MHz

MU 7-MM/s

 130001060 370 – 410 MHz

MU 7-MM/l

 130001061 406 – 440 MHz

MU 7-MM/h

 130001062 430 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

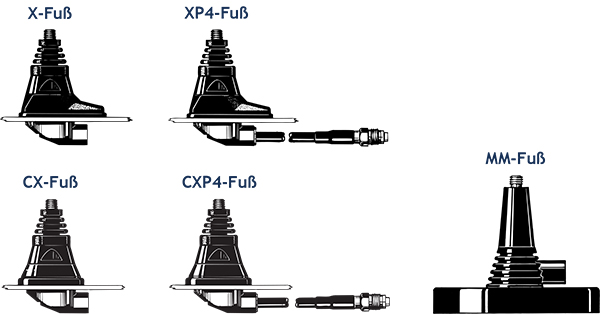

The whip is compatible with all below mounts

Installation

This antenna should be mounted on the car roof to ensure best omnidirectional coverage.

Mounting can take place exclusively with access from the outside when drilling an
18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.

When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.

The MiniMag (abbreviated: MM) is a small, lightweight magnetic mount with a high attaching effect. A silicone layer applied to the contact surface protects the car
roof and ensures maximum friction.

1. Installation Dimensions

X CX MM Mount ø18 ø72 GB

2. Installation step

X CX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3.Tuning

The antenna is delvered facorty-tuned and requires no futher tuning.

Please Note

For safety reasons:

When using the MU 7-MM, car speed must not exceed 180 km/h.
