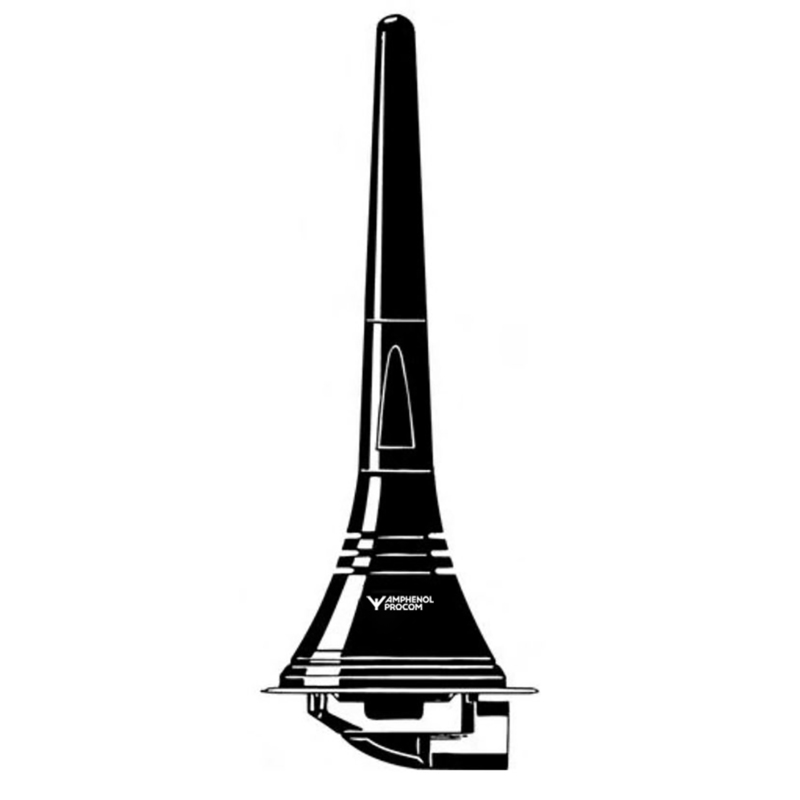

MU 800/900/1800/2100/2600-LX

Multi-frequency Mobile Antenna for the 800 MHz, 900 MHz, 1800 MHz, 2100 MHz and 2600 MHz Bands

Find Out More
Data Sheet
CE Certification

Other Files

MU 800/900/1800/2100/2600-LX
Electrical
Model MU 800/900/1800/2100/2600-LX
Frequency 790 – 862 MHz
880 – 960 MHz (EGSM/NMT-900)
1710 – 1880 MHz (DCS-1800/PCN)
1900 – 2200 MHz (UMTS) and
2500 – 2690 MHz
Antenna Type Multi-frequency mobile antenna
Max. Input Power 15 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 2.5:1
Bandwidth 800 MHz : > 50 MHz @ VSWR = 2.0:1
900 MHz : > 40 MHz @ VSWR = 1.5:1
1800 MHz : Approx. 200 MHz @ VSWR = 2.0:1 (typ.)
1900 – 2200 MHz @ VSWR = 2.0:1 (typ.) and
2600 MHz : > 200 MHz @ VSWR = 2.5:1 (typ.)
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip: Black cover POM
Black-chromed brass
Mount: Stainless steel
Brass
Environment-proof plastics
Cable FME-cable to be ordered separately
Installation Torque 3.5 Nm max.
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 93 mm / 3.66 in.
Weight Approx. 0.033 kg / 0.07 lb.
Mounting 18 mm dia. hole
  • Multi-frequency antenna – multi bands – one antenna!
  • Stainless steel LX-mount.
  • Especially suited for roof mounting.
  • Provided with FME-connection (supplied without cable).
  • Flexible section in mount for adjustment of whip (tiltable 15° by hand).
  • Installation with access from the outside only (requiring an 18 mm dia. hole).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Multi-frequency Mobile Antenna for the 800 MHz, 900 MHz, 1800 MHz, 2100 MHz and 2600 MHz Bands 130001567

Login required

You need to be logged in into your account to view downloadable documents.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only. When cleaning the car in car-washing machines, the whip should be removed – a 9 mm fork spanner can be used. After wash, the whip is refitted and tightened lightly with the spanner.The mount is equipped with a bendable section (±15°) to make it possible to adjust the antenna to an upright position.

1. Installation Dimension

LX Mount 18 mål GB

2. Installation Steps

LX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.

Please Note

When tightening the revolving nut (see picture 4), special care must betaken to keep the spanner in the correct position.
