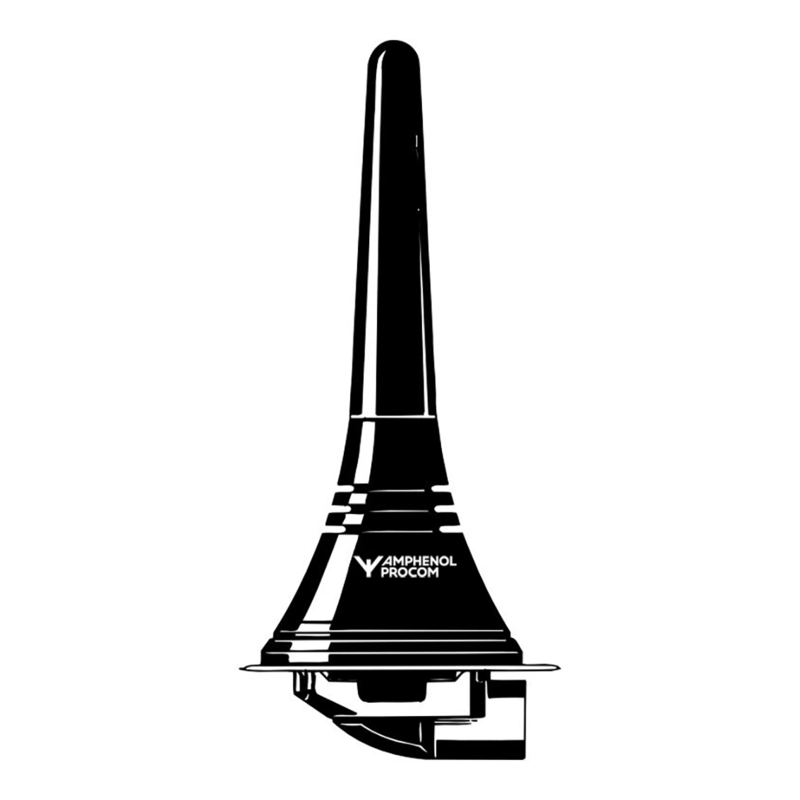

0 dB Mobile Antenna for the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 901-LX/...

Quickly identify the correct ordering code.

MU 901-LX/…
Electrical
Model MU 901-LX/…
Frequency 900 MHz band covered by two models
Antenna Type Mobile antenna
Max. Input Power 60 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.5 @ f. res.
Bandwidth ≥ 90 @ VSWR ≤ 1.75
≥ 180 @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip : Black-chromed brass
Mount : Stainless steel
Brass
Weather- and shockproof plastics
Cable FME-cable to be ordered separately
Installation Torque 3.5 Nm max.
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Height Approx. 80 mm / 3.15 in.
Weight Approx. 0.05 kg / 0.11 lb.
Mounting 18 mm dia. hole
  • 0 dB mobile antenna for the 900 MHz band.
  • Black-chromed whip in nice, discrete design.
  • Type MU 901-LX/l covers 820 – 905 MHz (e.g. for the EAMPS cellular system).
  • Type MU 901-LX/h covers 870 – 960 MHz (e.g. for the ETACS, NMT-900 and EGSM cellular systems).
  • Stainless steel LX-mount – professional quality in elegant and smooth design.
  • Especially suited for roof-mounting.
  • Provided with FME-connection (supplied without cable).
  • Bendable section in mount for adjustment of whip (tiltable 15° by hand).
  • Installation with access from the outside only (requiring an 18 mm dia. hole).

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MU 901-LX/l

 130001141 820 – 905 MHz (EAMPS)

MU 901-LX/h

 130001144 870 – 960 MHz n/a

Login required

You need to be logged in into your account to view downloadable documents.

Installation

The LX-mount is especially suited for roof-mounting. It is recommended to mount the antenna at the centre of the roof to ensure the best omnidirectional coverage. Mounting can take place in an 18 mm dia. hole with access from the outside only.
When cleaning the car in car-washing machines, the whip should be removed.
After wash, the whip is refitted and tightened lightly.

1. Installation Dimension

LX Mount 18 mål GB

2. Installation Steps

LX Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.

Please Note

When tightening the revolving nut (see picture 4), special care must be taken to keep the spanner in the correct position.
