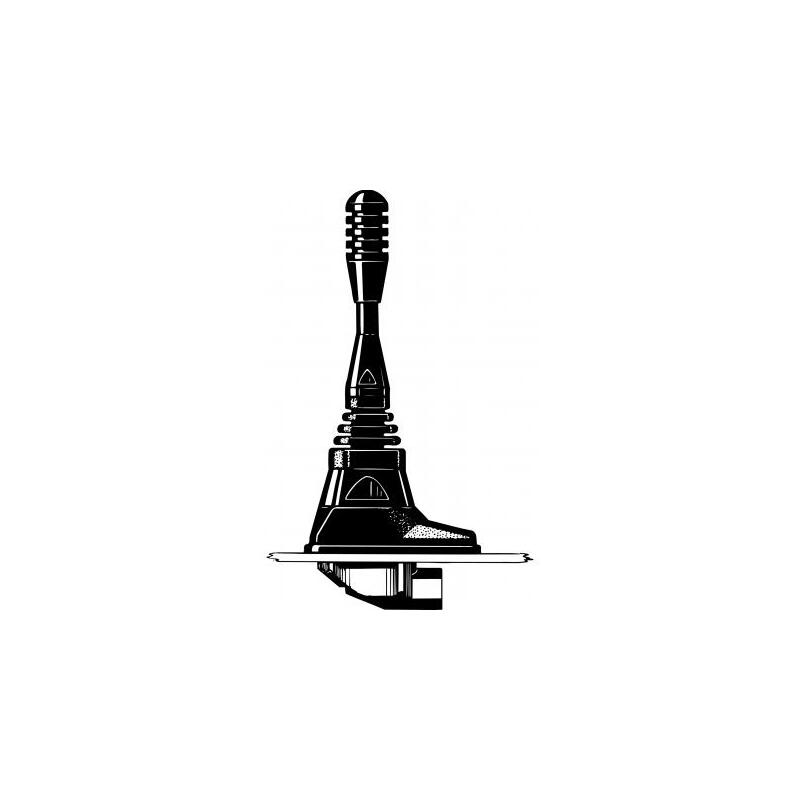

Unity Gain ¼ λ Mobile Antenna for the 900 MHz Band

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

MU 907-X/...

Quickly identify the correct ordering code.

MU 907-X/…
Electrical
Model MU 907-X…
Frequency 900 MHz-band covered by two models
Antenna Type Mobile antenna
Max. Input Power 60 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.2 @ f. res.
Bandwidth ≥ 100 @ VSWR ≤ 1.5
≥ 180 @ VSWR ≤ 2.0
Gain (EIA RS-329-1) 0 dB
Mechanical
Materials Whip: Steel wire covered with silicone tubing, Black-chromed brass
Mount: Black-chromed brass
Weather- and shockproof plastics
Stainless steel
Installation Torque 4 ±1 Nm
Colour Black
Historic Brand Amphenol Procom
Antenna Mount Type
Hole MountMagnetic Mount
Height Approx. 84 mm / 3.31 in.
Weight X-version : Approx. 55 g / 0.12 lb.
XP4-version : Approx. 195 g / 0.43 lb.
MM-version : Approx. 270 g / 0.6 lb.
Mounting 18 mm dia. hole
  • Silicone covered flexible steel wire whip.
  • Type MU 907-X/l covers 820 – 905 MHz (e.g. for EAMPS).
  • Type MU 907-X/h covers 870 – 960 MHz (e.g. for ETACS, NMT-900 and EGSM).
  • Stainless steel X-mount with M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with X-mount (oblong), CX-mount (circular) and MM-mount (magnetic).
  • Choice between two connection principles:
  • X-mount, MM-mount: FME-connection (supplied without cable).
  • XP4-mount: Permanently attached 4 m low loss cable terminated with FME-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

MU 907-X/l

 130001210 820 – 905 MHz X-mount (oblong) with FME-system

MU 907-X/h

 130001206 870 – 960 MHz Same mount as above

MU 907-CX/l

 130001211 820 – 905 MHz CX-mount (circular) with FME-system

MU 907-CX/h

 130001207 870 – 960 MHz Same mount as above

MU 907-XP4/l

 130001212 820 – 905 MHz XP4-mount (oblong) with 4 m cable + FME-system

MU 907-XP4/h

 130001208 870 – 960 MHz Same mount as above

MU 907-CXP4/l

 130001213 820 – 905 MHz CXP4-mount (circular) with 4 m cable + FME-system

MU 907-CXP4/h

 130001209 870 – 960 MHz Same mount as above

MU 907-MM/l

 130001214 820 – 905 MHz MM-mount (magnetic) with FME-system

MU 907-MM/h

 130001215 870 – 960 MHz Same mount as above

Login required

You need to be logged in into your account to view downloadable documents.

Installation

This antenna should be mounted on the car roof to ensure best omnidirectional coverage. Mounting can take place exclusively with access from the outside when drilling an 18 mm dia. hole. Mounting can take place from the inside by drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom plastic ring of the packing gasket with a sharp cutter.

When cleaning the car in car-washing machines, remove the whip using a spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the spanner.

The MiniMag (abbreviated: MM) is a small, light-weight magnetic mount with a high attaching effect. A silicone layer applied to the contact surface protects the car roof and ensures maximum friction.

1. Installation Dimension

X CX MM Mount ø18 ø72 GB

2. Installation Steps

XG Mount inst step samlet GB

Do not use sealer on rubber gasket or other places.

3. Tuning

The antenna is delivered factory-tuned and requires no further tuning.

Please Note

For safety reasons:

1. When using the MU 907-MM/…, car speed must not exceed 140 km/h.

2. If operating the MM-mount with other whips, whip length must never exceed 320 mm, and utilizing this maximum length, car speed must not exceed 115 km/h.

Ordering Note

To help selecting the correct model for a specific cellular network please consult the survey of cellular network frequencies under USEFUL DATA in our catalogues.

The whip is compatible with all below mounts

X XP4 CX CXP4 MM Mount GB
