NM-Mount – NanoMag

Ultra-Small Magnetic Mount for Mobile Antenna Whips

Find Out More
Data Sheet
CE Certification

Other Files

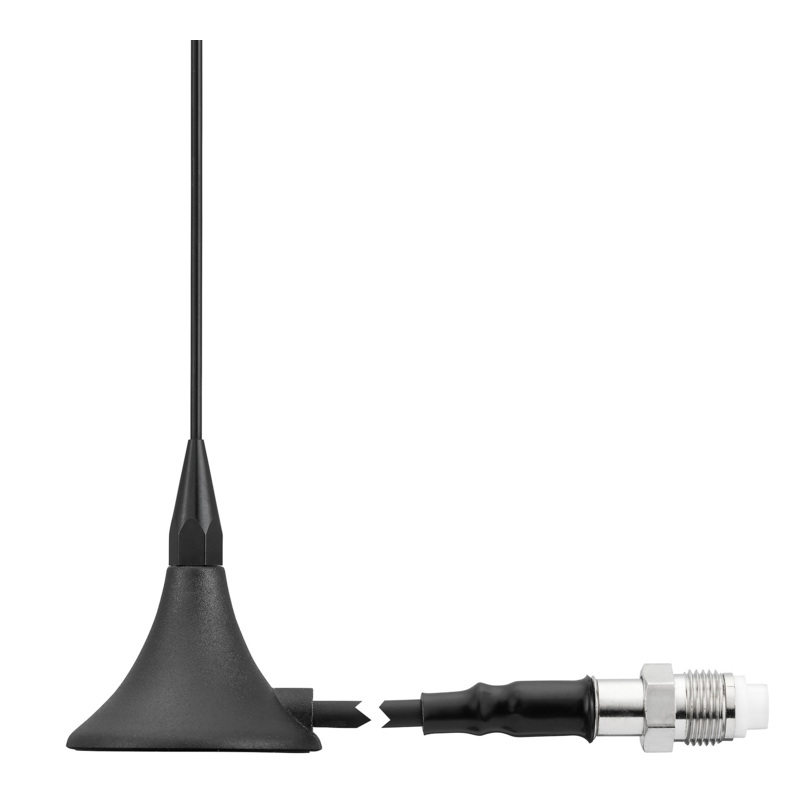

NM-Mount - NanoMag
Electrical
Frequency 450 MHz, 900 MHz and 1800 MHz bands
Application Magnetic mount for specially designed mobile antennas
Mechanical
Connection(s) FME system
Materials Cu-nite brass
Environment-proof plastics
Cable 3 m RG 174 (permanently attached)
Colour Black
Historic Brand Amphenol Procom
Dimensions Total height : Approx. 24 mm
Diameter : Approx. 27 mm
Whip Connection M3 thread stud
Weight Approx. 0.056 kg / 0.12 lb.
Mounting Centre of vehicle roof for best omnidrectionalcoverage
Max. Car Speed MU 1-NM, MU 901-NM : 120 km/h
MU 904-NM, MU 1804-NM : 100 km/h
  • Ultra-small magnetic mount for specially designed low-weight antenna whips.
  • Very high magnet power compared to size of mount.
  • M3-thread whip-fastening system.
  • Permanently attached 3 m RG 174 cable terminated with FME-connector.
  • Whips available for the 450 MHz, 900 MHz and 1800 MHz bands.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Ultra-Small Magnetic Mount for Mobile Antenna Whips 130000343

Login required

You need to be logged in into your account to view downloadable documents.

Ordering
Generally Order this magnetic base by simply asking for NM-Mount.
For complete antennas Please see “MU 1-NM/…”, “900 MHz NM-Series”, and “MU 1804-NM”.
