NTA 3E-SHT

Short Active three-frequency NAVTEX Receiving Antenna

Find Out More
Data Sheet
CE Certification

Other Files

NTA 3E-SHT
Electrical
Power Supply 9 to 15 V DC / 20 mA
Model NTA 3E-SHT
Frequency 490 kHz, 518 kHz and 4209.5 kHz
Antenna Type Active E-field narrow-band three-frequency NAVTEX antenna
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Wind Area 0.013 sq. m / 0.14 sq. ft.
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour Marine white
Historic Brand Amphenol Procom
Height Approx. 530 mm / 20.87 in.
Wind Load 17 N (160 km/h)
Dia. At Top End 21 mm / 0.83 in.
Weight Approx. 0.35 kg / 0.77 lb.
Dia. At Bottom End 23 mm / 0.91 in.
Mounting On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets (see accessories )
  • Specially designed for the three NAVTEX frequencies 490 kHz, 518 kHz and 4209.5 kHz.
  • Built-in low-noise amplifier providing excellent impedance matching to the 50 Ω downlead cable.
  • Special band-pass filter based tuning circuitry to optimize the antenna for the NAVTEX frequencies and protect from possible interference from e.g. medium wave broadcast radio signals.
  • RF ground internally AC-coupled to mounting bracket preventing electrolytic corrosion.
  • Sturdy design to withstand the roughest weather and climate conditions.
  • Simple mounting using the 1” revolving nut system.
  • Wide varity of accessory mounting brackets available.
  • Junction kit for easy connection to receiver and DC power supply available (to be ordered separately).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Short Active three-frequency NAVTEX Receiving Antenna 110000235

Login required

You need to be logged in into your account to view downloadable documents.

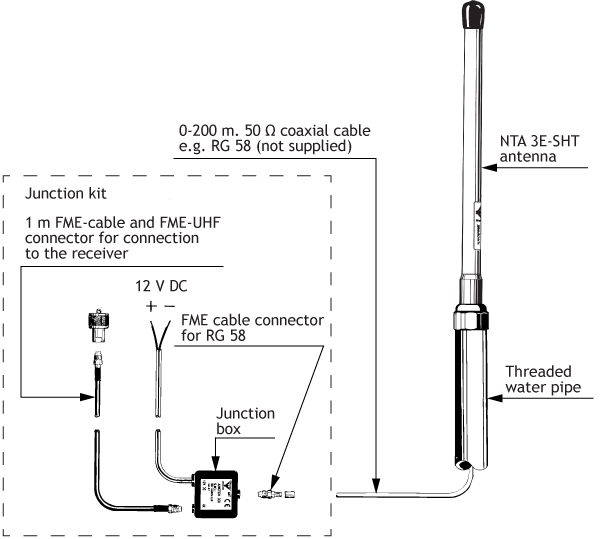

Mounting Details

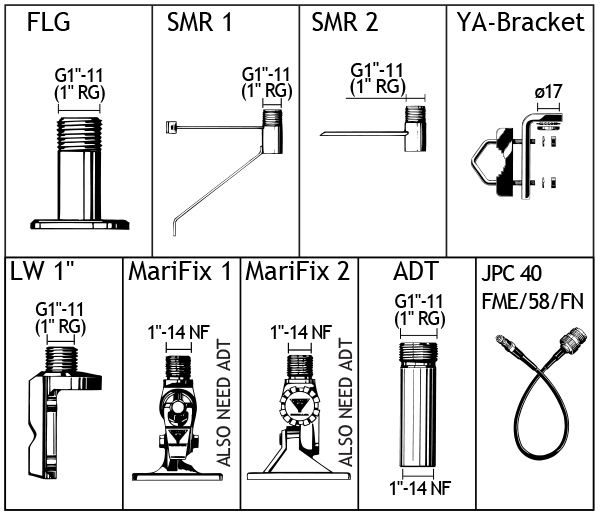

Accessories (To be ordered separately)

EU and UK Declaration of Conformity

Hereby  Amphenol Procom declare that the product type NTA 3E-SHT is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-NTA-3E-SHT.pdf
