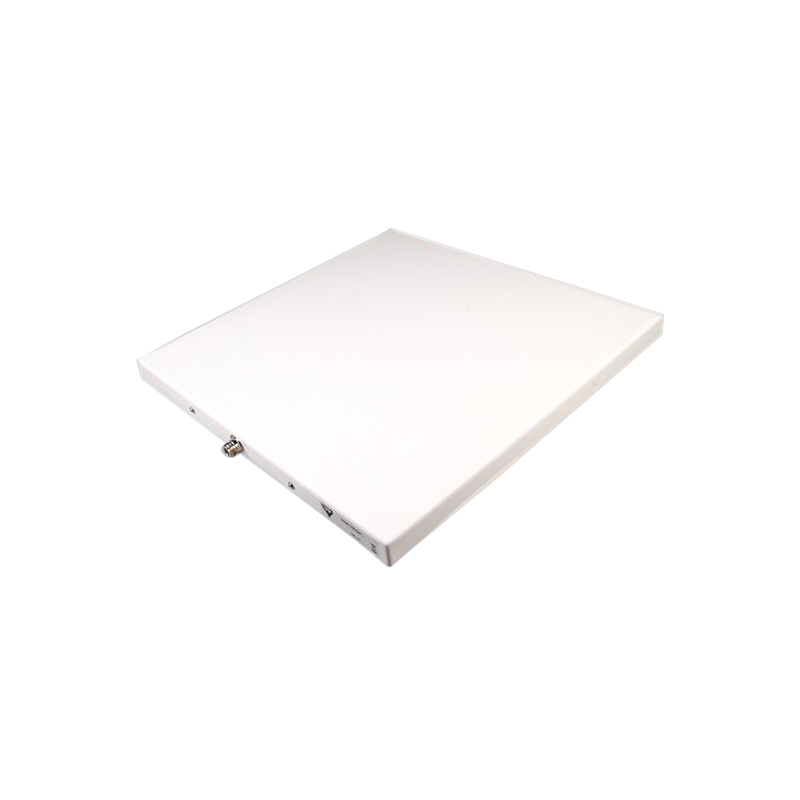

PCPI 70/xH/…

Indoor Left or Right Hand Circularly Polarized Patch Antennas for mounting on Wall or Ceiling

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PCPI 70/xH/...

Quickly identify the correct ordering code.

PCPI 70/xH/…
Electrical
Model PCPI 70/xH/…
Frequency 380 – 470 MHz covered by four models
Antenna Type Left or right hand circularly polarized patch antenna
Max. Input Power 100 W
3 dB Beamwidth, H-Plane 80 °
Polarisation Circular
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 7 dBic (5 dBi)
In iBwave Yes
Environmental
Operating temperature range -30 °C to +75 °C
Storage temperature range -40 °C to +75 °C
Humidity < 90% non-condensing
Ingress Protection IP55
Mechanical
Connection(s) N(f)
Materials Cover : PS (white)
Chassis : Aluminium
Colour Marine white
Historic Brand Amphenol Procom
Dimensions Approx. 415 x 415 x 25 mm
/ 16.34 x 16.34 x 0.98 in.
Weight Approx. 1.8 kg / 3.97 lb.
Mounting For mounting on wall or ceiling 4.5 mm dia x 20 mm (4 holes)
  • Low-profile antenna for the 450 MHz band.
  • PCPI 70/xH/… is a Left or Right Hand Circularly Polarized patch antenna for indoor use.
  • Circularly polarized antenna is chosen to avoid out-of-phase signals.
  • Reduces flutter considerably.
  • Specially designed for closed rooms.
  • Covers approx. 20 MHz with a radiation of approx. 7 dBic (5 dBi in each E- and H-plane).
  • Full size ½ λ patch antennas.
  • The antennas are carefully sealed with a discrete cover.
  • The connector is placed at one side to enable mounting close to a wall or a ceiling.
  • Chassis also available in stainless steel PCPI 70R/xH/… (see ordering designations).
  • Connection also available on backside (see overleaf).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

PCPI 70/LH/s

 100000146 380 – 400 MHz

PCPI 70/LH/f

 100000147 410 – 430 MHz

PCPI 70/LH/l

 100000148 430 – 450 MHz

PCPI 70/LH/h

 100000149 450 – 470 MHz

PCPI 70/RH/s

 100000145 380 – 400 MHz

PCPI 70/RH/f

 100000143 410 – 430 MHz

PCPI 70/RH/l

 100000144 430 – 450 MHz

PCPI 70/RH/h

 100000150 450 – 470 MHz

PCPI 70R/LH/s

 100000302 380 – 400 MHz

PCPI 70R/LH/f

 100000303 410 – 430 MHz

PCPI 70R/LH/l

 100000304 430 – 450 MHz

PCPI 70R/LH/h

 100000305 450 – 470 MHz

PCPI 70R/RH/s

 100000306 380 – 400 MHz

PCPI 70R/RH/f

 100000151 410 – 430 MHz

PCPI 70R/RH/l

 100000307 430 – 450 MHz

PCPI 70R/RH/h

 100000152 450 – 470 MHz

PCPI 70/LH/s-BC

 100000337 380 – 400 MHz

PCPI 70/LH/f-BC

 100000338 410 – 430 MHz

PCPI 70/LH/l-BC

 100000339 430 – 450 MHz

PCPI 70/LH/h-BC

 100000340 450 – 470 MHz

PCPI 70/RH/s-BC

 100000333 380 – 400 MHz

PCPI 70/RH/f-BC

 100000334 410 – 430 MHz

PCPI 70/RH/l-BC

 100000335 430 – 450 MHz

PCPI 70/RH/h-BC

 100000336 450 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

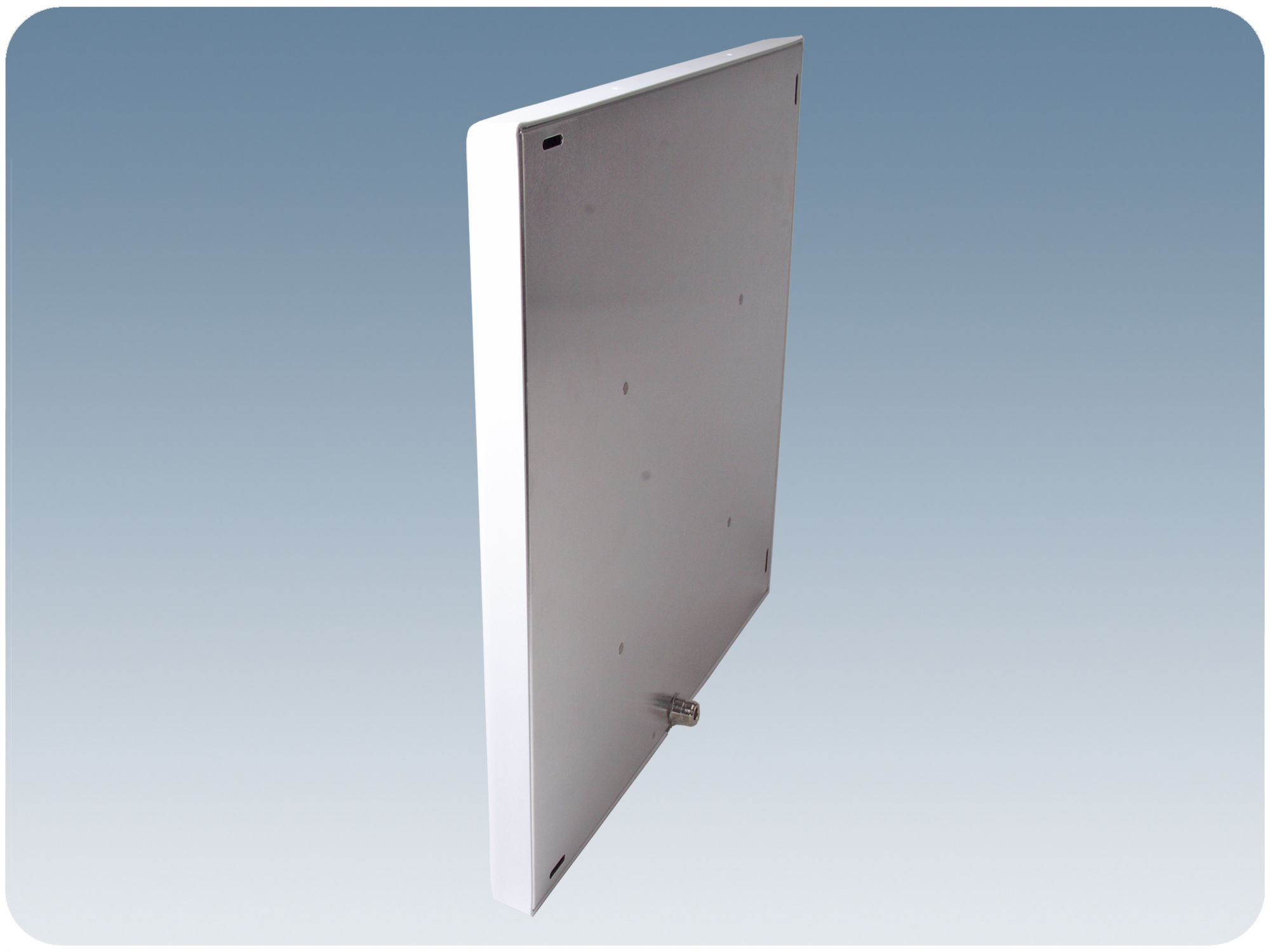

Connection on backside

PCPI 70!xH!... BC

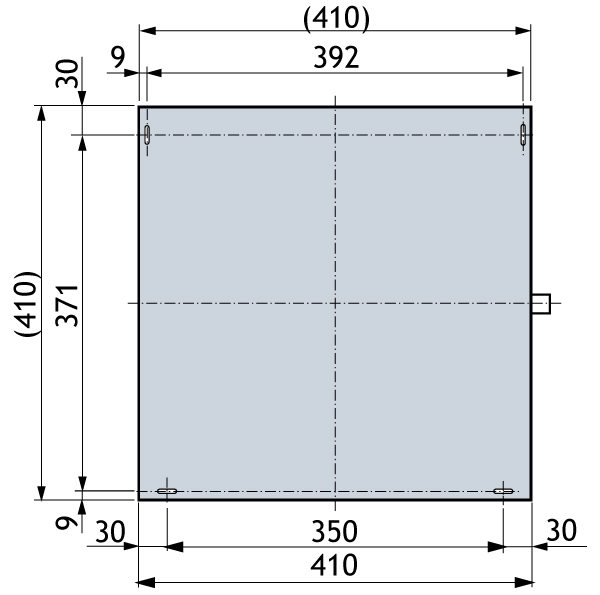

Mounting Details (Dimensions excl. cover)

All dimensions are given in mm.

Typical gain and VSWR curves

Typical Radiation Pattern (E-Plane)

This curve shows the radiation patterns in the vertical plane.

Typical Radiation Pattern (H-Plane)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
