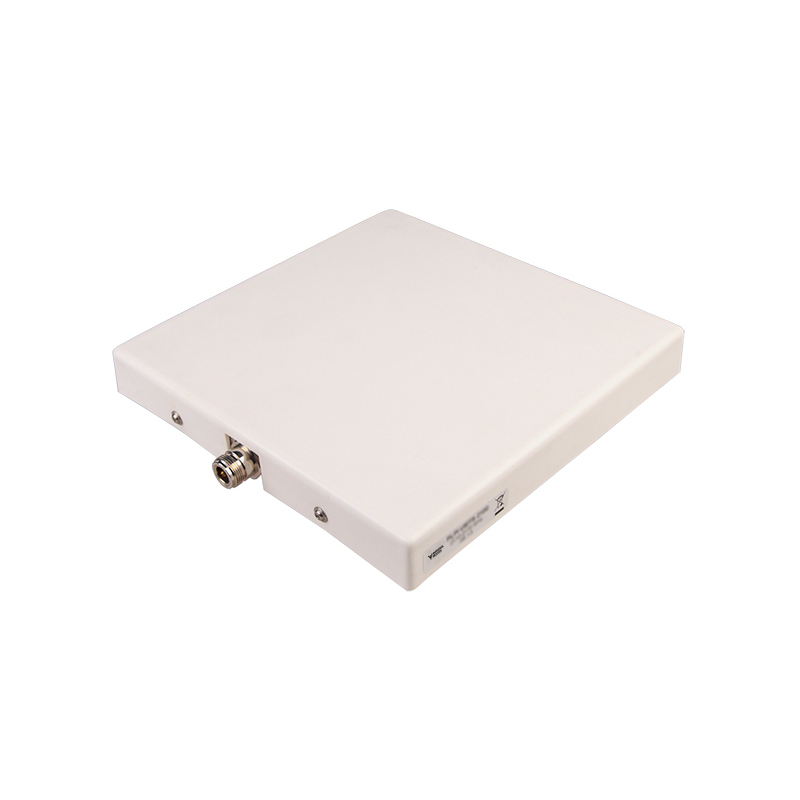

Indoor Left or Right Hand Circularly Polarized Patch Antenna for mounting on Wall or Ceiling

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PCPI 800/xH

Quickly identify the correct ordering code.

PCPI 800/xH
Electrical
Model PCPI 800/xH
Frequency 800 – 880 MHz
Antenna Type Left or right hand circularly polarized patch antenna
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 80 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 7 dBic (5 dBd)
In iBwave Yes
Mechanical
Connection(s) N(f)
Materials Cover : ABS
Chassis : Aluminium
Colour Marine white
Historic Brand Amphenol Procom
Dimensions Approx. 204 x 204 x 28 mm /
8.03 x 8.03 x 1.10 in.
Weight Approx. 0.4 kg / 0.88 lb.
Mounting For mounting on wall or ceiling 4.5 mm x 20 mm dia. (4 holes)
  • Low profile antenna for the 800 MHz Band.
  • PCPI 800/xH is a Left or Right Hand Circularly Polarized patch antenna for indoor use.
  • Circularly polarized antenna is chosen to avoid out-of-phase signals.
  • Specially designed for closed rooms.
  • Covers approx. 80 MHz with a radiation of approx. 7 dBic.
  • The antenna is carefully sealed with a discreet white cover.
  • The connector is placed at one side to enable mounting close to a wall or a ceiling.

MOUNTING DETAILS (Dimensions excl. cover)

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane.

This curve shows the radiation patterns in the vertical plane.

TYPICAL RADIATION PATTERN (H-PLANE)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

Model Product No. Additional Information Add To Quote

PCPI 800/LH

 100000396 Left Hand circularly polarized patch antenna

PCPI 800/RH

 100000397 Right Hand circularly polarized patch antenna
