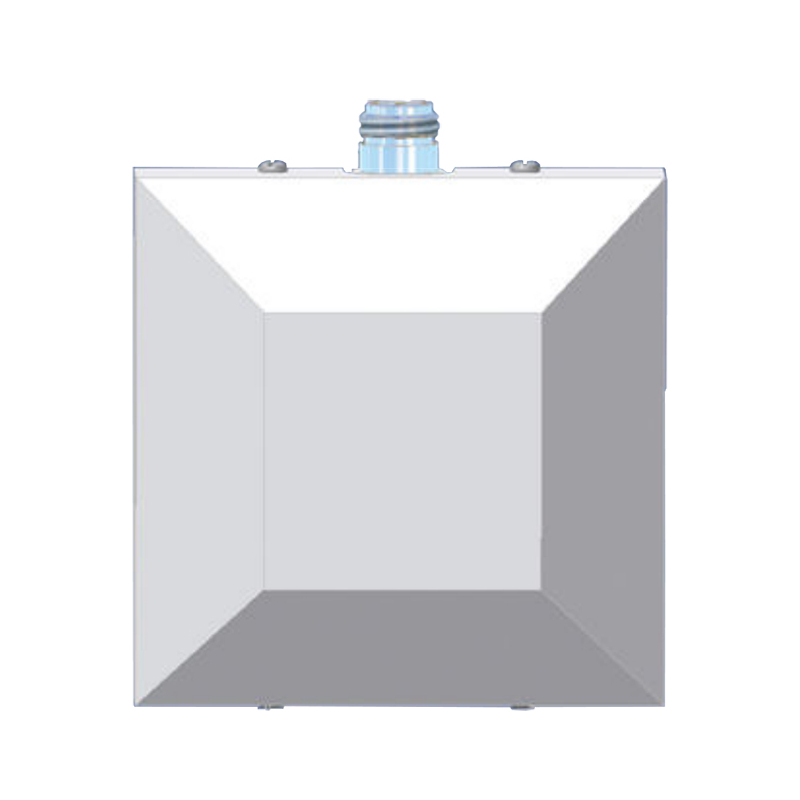

PCPI GPS

Indoor Right Hand Circularly Polarized Patch Antenna for mounting on Wall or Ceiling

Find Out More
Data Sheet
CE Certification

Other Files

PCPI GPS
Electrical
Model PCPI GPS
Frequency 1559 – 1610 MHz
Antenna Type Right hand circularly polarized antenna
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 75 °
Polarisation Circular
3 dB Beamwidth, E-Plane 78 °
Impedance 50 Ω
Gain 7 dBic
VSWR ≤ 2.0:1
Mechanical
Connection(s) N(f)
Materials Cover : PS
Chassis : Aluminium
Colour Marine white
Historic Brand Amphenol Procom
Dimensions 104 x 104 x 40 mm / 4.09 x 4.09 x 1.57 in.
Weight Approx. 0.4 kg / 0.88 lb.
Mounting For mounting on wall or ceiling 4.5mm x 10 mm (4 holes)
  • Low profile antenna for the GPS band.
  • PCPI GPS is a Right Hand Circularly Polarized patch antenna for indoor use.
  • Circularly polarized antenna is chosen to avoid out-of-phase signals.
  • Specially designed for closed rooms.
  • Full size 2 λ circular patch antenna.
  • The antenna is carefully sealed with a discreet white cover.
  • The connector is placed at one side to enable mounting close to a wall or a ceiling.

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane.

This curve shows the radiation patterns in the vertical plane.

TYPICAL RADIATION PATTERN (H-PLANE)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

MOUNTING DETAILS (Dimensions excl. cover)

Model Product No. Add To Quote
Indoor Right Hand Circularly Polarized Patch Antenna for mounting on Wall or Ceiling 102000001

Login required

You need to be logged in into your account to view downloadable documents.

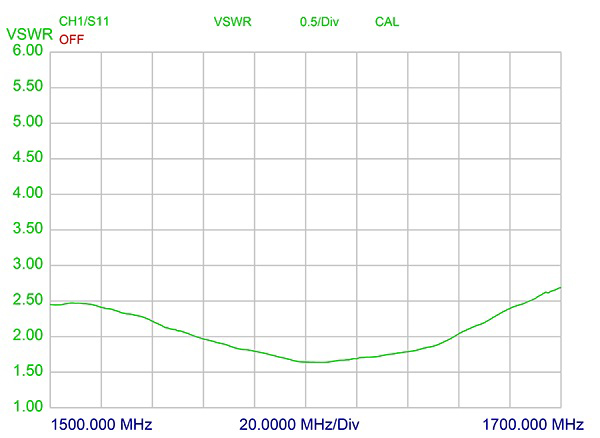

Typical VSWR curve

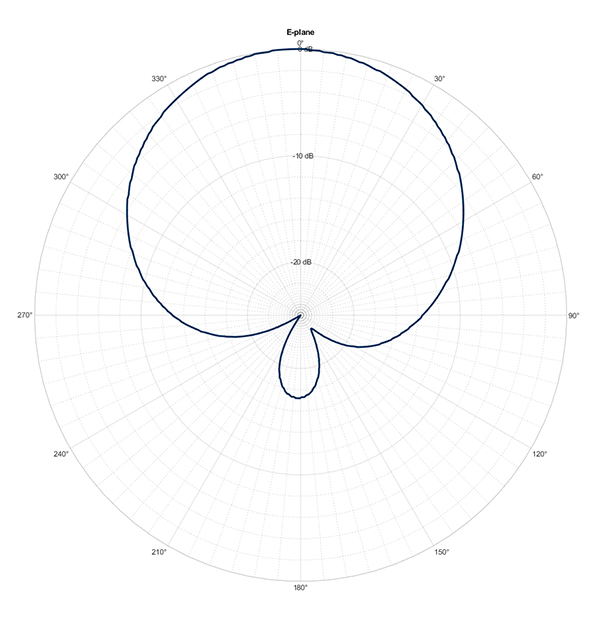

Typical Radiation Pattern (E-Plane)

PCPI GPS E PLANE

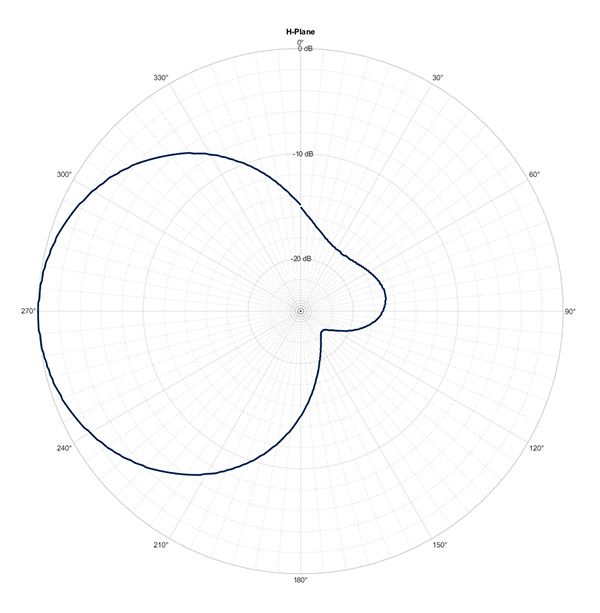

Typical radiation pattern (H-PLANE)

PCPI GPS H PLANE

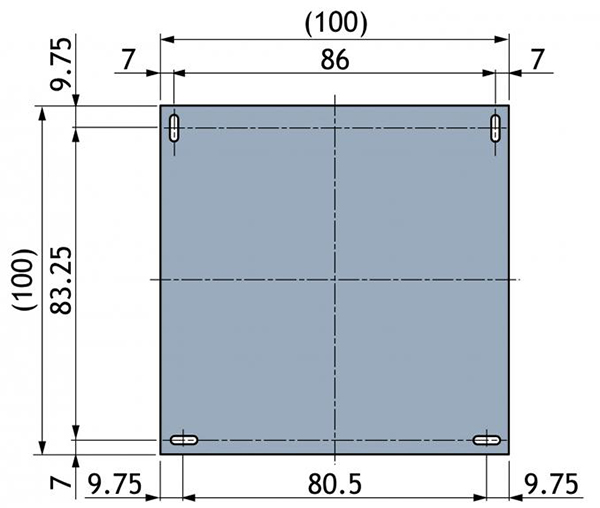

Mounting Details (Dimensions excl. cover)

PCPI GPS Mounting details

All dimensions are given in mm.
