PCPI TETRA/LTE 800/RH

Indoor Right Hand Circularly Polarized Antenna for the TETRA and LTE Bands

Find Out More
Data Sheet
CE Certification

Other Files

PCPI TETRA/LTE 800/RH
Electrical
Model PCPI TETRA/LTE 800/RH
Frequency TETRA: 380 – 430 MHz
LTE: 790 – 850 MHz
Antenna Type Right hand circularly polarized antenna
Max. Input Power 35 W
3 dB Beamwidth, H-Plane 60 °
Polarisation Circular
3 dB Beamwidth, E-Plane 60 °
Impedance 50 Ω
Gain 7 dBic (5 dBi)
VSWR < 2.0:1
In iBwave Yes
Environmental
Operating temperature range -30 °C to +75 °C
Mechanical
Connection(s) N(f)
Materials Cover: PS (white)
Chassis: Aluminium
Colour Marine white
Historic Brand Amphenol Procom
Dimensions Approx. 415 x 415 x 70 mm / 16.34 x 16.34 x 2.76 in.
Weight Approx. 1.9 kg / 4.19 lb.
Mounting 4.5 mm dia. (4 holes)

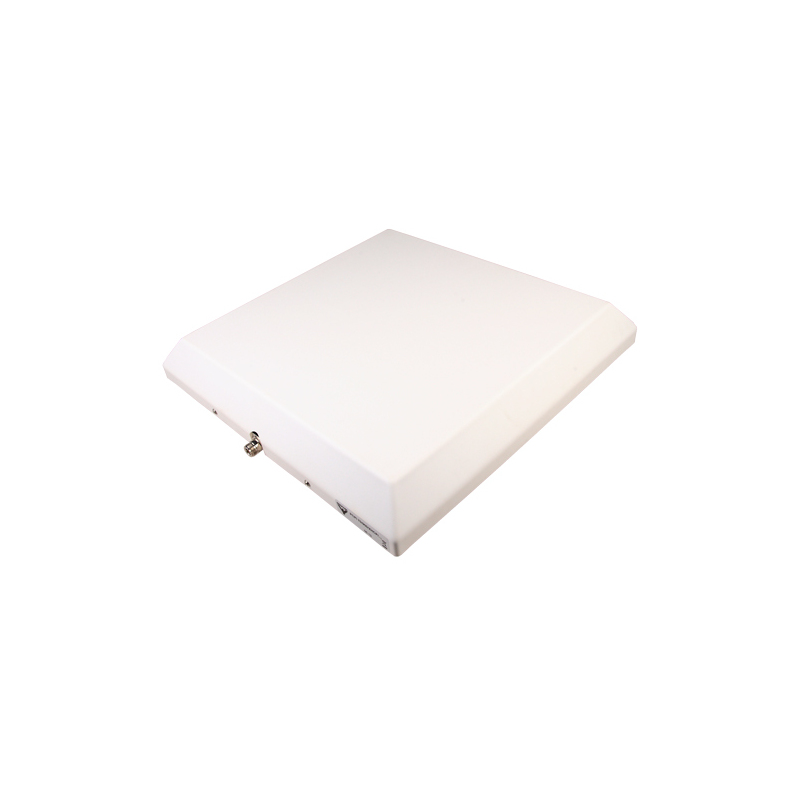

  • Dual-band low-profile antenna for indoor use.
  • Right hand circulary polarized,7 dBic (5 dBi in each E- and H-plane) antenna specially designed for closed rooms. For use e.g. on ceilings and walls inside ships and buildings.
  • Circular polarization is chosen to improve link quality.
  • Built-in diplexers with low insertion loss make it possible to have only one connector.

BUILT-IN DIPLEXER

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

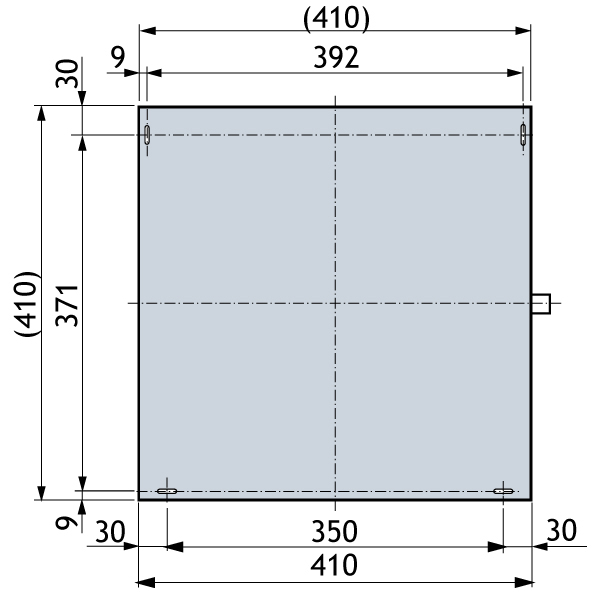

MOUNTING DETAILS (Dimensions excl. cover)

MOUNTING & PATTERN

This curve shows the radiation patterns in the vertical plane.

This curve shows the radiation patterns in the vertical plane.

TYPICAL RADIATION PATTERN (H-PLANE)

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane.

This curve shows the radiation patterns in the vertical plane.

TYPICAL GAIN AND SWR CURVES

TYPICAL GAIN AND SWR CURVES

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
