PHY-TETRA-2-FME-…

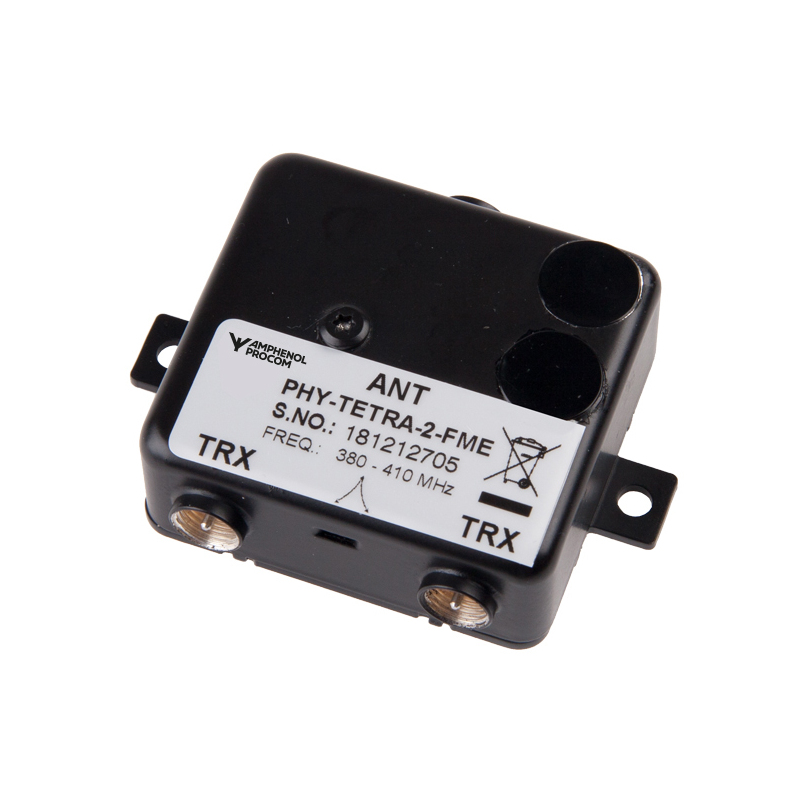

TETRA combiner with VSWR adaption/adjustment network

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PHY-TETRA-2-FME-...

Quickly identify the correct ordering code.

PHY-TETRA-2-FME-…
Electrical
Model PHY-TETRA-2-FME-…
Frequency 380 – 410 MHz or 400 – 430 MHz
Max. Input Power
20 W (when used as power divider)10 W (when used as power combiner)
Impedance 50 Ω
Nominal Divider Loss 3 dB
VSWR < 1.3:1
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) FME-connectors
Historic Brand Procom
Dimensions 50.5 x 66 (including bottom plate and connectors) x 19.5 mm / 1.99 x 2.59 (including bottom plate and connectors) x 0.77 in.
Weight Approx. 0.08 kg / 0.18 lb.
Mounting 4 mm dia. (4 holes)
  • Combiner for coupling of two TETRA mobile transceivers on one common antenna.
  • Factory-adjusted to either 380 – 410 MHz or 400 – 430 MHz.
  • Compact dimensions – especially suitable for mobile applications.
  • FME-connectors for direct connection of FME-cable without extra adapter.
  • For parallel operation of two two-way communication radios (transceivers) where highest possible decoupling (isolation) is necessary.
  • Integrated VSWR adjustment network for optimization of isolation in the frequency range of 380 – 410 MHz or 400 – 430 MHz. Via the adjustment network the effective VSWR of the antenna can be optimized and consequently the isolation between the ports of the combiner clearly improved.
  • Isolation obtainable with normal antenna VSWR 1.5:1 to 2.0:1 on the Antenna port is 25 – 30 dB isolation between the TRX ports.
    If a perfect 50 Ohm match on the Ant. port = VSWR 1.0:1 is achieved, a higher isolation of > 50 dB can be obtained.
  • The adjustment of the VSWR adjustment network takes place via built-in variable capacitors.
  • Max. TETRA transmitter power 2 x 10 W.
  • Also usable as equal power divider for max. 20 W.
  • Very small ripple over the total frequency range.

MOUNTING DETAILS

TYPICAL RESPONSE CURVE ANTENNA MU 3-BZ/TETRA/l (with 1.5 m cable)

TYPICAL RESPONSE CURVE ANTENNA MU 1-Z/s (with 1.5 m cable)

TYPICAL RESPONSE CURVE SWR 1

Model Product No. Model Add To Quote

PHY-TETRA-2-FME-380-410

 210001836 PHY-TETRA-2-FME-380-410

PHY-TETRA-2-FME-400-430

 210001837 PHY-TETRA-2-FME-400-430
