PHY-TETRA-4-FME-…

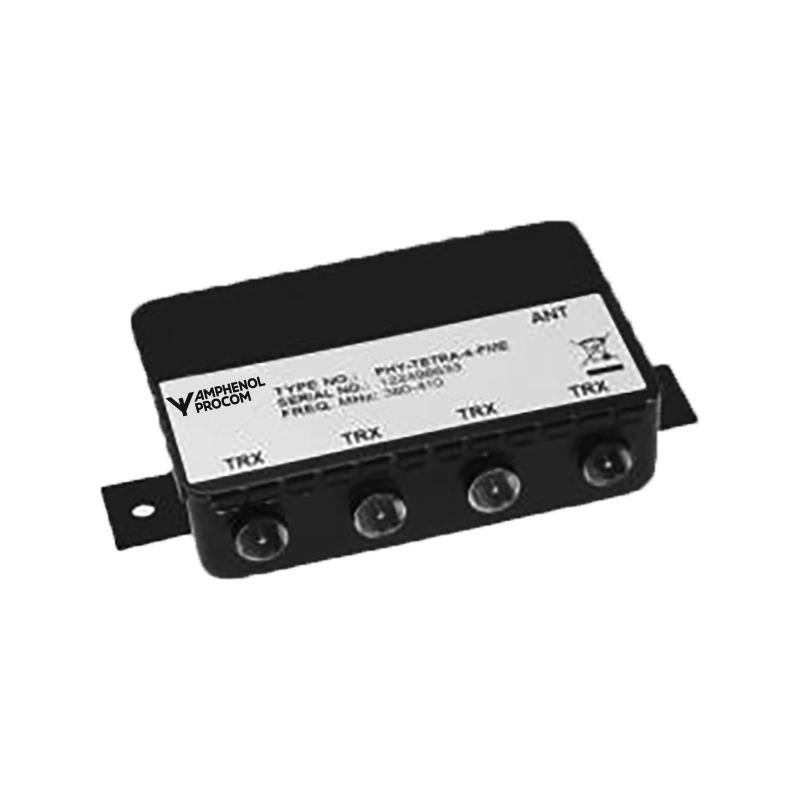

TETRA combiner with VSWR adaption/adjustment network

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PHY-TETRA-4-FME-...

Quickly identify the correct ordering code.

PHY-TETRA-4-FME-…
Electrical
Model PHY-TETRA-4-FME-…
Frequency 380 – 410 MHz or 400 – 430 MHz
Max. Input Power 1 x 20 W if used as divider
4 x 5 W if used as coupler
Impedance 50 Ω
Nominal Divider Loss 6 dB
Total Loss ≤ 7 dB
VSWR <1.5 (Typ. < 1.25)
No. of channels 4
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) FME(m) – connectors
Historic Brand Amphenol Procom
Dimensions 56.7 x 100 (including bottom plate and connectors) x 22 mm /
2.23 x 3.94 (including bottom plate and connectors) x 0.87 in.
Weight Approx. 0.14 kg / 0.31 lb.
Mounting 4 mm dia. (4 holes)
  • Combiner for coupling of four TETRA mobile transceivers on one common antenna.
  • Factory-adjusted to either 380 – 410 MHz or 400 – 430 MHz.
  • Compact dimensions – especially suitable for mobile applications.
  • FME-connectors for direct connection of FME-cable without extra adapter.
  • For parallel operation of four two-way communication radios (transceivers) where highest possible decoupling (isolation) is necessary.
  • Integrated VSWR adjustment network for optimization of isolation in the frequency range of 380 – 410 MHz or 400 – 430 MHz. Via the adjustment network the effective VSWR of the antenna can be optimized and consequently the isolation between the ports of the combiner clearly improved.
  • High isolation obtainable: Up to 60 dB (Dependent on the VSWR of the connected antenna).
  • The adjustment of the VSWR adjustment network takes place via built-in variable capacitors.
  • Max. TETRA transmitter power 4 x 5 W.
  • Also usable as equal power divider for max. 20 W.
  • Very small ripple over the total frequency range.

MOUNTING DETAILS

TYPICAL RESPONSE CURVE SWR 1

TYPICAL RESPONSE CURVE ANTENNA MU 1-Z/s (with 1.5 m cable)

TYPICAL RESPONSE CURVE ANTENNA MU 3-BZ/TETRA/l (with 1.5 m cable)
