PLPO/TETRA/…

Outdoor Linearly Polarized low profile Antennas for mounting on Ceiling or Mast

Other Files

Electrical
Model	PLPO/TETRA/s-fPLPO/TETRA/l-hPLPO/TETRA/s
Frequency	380 – 430 MHz430 – 470 MHz380 – 410 MHz
Antenna Type	Linearly polarized patch antenna
Max. Input Power	100 W
3 dB Beamwidth, H-Plane	80 °
Polarisation	Vertical
3 dB Beamwidth, E-Plane	80 °
Impedance	50 Ω
Gain	4.8dBd / 7dBi
VSWR	< 2.0:1< 2.0:1< 1.6:1
Front-To-Back Ratio	21 dB17 dB19 dB
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s)	HCM040EA20, 040EA10
In iBwave	Yes

Mechanical
Connection(s)	N(f)
Materials	Cover : ABS (white) Chassis : Aluminium
Colour	Marine white
Historic Brand	Amphenol Procom
Dimensions	Approx. 345 x 345 x 60 mm / 13.58 x 13.58 x 2.36 in.
Wind Load	173 N (160km/h)
Weight	Aprox. 2.3 kg / 5.07 lb.
Mounting	For mounting on wall – 5 mm dia. (three holes) (see mounting details) or mast on 40 – 54 mm / 1.57 – 2.13 in. dia. mast tube.

Low-profile antenna for the 380 – 470 MHz band.

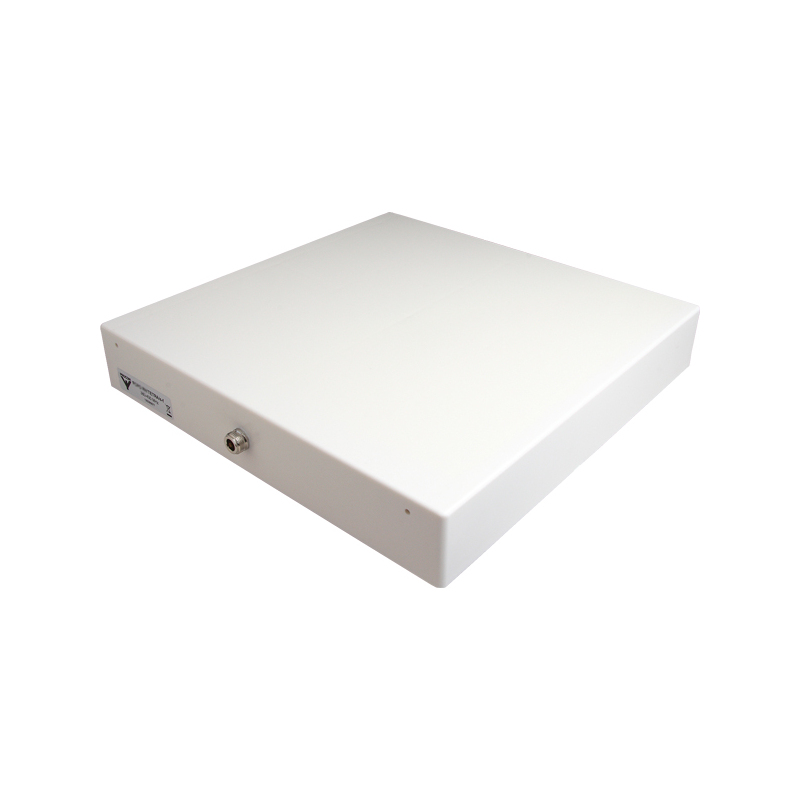

PLPO/TETRA/… is a patch antenna for outdoor use.
Covers approx. 50 MHz with a radiation of 7 dBi.
The antenna is carefully sealed with a discreet cover.
The connector is placed at one side to enable mounting closed to a wall.
Including wall mounting bracket. PATCH-MAMO and PATCH/WAMO
to be ordered separately.

MOUNTING DETAILS (PATCH-WAMO)
