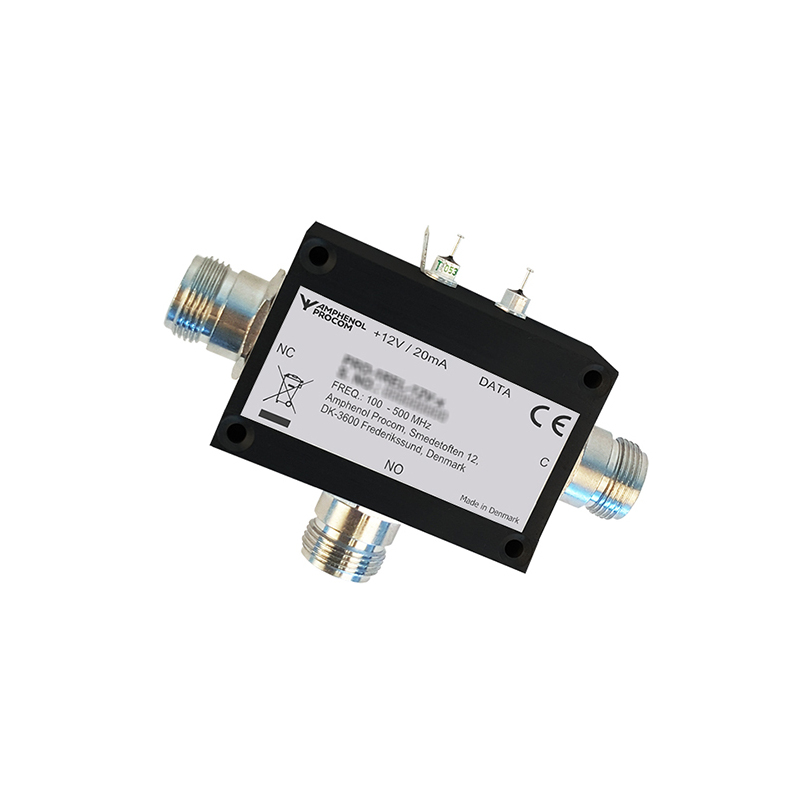

PRO-1REL-12V-…

Relay switch for 12 V supply

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-1REL-12V-...

Quickly identify the correct ordering code.

PRO-1REL-12V-…
Electrical
Model PRO-1REL-12V-…
Frequency < 500 MHz
Type Relay
Max. Input Power 50 W
Insertion Loss < 0.2 dB
Isolation > 50 dB
VSWR < 1.25:1 (100 - 400 MHz)
< 1.5:1 (400 - 500 MHz)
Supply Voltage DC 11.5 V to 15 V
Shift Voltage (Data) 3V → supply voltage
Current Consumption < 20 mA
Shift Time < 5 ms
Mechanical
Connection(s) N(f), BNC(f) or TNC(f)
Historic Brand Procom
Dimensions 89 x 40 x 29 mm / 3.5 x 1.57 x 1.14 in. (incl. connectors)
Weight 0.15 kg / 0.33 lb.
Mounting ø3.2 mm (4 holes)
  • Relay switch has a connection to SHIFT RELAY, at 3 V.
  • Great isolation 50 dB @ 500 MHz.
  • Low insertion loss 0.2 dB @ 500 MHz.
  • PRO-1REL-12V-… is a broadband SPDF Coaxial switch designed to switch RF signal from a common input to either of two outputs. The characteristic impedance is 50 ohms.
  • PRO-1REL-12V-… is available with TNC-, N- or BNC-female connectors.

FUNCTIONAL DIAGRAM

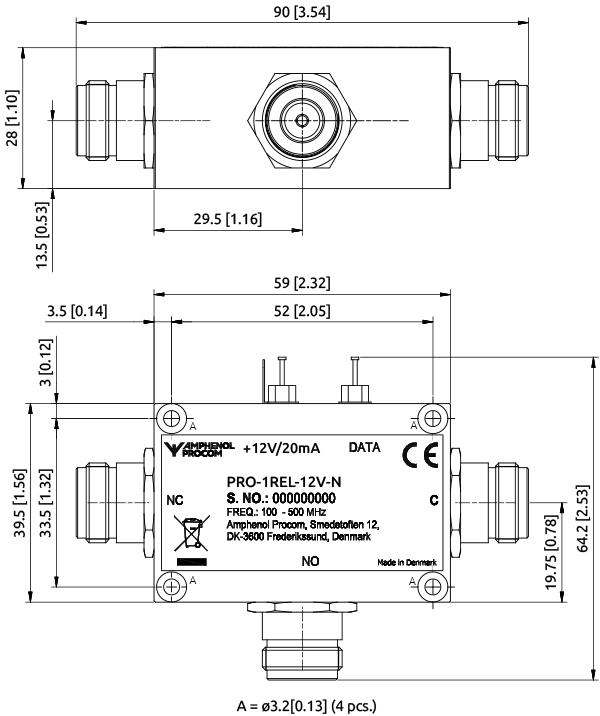

MOUNTING DETAILS

Model Product No. Connection(s) Add To Quote

PRO-1REL-12V-TNC

 210001450 TNC

PRO-1REL-12V-N

 210001615 N

PRO-1REL-12V-BNC

 210001822 BNC
