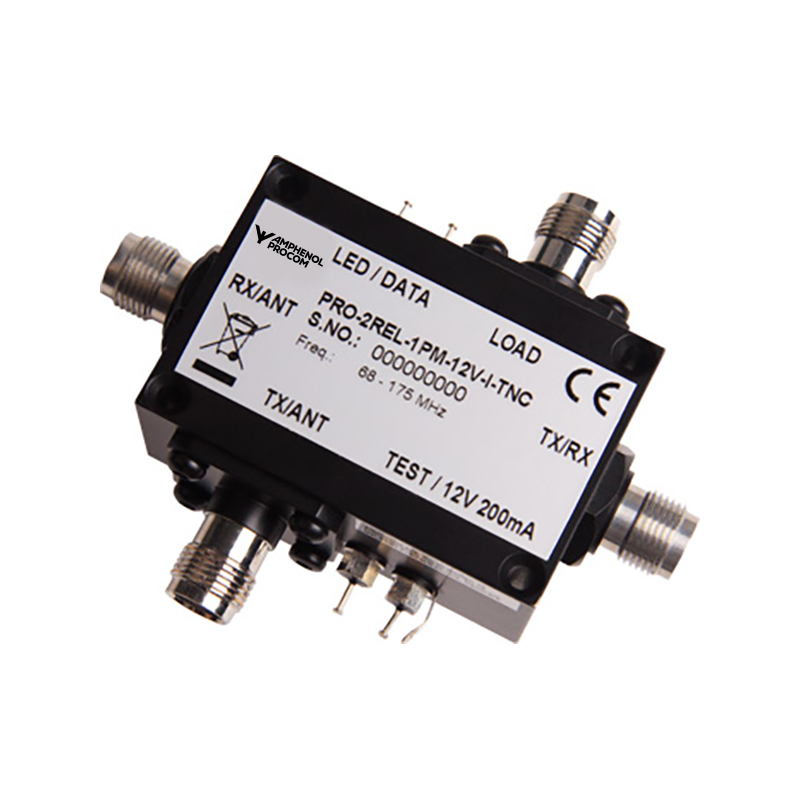

| Electrical | |
| Power Supply | 11.5 V to 15 V |
|---|---|
| Model | PRO-2REL-1PM-12V-…-TNC |
| Frequency | 68 – 175 MHz or 300 – 470 MHz |
| Type | Relay |
| Max. Input Power | Min. 2 W Max. 40 W |
| Insertion Loss | < 0.5 dB |
| Isolation | > 50 dB |
| VSWR | < 1.5:1 |
| Current Consumption | 200 mA |
| Shift Time | < 5 ms |
| Environmental | |
| Lifetime | 10^7 operations |
|---|---|
| Mechanical | |
| Connection(s) | TNC(m) |
|---|---|
| Historic Brand | Procom |

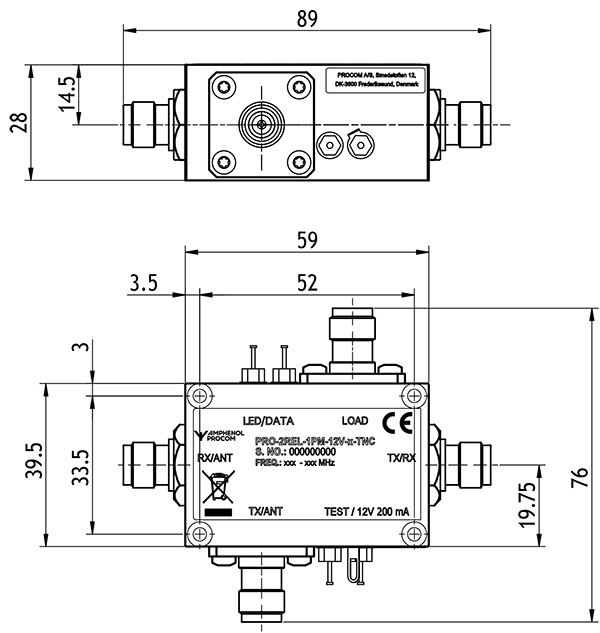

| Dimensions | 90 x 77 x 28 mm / 3.54 x 3.03 x 1.10 in. (incl. connectors) |
| Weight | Approx. 0.15 kg / 0.33 lb. |
| Mounting | 3.2 mm dia. (4 holes) |
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|
PRO-2REL-1PM-12V-L-TNC(m) |
210001814 | 68 – 175 MHz | |
|
PRO-2REL-1PM-12V-H-TNC(m) |
210001448 | 300 – 470 MHz | |
|
PRO-2REL-1PM-12V-L-TNC/N(m) |
210002378 | 68 – 175 MHz |
You need to be logged in into your account to view downloadable documents.

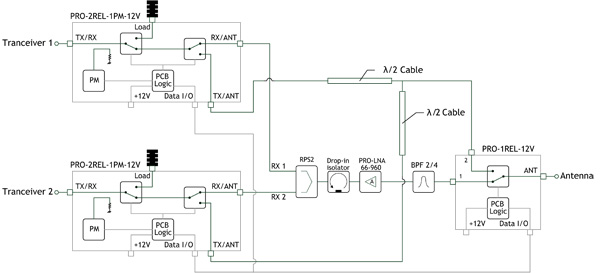

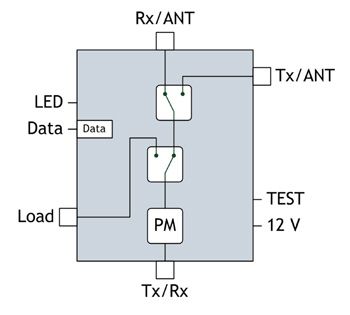

The PRO-2REL-1PM-12V-…-TNC can be used to make a Simplex Relay Combiner, for switching between the Tx and Rx. The simplex combiner gives the possibility to combine two or more simplex radios to one antenna. In the Rx path a bandpass filter, an isolator and LNA is included.
The simplex combiner safeguards so that both radio transmitters do not have access to the antenna at the same time, but the two radios are still able to listen on the Rx channel simultaneously. The first radio that enables the transmitter will be able to transmit while the output of the other transmitter will switch to an internal load.
When the first radio that enabled the transmitter stops transmitting, the other transmitter is switched to the antenna and allowed to transmit.
If no radio is transmitting, the system is in listening mode and both radios are able to receive the signal from the antenna.
