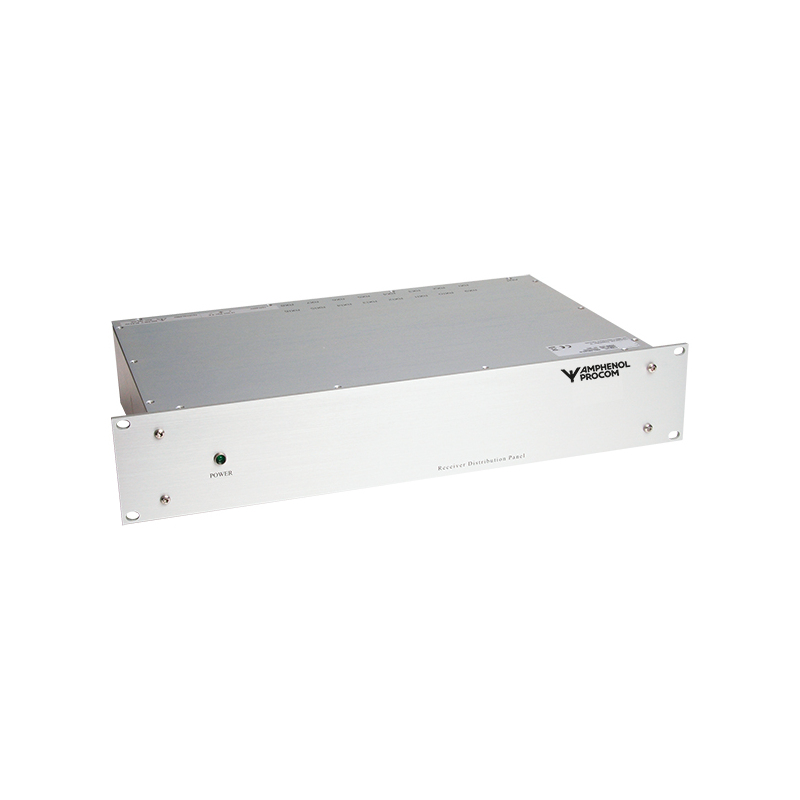

PRO-AR 12 & 16 channel

19″ Rack-Mountable Receiver Multicoupler series for the VHF through low UHF bands 30 MHz – 960 MHz

Find Out More
Data Sheet
CE Certification

Other Files

PRO-AR 12 & 16 channel
Electrical
Power Supply 230 V AC models :
198 to 264 V AC 47 – 63 Hz/ Max. 0.16 A
115 V AC models :
99 to 132 V AC 47 – 63 Hz/ Max. 0.32 A
Model
PRO-AR12G-N
PRO-AR16G-NPRO-AR8G-N (To be discontinued)
PRO-AR12G-N (Will stay)
PRO-AR16G-N (Will stay)
Gain (Input To All Outputs)
2 dB2 dB
Frequency 30 – 960 MHz
Gain variance
< ±2.0 dB< ±2.0 dB
Max. Output Power @ 1 dB Compression (P1dB)
@ 30 MHz > 11 dBm
@ 174 MHz > 12 dBm
@ 400 MHz > 16 dBm
@ 960 MHz > 12 dBm@ 30 MHz > 11 dBm
@ 174 MHz > 12 dBm
@ 400 MHz > 16 dBm
@ 960 MHz > 12 dBm
Noise Figure, Amplifier
< 6.0 dB< 6.0 dB
Output 3. Order Intercept point (OIP3)
> 25 dBm> 25 dBm
Impedance 50 Ω
Output 2. Order Intercept point (OIP2)
> 50 dBm> 50 dBm
Max. Input Power (dBm) 18 dBm
Isolation between outputs 30 – 800 MHz : > 20 dB
800 – 960 MHz : > 18 dB
Input VSWR ≤ 2.5:1
With Preselector : ≤ 2.0:1, typ.<1.5:1
Input-Output Isolation
> 46 dB> 46 dB
Effective Noise Figure all outputs
< 8.0 dB< 8.0 dB
Output VSWR < 1.5:1
Current Consumption
PRO-AR12G-… : 1.4 to 1.7 A
PRO-AR16G-… : 1.8 to 2.1 APRO-AR8G-… : 1.0 to 1.3 A
PRO-AR12G-… : 1.4 to 1.7 A
PRO-AR16G-… : 1.8 to 2.1 A
DC Supply, 12 V DC types
10.8 to 14.4 V DC10.8 to 14.4 V DC
DC Supply, 24 V DC types
20 to 28 V DC20 to 28 V DC
DC Supply, 48 V DC types
40 to 60 V DCNot available
Environmental
Operating temperature range
-10 °C to +50 °C-10 °C to +50 °C
Storage temperature range -40 °C to +70 °C
Humidity < 90% non-condensing
Mechanical
Power Connector 3-terminal IEC60320-1 C14 (male)
Connection(s) N(f) (standard)
BNC(f), TNC(f) or SMA(f) on request
DC Connector 3-pole screw terminal block
Historic Brand Amphenol Procom
Dimensions PRO-AR12G-…, PRO-AR16G-… :
19″ x 2HU x 261 mm (482.6 x 88.1 x 261 mm) / (19 x 3.47 x 10.28 in.)
Altitude 0 to 2000 m
Weight PRO-AR12G-…, PRO-AR16G-… : Approx. 4.4 kg. / 9.70 lb.

  • OBS: The Receiver Multicouplers PRO-AR4 & PRO-AR8 versions are discontinued.
    They are replaced by the present new Dual Amplifier Receiver Multicouplers PRO-DAR4 & 8 channel.
    PRO-DAR (www.amphenolprocom.com)



  • For use where a number of receivers have to share the same antenna.
  • Active wideband receiver multicoupler for the VHF and low UHF bands with 1 input and 12 or 16 outputs.
  • Allows a number of receivers to share the same antenna without interaction and loss of signal.
  • Wide frequency range: Covers 30 MHz – 960 MHz.
  • If only a smaller frequency range is desired, a preselector filter can be built in to prevent possible interference from strong transmitters outside the frequency band of interest. Amphenol Procom offer a wide range of both band selective and narrow-band low-loss filters suitable for preselector use.
    Please refer to the preselector overview and specify frequency range when ordering.
  • Ultra-high dynamic range amplifier built in to compensate for loss in multicoupler network.
  • Push-pull high-current amplifier design ensures outstanding multicoupler linearity and high reject of especially even-order distortion products.
  • Handles even very strong RF signals with negligible levels of IM and harmonic distortion.
  • Low amplifier noise figure ensures lowest possible S/N deterioration of the received and distributed RF signals.
  • High isolation between receiver outputs.
  • Operates on 230 V AC or 115 V AC mains supply 12 V or 24 V DC supply.
  • Galvanically isolated power supply with power backup function.
  • Automatic switching to DC supply if the mains supply fails.
  • ”POWER ON” lamp on front.
  • Mains supply connector: IEC type fitted with noise filter.
  • DC supply connector: Terminal block fitted with noise filter.
  • RF connectors: N-female on all ports (other types on request).
  • 19” rack module housing.
  • Only 2 HU (1 height unit = 44.45 mm).
  • Comes as standard with anodized alu. color front plate.
  • As option available with black powder lacquered front plate.


    Please Note:
    Power cable is not included, must be ordered separately, see Accessories.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
19″ Rack-Mountable Receiver Multicoupler series for the VHF through low UHF bands 30 MHz – 960 MHz PRO-AR 12 & 16 channel

Login required

You need to be logged in into your account to view downloadable documents.

Ordering designations

Contact for system-specific product no.

Use the guide below to make the name of the PRO-AR you would like to buy. Remember to buy the Power cable separately if needed.

ModelFront plateNo. of outputsAC PowerDC PowerAntenna ConnectorRx ConnectorNumber of loadsPreselector filter
PRO-AR Blank = blank **
Black lacquered = B		 12 outputs = 12G
16 outputs = 16G		 230VAC = 230V
115VAC = 115V		 12VDC = 12V
24VDC = 24V
48VDC = 48V **		 N-female = N
TNC-female = TNC
BNC-female = BNC		 N-female = N
TNC-female = TNC
BNC-female = BNC		 No load = blank *
One 1W load = 1L
Two 1W loads = 2L
Three 1W loads = 3L		 No filter = blank
See tables with
preselectors below
Naming Example
PRO-AR B 12G -230V /12V -N /N -1L BPF 118-137-C

Naming Example: PRO-ARB12G-230V/12V-N/N-1L BPF 118-137 C

* Terminating unused ports will secure the electrical performances of the RMC.
** 48V version not available for PRO-AR 12 & 16 channels.
** “Blank” means sign omitted.

Accessories
ModelProduct No.
Power Cable EU , with Ground 210002646
Power Cable UK , with Ground 210002647
Power Cable US , with Ground 210002648
Standard Low-Loss Preselector Filters for PRO-AR…G

Band selective standard blackbox filters (other filters on request)

TYPE DESIGNATIONFILTER TYPEPASS BAND FREQUENCY RANGE
BPF 66-88 Band pass 66 – 88 MHz
BPF 88-108 Band pass 88 – 108 MHz
BPF 112-136 Band pass 112 – 136 MHz
BPF 118-137 Band pass 118 – 137 MHz
BPF 118-174 Band pass 118 – 174 MHz
BPF 136-225 Band pass 136 – 225 MHz
BPF 146-174 Band pass 146 – 174 MHz
BPF 225-400 Band pass 225 – 400 MHz
BPF 300-500 Band pass 300 – 500 MHz
BPF 800-1000 Band pass 800 – 1000 MHz
LP 174-FME Low pass 0 – 174 MHz
HP 380-FME High pass 380 – 1000 MHz

Narrow band standard BP filters:

TYPE DESIGNATIONFILTER TYPECENTER FREQUENCY -1 dB BANDWIDTH
BPF 4/4-[BW] Band pass To be ordered within 66 – 88 MHz To be specified as 2, 4 or 6 MHz
BPF 3/4 Band pass To be ordered within 112 – 136 MHz 1.5 MHz
BPF 2/4-[BW] Band pass To be ordered within 144 – 175 MHz To be specified as 2, 4 or 6 MHz
BPF 70/4-HX Band pass To be ordered within 380 – 470 MHz To be ordered within 3 – 15 MHz
BPF 900/4 Band pass To be ordered within 820 – 960 MHz Typ. 7 MHz
EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-AR…G is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-ARxG.pdf
