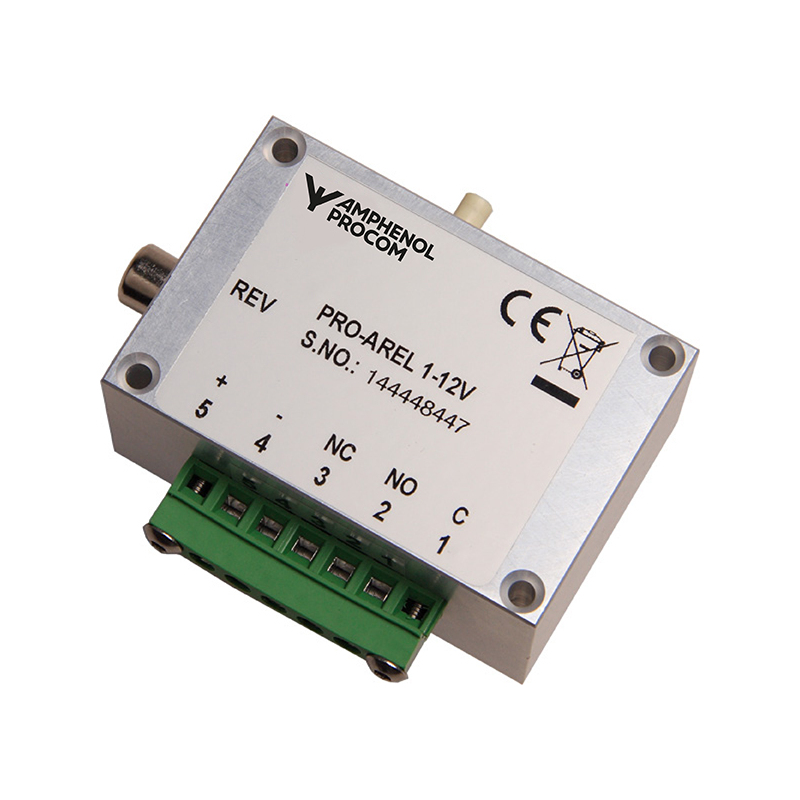

PRO-AREL1-12V

Alarm box used for detecting high VSWR in antenna systems.

Find Out More
Data Sheet
CE Certification

Other Files

PRO-AREL1-12V
Electrical
Power Supply 11 – 14 V
Model PRO-AREL1-12V
Type Alarm box
Current With Alarm 30 mA
Current Consumption 10 mA
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Relay Contact NC/NO AC-DC 1A
Connection(s) Screw terminal and Phono connector
Historic Brand Procom
Dimensions 50 x 41 x 20 mm /
1.97 x 1.61 x 0.79 in.
Weight Approx. 0.11 kg / 0.24 lb.
  • PRO-AREL1-12V is an alarm box used for detecting high VSWR in antenna systems. The PRO-AREL1-12V is connected to a power monitor, e.g. PRO-PM2-2/70 25W, and this will enable you to adjust the power monitor so that the PRO-AREL1-12V gives an alarm signal at e.g. VSWR 2:1 at a certain frequency/power.
  • The alarm drives a latched relay and a light-emitting diode and that mode is active until the reset button is pressed.
  • It is possible to connect an external alarm such as light, loudspeaker etc. (max. 1 A, NC or NO on a contact rail).

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Alarm box used for detecting high VSWR in antenna systems. 210001186

Login required

You need to be logged in into your account to view downloadable documents.

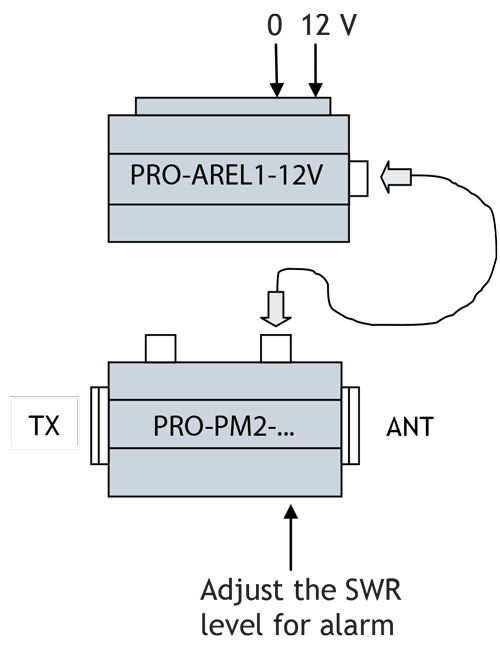

FUNCTIONAL DIAGRAM
PRO AREL1 12V Diagram

  1. Connect PRO-AREL1-12V to PRO-PM2-… to REV ANT and connect
    12 V to PRO-AREL1-12V.
  2. Adjust the trimming potentiometer on PRO-PM2-… to minimum
    (anti-clockwise).
  3. Connect a load to the PRO-PM2-… corresponding to the VSWR
    required, e.g. 25 Ω VSWR 2:1.
  4. Connect the signal of the required frequency and power to
    PRO-PM2-….
  5. If the alarm is lighting, press RESET. If the alarm does not stop,
    adjust the trimming potentiometer on the PRO-PM2-2/70 to minimum and press RESET.
  6. Slowly adjust the trimming potentiometer on the PRO-PM2-…
    clockwise until the alarm starts.
