19 Rack-Mountable High-Performance HF Receiver Multicoupler series with 1 input and 4, 8, 12 or 16 outputs

Find Out More
Data Sheet
CE Certification

Other Files

PRO-ARHP...GS-...
Electrical
Power Supply 198 to 264 V AC, max. 160 mA
Model PRO-ARHP…GS-…
Gain (Input To All Outputs) 1 dB
Frequency 100 kHz – 30 MHz
Gain variance < 2.0 dB
Max. Output Power @ 1 dB Compression (P1dB) ≥ 14 dBm @ 1 MHz
Noise Figure, Amplifier ≤ 5.5 dB @ 10 MHz
Noise Figure, Outputs ≤ 7 dB @ 10 MHz
Output 3. Order Intercept point (OIP3) ≥ 29 dBm @ 1 MHz
Impedance 50 Ω
Output 2. Order Intercept point (OIP2) ≥ 37 dBm @ 1 MHz
Isolation between outputs > 20 dB
Input VSWR < 2.5:1 typ. < 1.5:1
Input-Output Isolation > 35 dB
Output VSWR Max. 1.5:1 typ. < 1.3:1
DC Supply 10.8 to 14.4 V DC, max. 2A
No. of channels 4, 8, 12 or 16
Environmental
Operating temperature range -10 °C to +50 °C
Humidity Max. 85% @ 30 °C
Mechanical
Power Connector 3-terminal IEC60320-1 C14 (male)
Connection(s) N(f) (standard)
BNC(f), TNC(f) or SMA(f) on request
DC Connector 3-pole screw terminal block
Historic Brand Amphenol Procom
Dimensions PRO-ARHP4GS-N and PRO-ARHP8GS :
19″ x 1HU x 261 mm
(482.6 x 43.65 x 261 mm) /
19 x 1.72 x 10.28 in.
PRO-ARHP12GS-N and PRO-ARHP16GS :
19″ x 2HU x 261 mm
(482.6 x 88.1 x 261 mm) /
19 x 3.47 x 10.28 in.
Weight PRO-ARHP4GS-N and PRO-ARHP8GS-N : Approx. 2.8 kg / 6.17 lb.
PRO-ARHP12GS-N and PRO-ARHP16GS-N : Approx. 4.8 kg / 9.70 lb.
  • Multicouplers for the LF, MF and HF band. 100 kHz – 30 MHz.
  • For use where a number of receivers have to share the same antenna.
  • Active wideband receiver multicouplers for the LF, MF and HF bands with 1 input and 4, 8, 12 or 16 outputs.
  • Allows a number of receivers to share the same antenna without interaction and loss of signal.
  • Wide frequency range: Covers 100 kHz – 30 MHz. If only a smaller frequency range is desired, a customer specified preselector can be built into prevent possible interference from strong transmitters outside the frequency band of interest. Procom A/S offer a number of band specific filters intended for preselector use. Please refer to the preselector overview and specify frequency range when ordering.
  • Ultra-high dynamic range amplifier built in to compensate for loss in multicoupler network.
  • The excellent large signal behaviour of the amplifier ensures handling of strong RF signals with very low levels of IM and harmonic distortion.
  • Low amplifier noise figure ensures negligible S/N deterioration of the received and distributed RF signals.
  • High isolation between receiver outputs.
  • Built-in signal limiter to protect amplifier input from signals larger than 10 V pp
  • Built-in DC grounded 100 kHz HP filter to protect amplifier input from strong V LF noise e.g. during thunderstorms.
  • Static discharge protected by Gas Discharge Tube across the input.
  • Operates on 230 V AC or 115 V AC mains supply or 12 V or 24 V DC supply (depending on type, see ordering designations).
  • Galvanically isolated power supply with power backup function.
  • Automatic switching to DC supply if the mains supply fails.
  • ”POWER ON” lamp on front.
  • Mains supply connector: IEC type fitted with noise filter.
  • DC supply connector: Terminal block fitted with noise filter.
  • RF connectors: N-female on all ports (other types on request).
  • 19” rack module housing.
  • Only 1 HU (PRO-ARHP4GS and PRO-ARHP8GS) or 2 HU (PRO-ARHP12GS and PRO-ARHP16GS) (1 height unit = 44.45 mm).

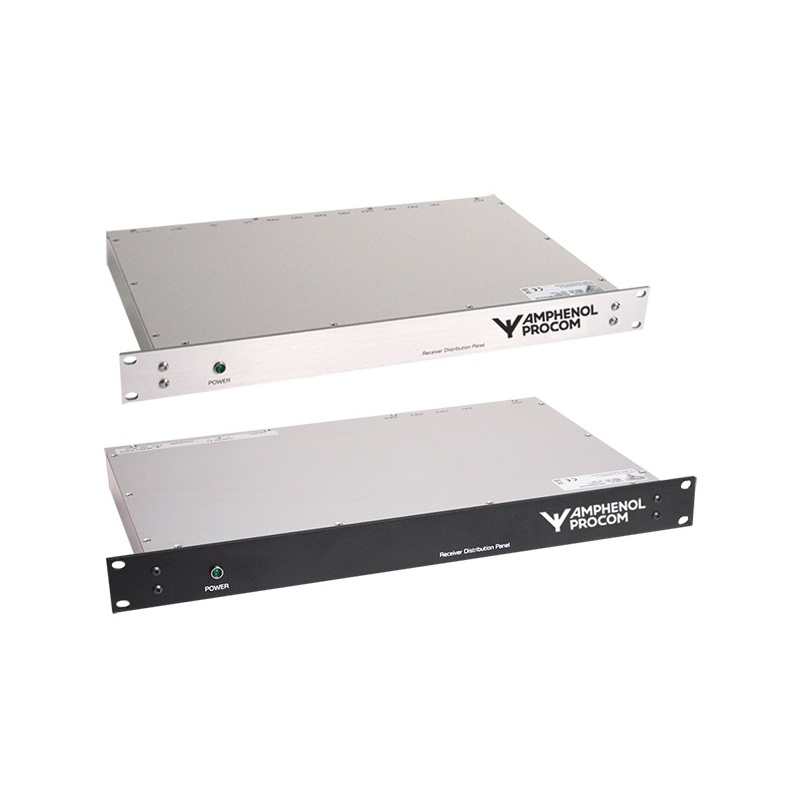

  • Available with black anodized front plate.
  • Please Note:
  • Power cable is not included, must be ordered separately, see Accessories.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
19 Rack-Mountable High-Performance HF Receiver Multicoupler series with 1 input and 4, 8, 12 or 16 outputs PRO-ARHP…GS-…

Login required

You need to be logged in into your account to view downloadable documents.

Ordering designations

Contact for system-specific product no.

Use the guide below to make the name of the PRO-ARHP you would like to buy. Remember to buy the Power cable separately if needed.

ModelFront plateNo. of outputsAC PowerDC PowerAntenna ConnectorRx ConnectorNumber of loadsPreselector filter
 PRO-ARHP Blank = blank **
Black lacquered = B		 4 outputs = 4GS
8 outputs = 8GS
12 outputs = 12GS
16 outputs = 16GS		  230 V AC = 230 V
115 V AC = 115 V		 12 V DC = 12 V
24 V DC = 24 V		 N-female = N
TNC-female = TNC
BNC-female = BNC		 N-female = N
TNC-female = TNC
BNC-female = BNC		 No load = blank *
One 1W load = 1L
Two 1W loads = 2L
Three 1W loads = 3L		 No filter = blank
See tables with
preselectors below
Naming Example
PRO-ARHP B 8GS -230 V /12 V -N /N -1L BPF 1.6-30 C

Naming Example: PRO-ARHPB8GS-230V/12V-N/N-1L BPF 1.6-30 C

   * Terminating unused ports will secure the electrical performances of the RMC.
 ** “Blank” means sign omitted.

Accessories
 ModelProduct No.
Power Cable EU , with Ground 210002646
Power Cable UK , with Ground 210002647
Power Cable US , with Ground 210002648
Model Housing

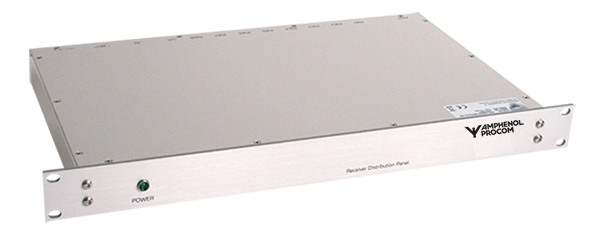

PRO-ARHP4GS-N and PRO-ARHP8GS-N

PRO ARHP GS Alu front

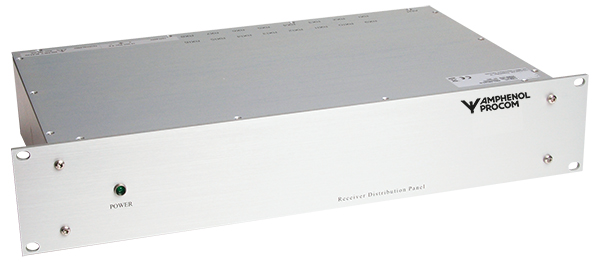

PRO-ARHP12GS-N and PRO-ARHP16GS-N

 PRO ARHP 12 16 GS Alu front

Standard Low-Loss Preselector Filters for PRO-ARHP…GS
TYPE DESIGNATIONFILTER TYPEPASS BAND
BPF 1.6-30 Band pass  1.6 – 30 MHz
HP2 High pass  2.0 – 40 MHz
EU and UK Declaration of Conformity

Hereby  Amphenol Procom declare that the product type PRO-ARHP…GS-… is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-PRO-ARHPxGS.pdf

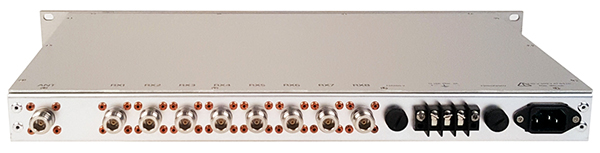

Model Housing – back side

PRO-ARHP8GS-N

PRO AR8G back front
