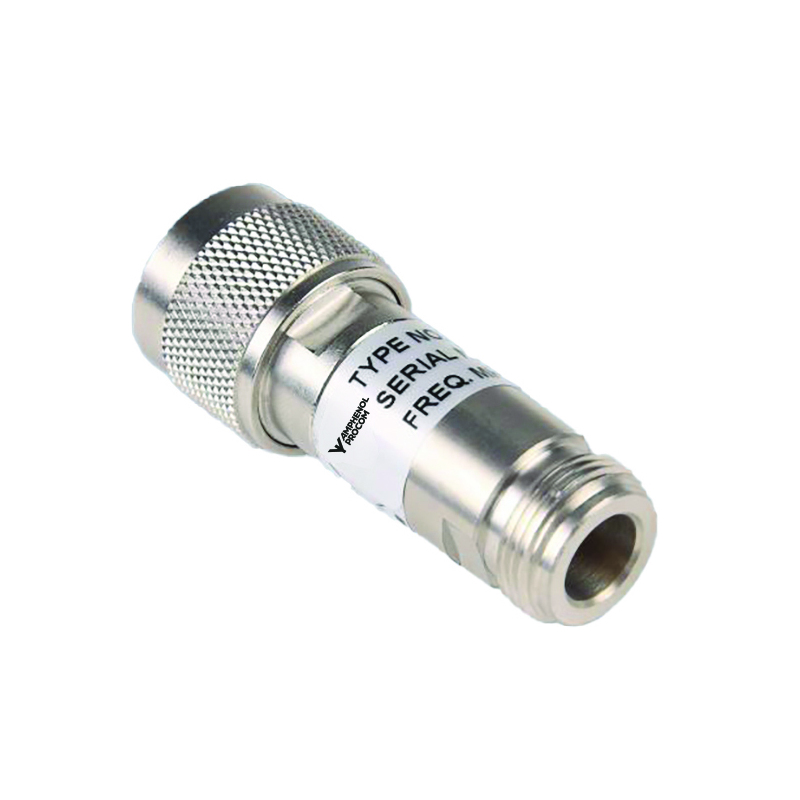

PRO-ATT … dB-2-3-N

Attenuator 2 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-ATT ... dB-2-3-N

Quickly identify the correct ordering code.

PRO-ATT … dB-2-3-N
Electrical
Frequency DC – 3 GHz
Max. Input Power 2 W
Impedance 50 Ω
Attenuation See table below
VSWR < 1.25:1
Environmental
Operating temperature range -35 °C to +70 °C
Mechanical
Connection(s) N(m) to N(f)
Historic Brand Amphenol Procom
Dimensions Approx. 53 x 21 mm / 2.09 x 0.83 in.
Weight Approx. 0.071 kg / 0.16 lb.
  • This 2 W series includes 3 dB, 6 dB, 10 dB, 20 dB and 30 dB attenuators.
  • This series of attenuators has very low VSWR and attenuation flatness and is especially suitable for use with:
  • Coaxial Transmission Lines
  • Power Monitors
  • Watt Meters

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-ATT 3 dB-2-3-N

 200002212 PRO-ATT 3 dB-2-3-N

PRO-ATT 6 dB-2-3-N

 200002213 PRO-ATT 6 dB-2-3-N

PRO-ATT 10 dB-2-3-N

 200002087 PRO-ATT 10 dB-2-3-N

PRO-ATT 20 dB-2-3-N

 200002214 PRO-ATT 20 dB-2-3-N

PRO-ATT 30 dB-2-3-N

 200002215 PRO-ATT 30 dB-2-3-N

Login required

You need to be logged in into your account to view downloadable documents.

Additional Data
MODELATTENUATIONATT. DEVIATION
  DC – 2.0 GHz2.0 – 3.0 GHz
PRO-ATT 3 dB-2-3-N 3 dB +/-0.2 dB +/-0.3 dB
PRO-ATT 6 dB-2-3-N 6 dB +/-0.2 dB +/-0.3 dB
PRO-ATT 10 dB-2-3-N 10 dB +/-0.2 dB +/-0.3 dB
PRO-ATT 20 dB-2-3-N 20 dB +/-0.2 dB +/-0.3 dB
PRO-ATT 30 dB-2-3-N 30 dB +/-0.5 dB +/-1.5 dB
