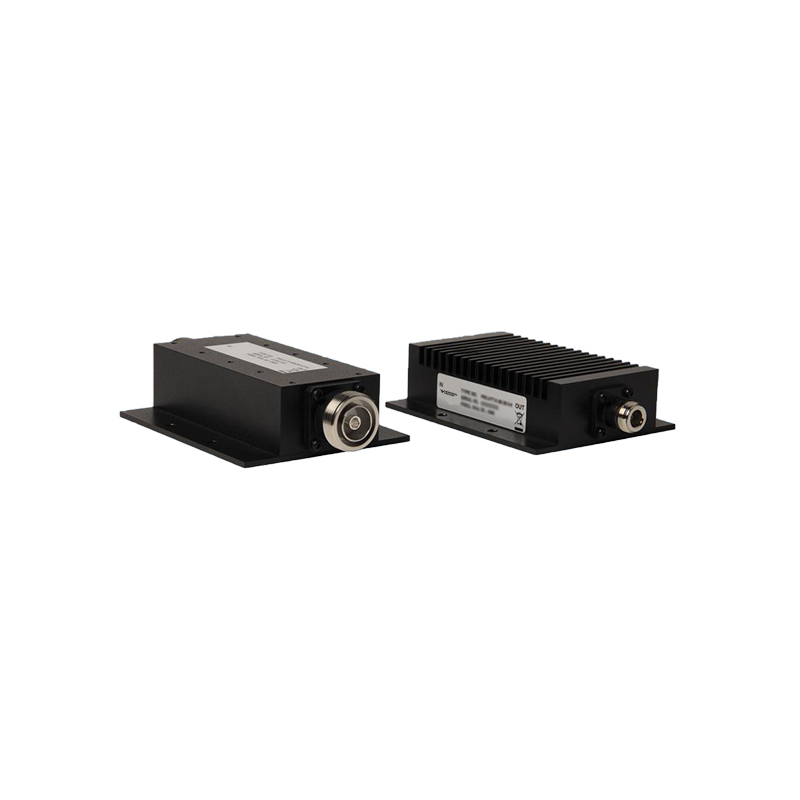

PRO-ATT … dB-25-3

Attenuator 25 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-ATT ... dB-25-3

Quickly identify the correct ordering code.

PRO-ATT … dB-25-3
Electrical
Model PRO-ATT … dB-25-3
Frequency DC – 3 GHz
Max. Input Power 25 W
Impedance 50 Ω
Attenuation See table below
VSWR < 1.25:1
Environmental
Operating temperature range -35 °C to +70 °C
Mechanical
Connection(s) N(f) or 7/16(f)
Historic Brand Amphenol Procom
Dimensions Approx. 120 x 100 x 34 mm /
4.72 x 3.94 x 1.35
Weight Approx. 0.65 kg / 1.43 lb.
Mounting 4 mm dia. (4 holes)
  • This series includes 3 dB, 6 dB, 10 dB, 20 dB and 30 dB attenuators.
  • This series of attenuators has very low VSWR and attenuation flatness and is especially suitable for use with:
  • Coaxial Transmission Lines
  • Power Monitors
  • Watt Meters
  • The attenuators have a finish of black anodization.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-ATT 3 dB-25-3-N(f)

 200001732 PRO-ATT 3 dB-25-3-N(f)

PRO-ATT 6 dB-25-3-N(f)

 200001750 PRO-ATT 6 dB-25-3-N(f)

PRO-ATT 10 dB-25-3-N(f)

 200001751 PRO-ATT 10 dB-25-3-N(f)

PRO-ATT 20 dB-25-3-N(f)

 200001724 PRO-ATT 20 dB-25-3-N(f)

PRO-ATT 30 dB-25-3-N(f)

 200001752 PRO-ATT 30 dB-25-3-N(f)

PRO-ATT 3 dB-25-3-7/16(f)

 200002544 PRO-ATT 3 dB-25-3-7/16(f)

PRO-ATT 6 dB-25-3-7/16(f)

 200002545 PRO-ATT 6 dB-25-3-7/16(f)

PRO-ATT 10 dB-25-3-7/16(f)

 200002541 PRO-ATT 10 dB-25-3-7/16(f)

PRO-ATT 20 dB-25-3-7/16(f)

 200002542 PRO-ATT 20 dB-25-3-7/16(f)

PRO-ATT 30 dB-25-3-7/16(f)

 200002543 PRO-ATT 30 dB-25-3-7/16(f)

Login required

You need to be logged in into your account to view downloadable documents.

Additional Data
MODELATTENUATIONATT. DEVIATION
  DC – 2.0 GHz2.0 – 3.0 GHz
PRO-ATT 3 dB-25-3 3 dB ±0.5 dB ±1.0 dB
PRO-ATT 6 dB-25-3 6 dB ±0.5 dB ±1.0 dB
PRO-ATT 10 dB-25-3 10 dB ±0.75 dB ±1.5 dB
PRO-ATT 20 dB-25-3 20 dB ±0.75 dB ±1.5 dB
PRO-ATT 30 dB-25-3 30 dB ±0.75 dB ±1.5 dB
Mounting Details

All dimensions are given in mm.

Dimension
 AB
PRO-ATT … dB-25-3-N(f) 18.5 mm 157 mm
PRO-ATT … dB-25-3-7/16(f) 21.5 mm 163 mm
