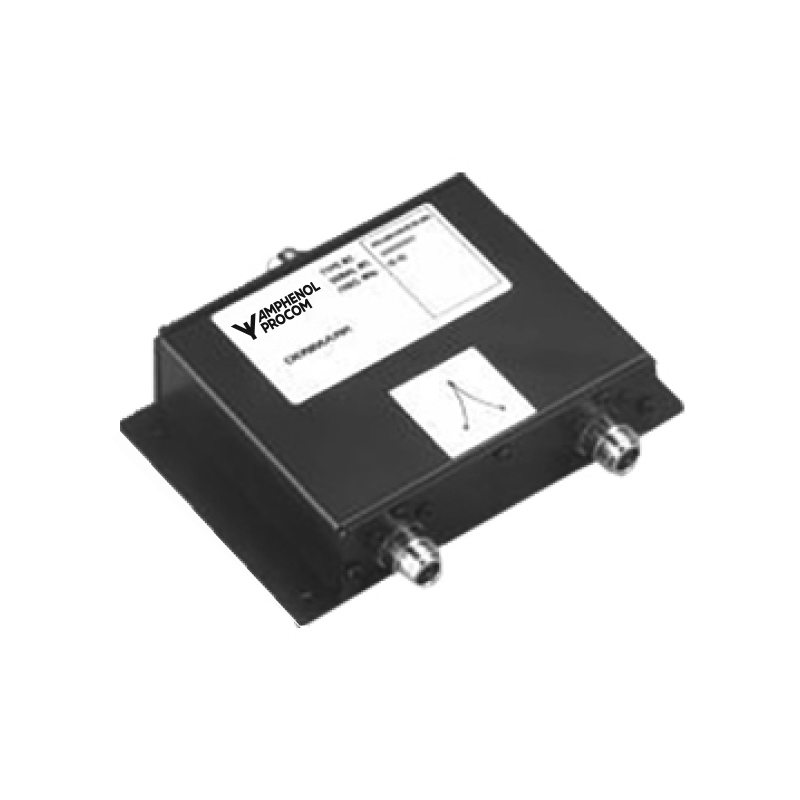

PRO-BBMPHY-150-2-N

Broad Band Power Divider / Combiner

Find Out More
Data Sheet
CE Certification

Other Files

PRO-BBMPHY-150-2-N
Electrical
Model PRO-BBMPHY-150-2-N
Frequency 144 – 175 MHz
Type Cascaded Wilkinson-hybrid
Max. Input Power 30 W when used as a power divider.
15 W per channel when used as a hybrid combiner.
Note : Extra cooling necessary when used as a hybrid combiner
Insertion Loss < 3.6 dB, typ. < 3.4 dB
Impedance 50 Ω
Isolation Tx1 – Tx2 > 24 dB, typ. > 26 dB
Phase Tx1, Tx2 0°
VSWR

 < 1.6:1 all other ports terminated with 50 Ω
Load 30 W load built-in
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Procom
Dimensions 130 (incl. conn.) x 152 x 35 mm /
5.12 (incl. conn.) x 5.98 x 1.38 in.
Weight Approx. 0.4 kg / 0.88 lb.
  • Two antennas connected to the same transmitter or receiver.
  • Broad band power divider for radio systems.
  • Combining two transmitters on the same antenna.
  • Note: The power divider has to be mounted on an extra heat sink when used as a combiner. Max. 15 W per Tx.
  • Combining two signal generators.
  • 30 W load built-in.

TYPICAL RESPONCE CURVE

Model Product No. Add To Quote
Broad Band Power Divider / Combiner 210000287
