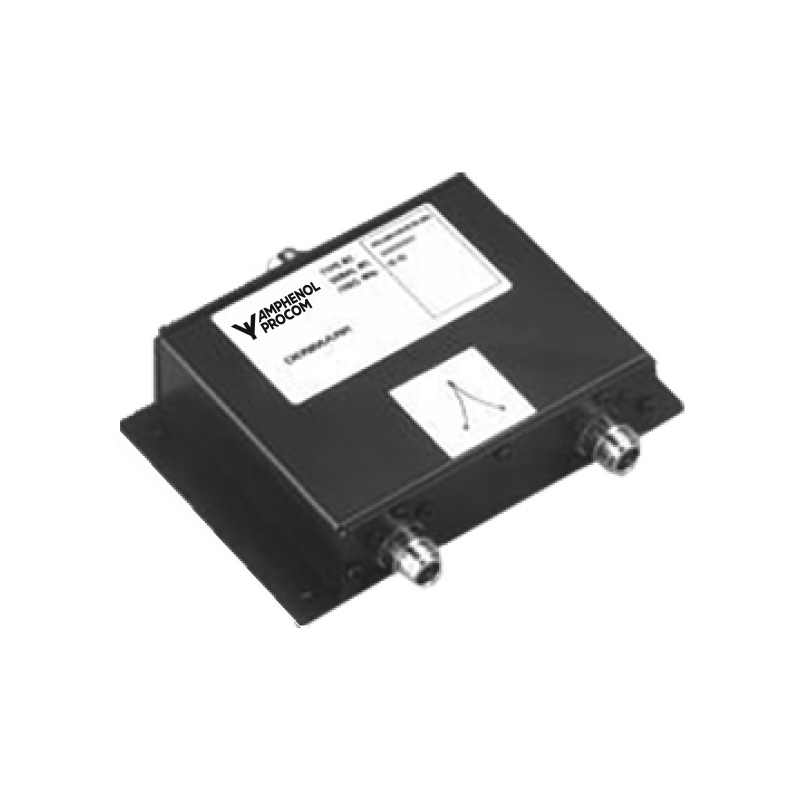

PRO-BBMPHY-450-2-N
Electrical
Model PRO-BBMPHY-450-2-N
Frequency 430 – 470 MHz (other frequencies on request)
Type Cascaded Wilkinson-hybrid
Max. Input Power 30 W when used as a power splitter –
15 W per channel when used as a hybrid combiner.
Note : Extra cooling necessary when used as a hybrid combiner
Insertion Loss < 3.6 dB, typ. < 3.4 dB
Impedance 50 Ω
Isolation Tx1 – Tx2 > 20 dB, typ. > 23 dB
Phase Tx1, Tx2 0°
VSWR < 1.5:1 (typ. < 1.3:1)
Bandwidth 30 MHz min. Can be extended.
Load 30 W load built-in
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Procom
Dimensions 130 (incl. conn.) x 152 x 35 mm /
5.12 (incl. conn.) x 5.98 x 1.38 in.
Weight Approx. 0.4 kg / 0.88 lb.
  • Two antennas connected to the same transmitter or receiver.
  • Broad band power splitter for radio systems.
  • Combining two transmitters on the same antenna.
  • Note: The power splitter has to be mounted on an extra heat sink when used as a combiner. Max. 15 W per Tx.
  • Combining two signal generators.
  • 30 W load built-in.

TYPICAL RESPONSE CURVE
