PRO-BBPHY 2/70-20-10 dB-N

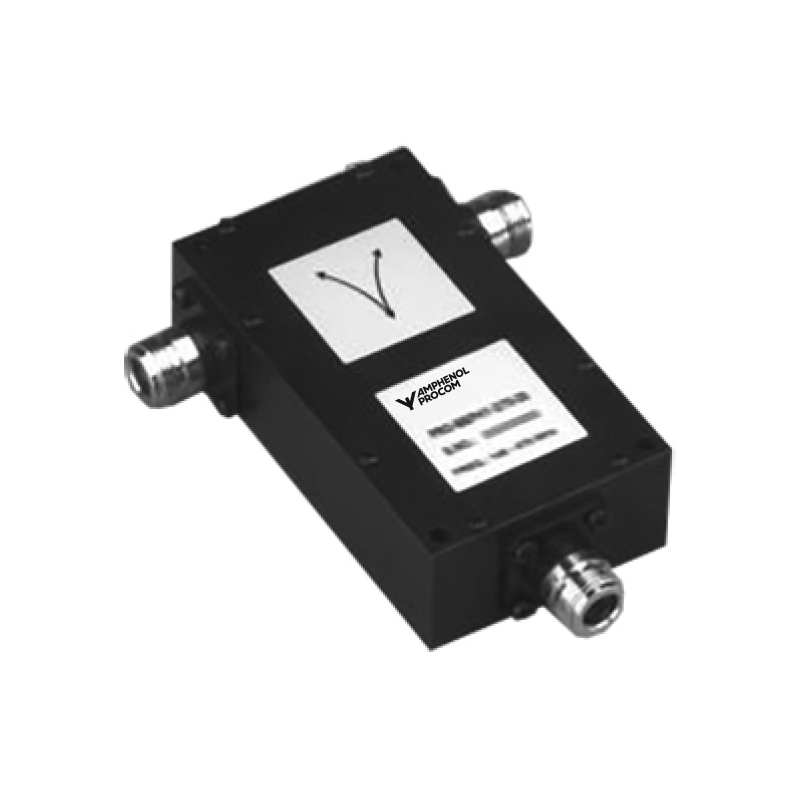

Broad Band Unsymmetrical Power Divider 1:10

Find Out More
Data Sheet
CE Certification

Other Files

PRO-BBPHY 2/70-20-10 dB-N
Electrical
Model PRO-BBPHY 2/70-20-10 dB-N
Frequency 146 – 470 MHz
Type Cascaded Wilkinson-hybrid
Max. Input Power 30 W when used as a power splitter
Insertion Loss High power port : < 3.2 dB typ. 2.4 dB
Low power port : -10 dB ±1 dB (typ. -10 dB ±0.6 dB )
Impedance 50 Ω
Isolation Low-High Port > 14 dB (typ. > 17 dB)
VSWR < 1.5:1 (typ. = 1.3:1 dB) all other ports terminated with 50 Ω
Load 30 W load built-in
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 126 (incl. conn.) x 97.5 (incl. conn.) x 30.3 mm /
4.96 (incl. conn.) x 3.84 (incl. conn.) x 1.19 in.
Weight Approx. 0.4 kg / 0.88 lb.
  • Used where unsymmetrical splitting of the signal is required.
  • Two antennas connected to the same transmitter or receiver where 10% of the signal either comes from or is transmitted to one of the antennas.
  • Broad band power splitter for radio systems. Max. 30 W.
  • 30 W load built-in.

TYPICAL RESPONSE CURVE

MOUNTING DETAILS

Model Product No. Add To Quote
Broad Band Unsymmetrical Power Divider 1:10 210000281
