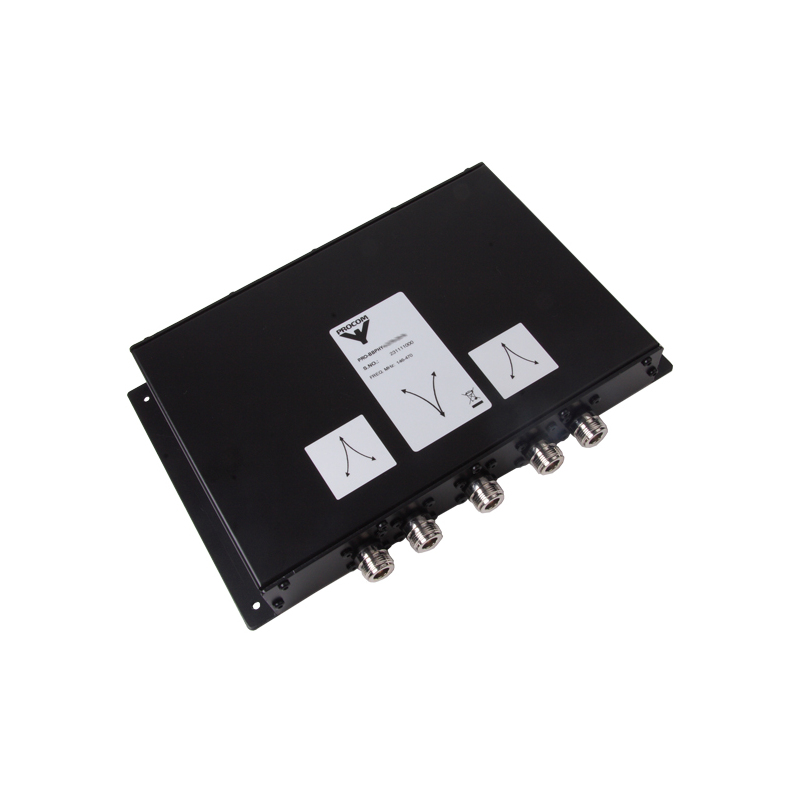

PRO-BBPHY 4/146-470-20-N

Broad Band Power Divider 1:4

Find Out More
Data Sheet
CE Certification

Other Files

PRO-BBPHY 4/146-470-20-N
Electrical
Model PRO-BBPHY 4/146-470-20-N
Frequency 146 – 470 MHz
Type Cascaded Wilkinson-hybrid
Max. Input Power 30 W when used as a power splitter
15 W per channel when used as a hybrid combiner.
Note: Extra cooling necessary when used as a hybrid combiner
Insertion Loss < 8.5 dB
Impedance 50 Ω
Isolation > 11 dB, 146 – 220 MHz,
> 18 dB, 220 – 470 MHz
VSWR < 1.6:1 all other ports terminated with 50 Ω
Load 30 W load built-in
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP52
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 260 x 178 (incl. conn.) x 37 mm /
10.24 x 7.01 (incl. conn.) x 1.46 in.
Weight Approx. 0.8 kg / 1.76 lb.
Mounting ø4 mm (4 holes) / ø0.16 in.
  • Four antennas connected to the same transmitter or receiver.
  • Broad band power splitter for radio systems.
  • Combining four transmitters on the same antenna.
  • Note: The power splitter has to be mounted on an extra heat sink when used as a combiner. Max. 15 W per Tx.
  • Built-in 30 W load.

MOUNTING DETAILS

TYPICAL RESPONSE CURVE

Model Product No. Add To Quote
Broad Band Power Divider 1:4 210000470
